SOLIS Comfort Line - Manual (Page 8)

14 15
Diagram
Warning: installation must be carried out by a qualified electrician.
1. Drill two holes 6 mm in diameter 94.7 mm apart (see picture 2). Insert rawlplugs into the holes and
fix the hanger to the bottom hole with a screw. Then hang the bracket up and secure with a screw
in the top hole.
2. Remove front cover (5), and take out the panel (2) (see picture 3).
3. Electrical connection:
Connection to the mains: attach the mains connection to the connector strip (2) and clamp it down
with a wire clamp (3) (see picture 4).
When flush-mounted: open up the base as intended (1) and connect power supply (230/240V) to
the connector strip (2) (see picture 4).
4. Check the installation diagram and make sure the panel and front cover are secure.
5. Turn on power and master switch.
Pic. 2
1. Rawlplug
2. Screw
3. Cover panel
4. Hanger
5. Screw
Pic. 3
1. Screw 1
2. Panel
3. Cover panel
4. Screw 2
5. Front cover
Pic. 4
1. Wire entry opening
2. Fastener
3. Cable clamp
How to use
Switch on the power and remove the dryer from the bracket. The dryer will work when the power
button (2) is pushed in. Move heat setting button (1) up or down to alter the heat setting.
Specification
Voltage: 230/240V - 50Hz.
Power: 1’200W max.
Shock protection:
INSTRUCTION MANUAL
Thank you very much purchasing our product, which will bring convenience and pleasure
to you in the future.
This wall mounted hair dryer focuses on safety, convenience and power saving with a modern streamline
shape. With its smart combination of style and the latest technology, it is the ideal choice for hair drying
at home or at a hotel.
Features
1. Master switch allowing the unit to be completely switched off when not in use.
2. Two heat settings
3. Turn the unit on and off with ease by pushing in or releasing the power switch.

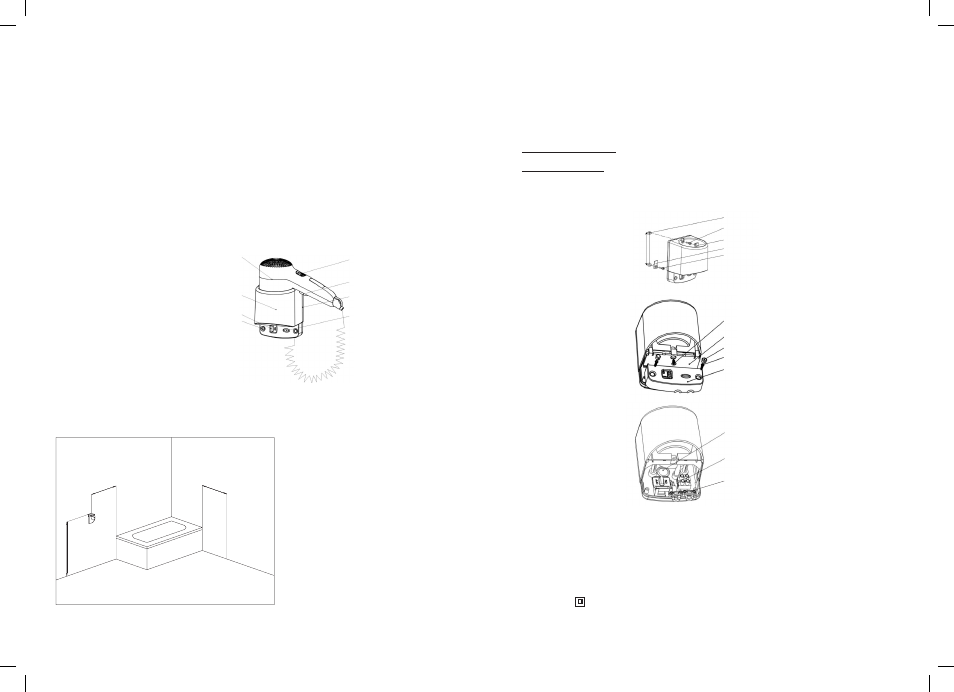

Components
Pic. 1
1. Heat setting button
2. Power button
3. Base
4. Indicator
5. Rubber stopper
6. Master switch
7. Bracket
8. Hair dryer
Installation
Warning: do not install this unit above a shower basin or near any bathroom fittings. Check that your
installation matches the following diagram.
1
2
3
4
8
7
6
5 1
2
3
4
5
1
2
3
4
5
9
4
,7 m
m
Pic. 1
Pic. 3
Pic. 2
min. 6
0 cm
min. 6
0 cm
ca
. 1
3
0 c
m
1
2
3
Pic. 4
