12-Strand Class II Tuck-Bury Eye Splice Modified For HMPE
S A M S O N S P L I C I N G I N S T R U C T I O N S
3 D
3 C

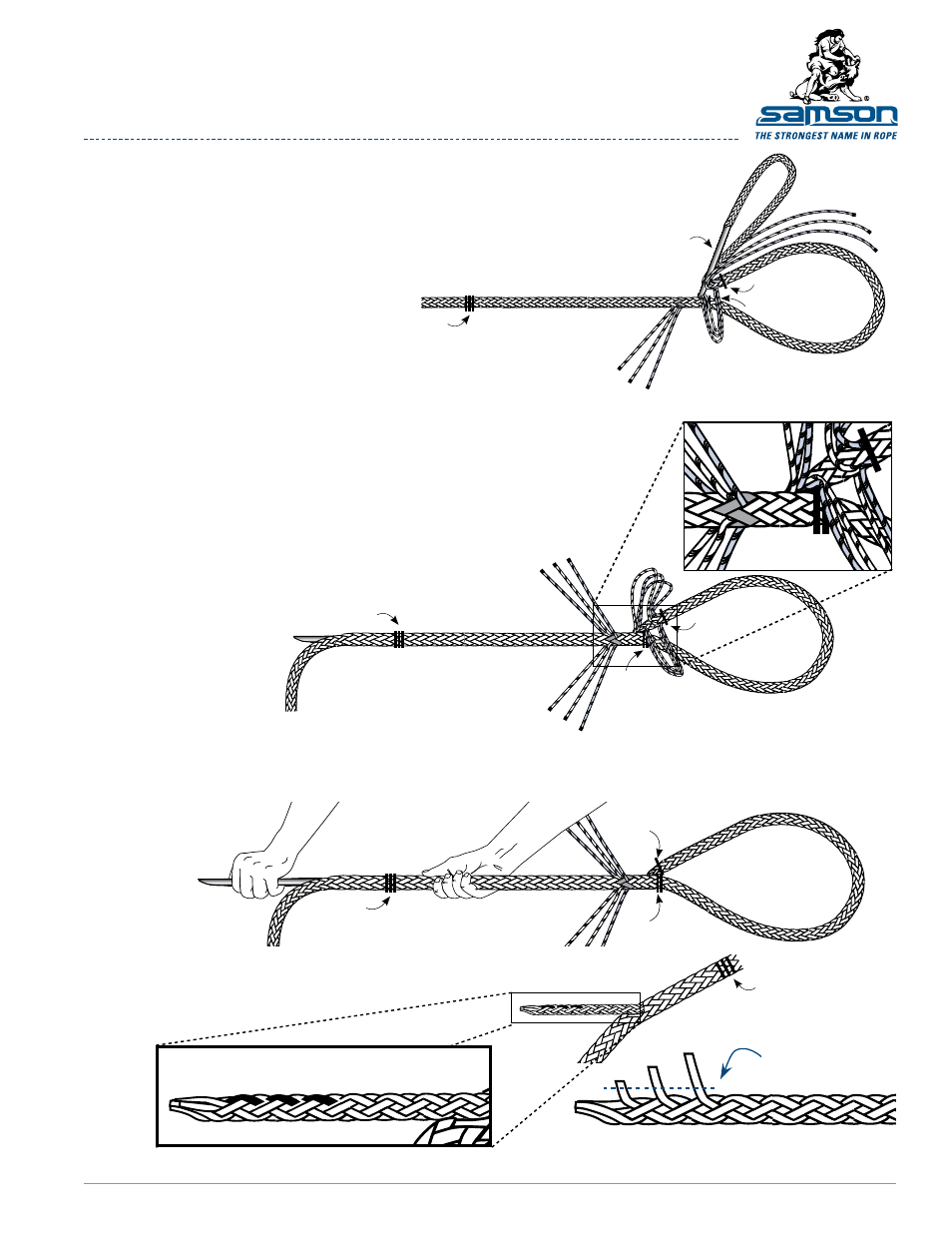

Attach a fid to the end of the
tapered tail and bury it from
the entry point through the
rope to exit beyond Mark 3.
Leave the tail exposed.
The 3 remaining strands are now routed from the entry point at Mark 2
to the exit point. Each strand is routed separately, entering at the entry
point and exiting at its own exit point. Do not pull the strands tight yet.
Leave slack at the entry point.
Now that all 6 strands are routed and the tail is buried, pull each of the
strands to remove any slack. Make sure the rope is smooth and tight
at the entry point.
z
z
s
s
z
s
z
z
s
s
z
s
mark 1
mark 2
mark 3
fid
mark 1
mark 2
mark 3
Burying the tail
routing last 3 strands
Pull out marked
strands and cut off Mark 3 consecutive strands
3 E
At Mark 3, pull the tail out until Marks 1 and 2 meet. Pull any
slack out of the 6 strands that are routed. Pull out the tail and
mark 3 consecutive strands as shown. Pull out all 3 and cut.
mark 1
mark 2
mark 3
mark 3
tapering tail
