12 a, 12 b – Samson 12-STRAND Class II End-for-End Splice Modified for Dirty, Used Rope User Manual
Page 4
PAGE 4 OF 4
SamsonRope.com
| Tel
+1.360.384.4669
12-Strand Class II End-for-End Splice Modified for Dirty, Used Rope
S A M S O N S P L I C I N G I N S T R U C T I O N S
DOCUMENT 12Strand_C2_End_For_End_Dirty_Rope.pdf
© 2013 Samson Rope Technologies, Inc. All rights reserved.
S/WD #108489 5/2013
11
step
Working towards the crossover, stitch
twine back and forth through splice until
a minimum of 3 complete stitches have
been made on each side of crossover.
From Mark 2 at crossover, count 8
picks in either direction and insert
stitching twine.
12
A
Tie an overhand knot in each end
of the twine, as close to its exit
point as possible.
12
B
Insert tail of stitching twine at exact
location where twine emerges.
Using needle or small fid, pull (or
push) through rope at a slight angle.
Pull hard on the end of the twine so
that the knot disappears inside the
rope. Trim off the remaining twine
close to the rope. Repeat on other
end of the twine.

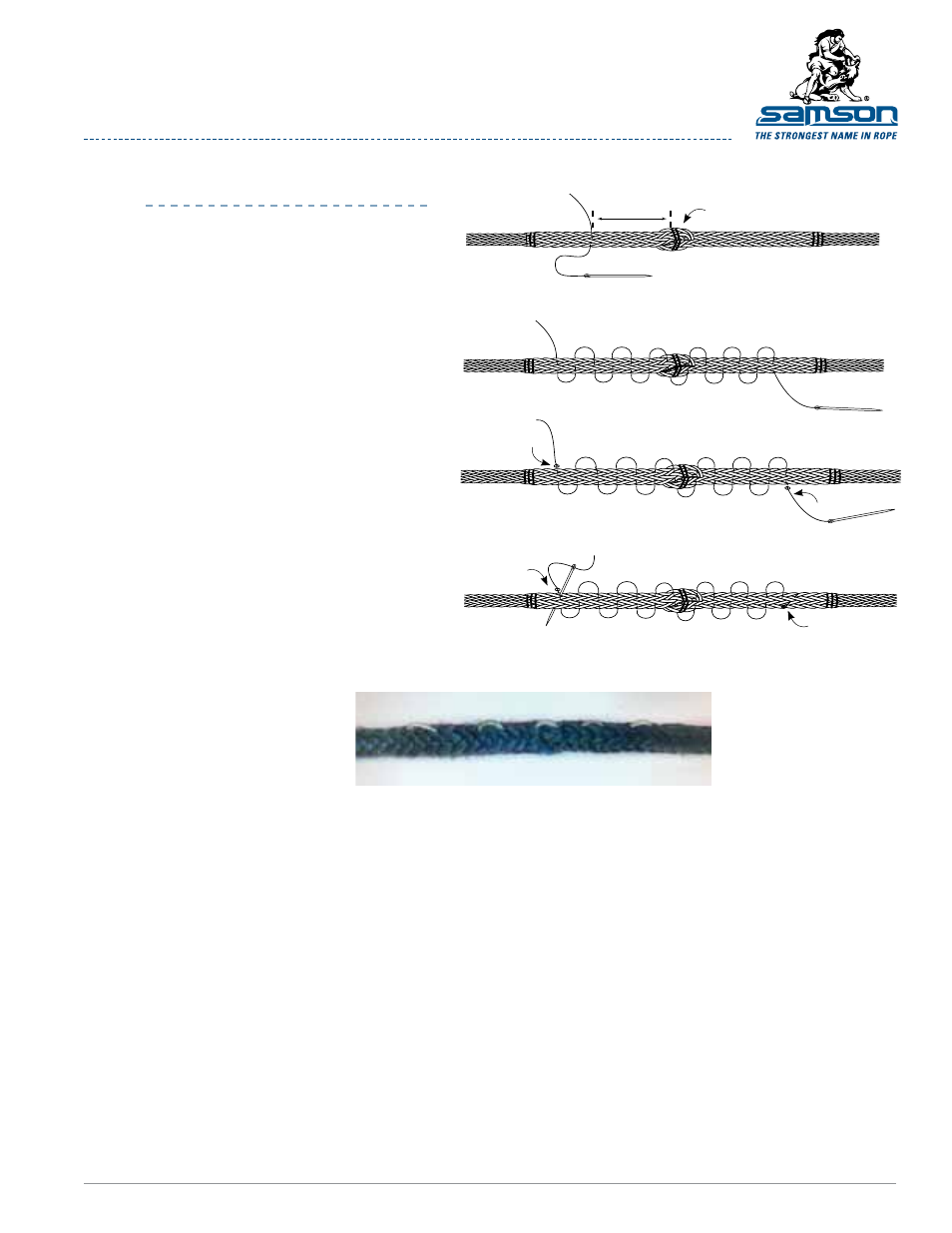

l o C k S t i t C h i n g p R o C e d U R e
8 picks
crossover
knot
knot
knot
mark 2
knot
12
step
