12-Strand Eye-and-Eye Tail Splice
S A M S O N S P L I C I N G I N S T R U C T I O N S
© 2012 Samson Rope Technologies, Inc. All rights reserved. S/WD #108294 7/2012
S t e p 4
After completing Step 3, rotate spliced part of rope 90° and reinsert
end A into spliced area in the same fashion as in Steps 1, 2 and 3.
The splice will now be stitched on 2 planes perpendicular to each
other. Make sure you do not pull the stitching too tight.
S t e p 5
After stitching at least 3 complete stitches as in Step 3, extract both
ends of the twine together through the same opening in the braid.
Tie them together with a square knot and reinsert back into braid.
For double braids, re-insert the knot between the cover and core.
B
A
A
B
1 2 3
A
B
1 2 3
A
B

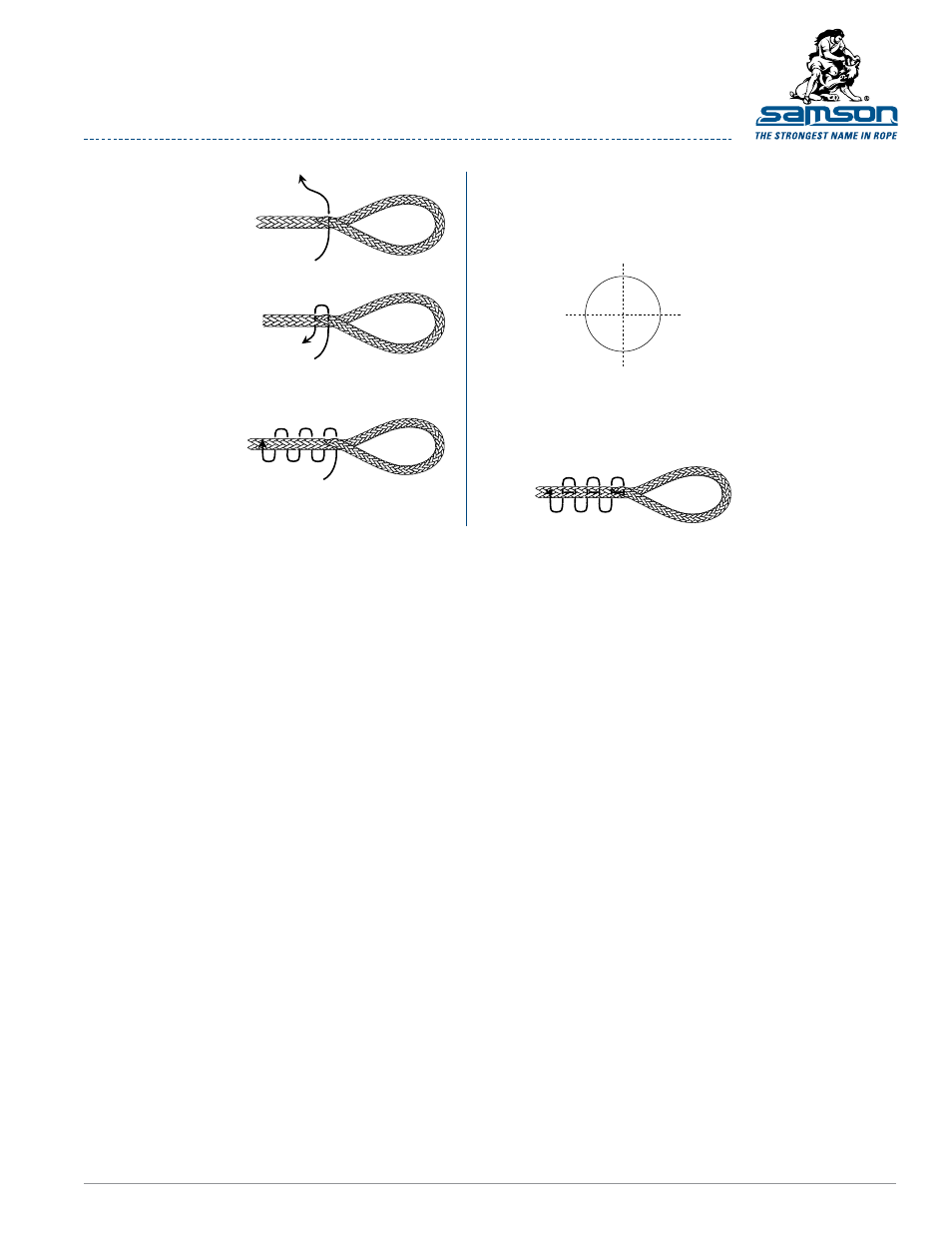

S t e p 1
Pass stitching twine through
spliced area near throat of
eye as shown.
S t e p 2
Reinsert twine through the
rope. The twine should
cover 2 strands from the
exit point. Pull the twine
snug, but not tight.
S t e p 3
Continue to reinsert as
shown until you have at
least 3 complete stitches
on each side of the rope.
Each stitch should cross
over 2 strands in the rope.
