Qmark Ceiling Fan Accessories - Manual (Page 2)

1. Place three guard bottom sections on flat surface
(floor) and connect together in 3 /
4
circle using
enclosed 1 1 /
8
” bolts, washers, lockwashers and 5 /
16
”
nuts. (See Figure 3)
Installation
3. With three sections assembled, place 1 /
2
of guard
clamp brace on top section and bolt to top of guard.
(See Figure 5)

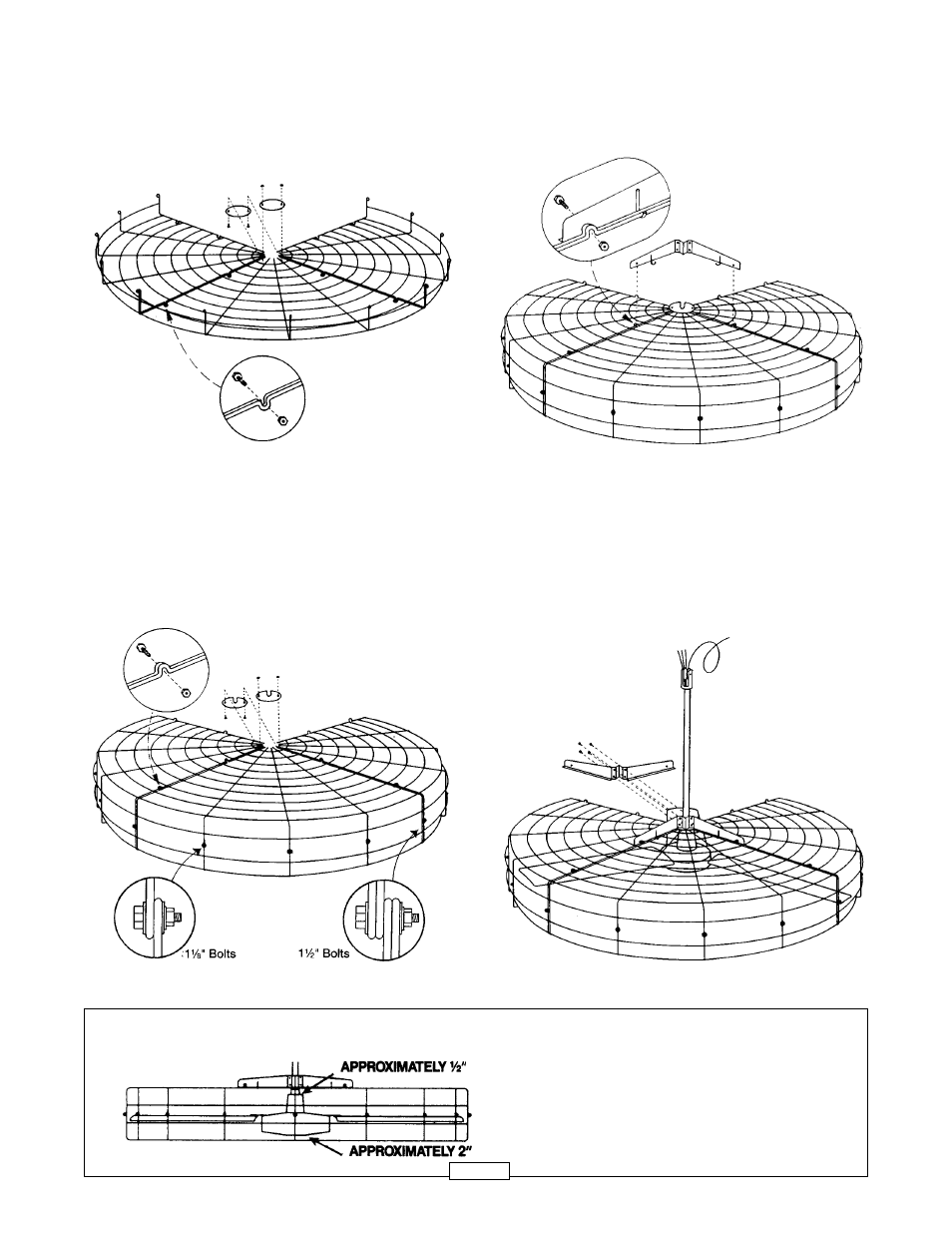

Figure 3 - Assemble Bottom Section Figure 5 - Assemble Clamp Brace
2. Place each of three guard top sections on top of
matching bottom and bolt together using 1 1 /
8
” and
1 1 /
2
” bolts, washers, lockwashers and 5 /
16
” nuts. (At
this time do not bolt the 2 top bolts closest to the
center of the fan guard.)
(See Figure 4)
Figure 4 - Assemble Top Section Figure 6 - Install Guard to Fan
4. Insert completely assembled fan with blades
attached into guard and attach steel brace to fan
downrod, leaving
1 /
2
” between top of canopy and
guard and at least 2” from bottow of motor. Attach
second half of guard clamp to the fan downrod.
(See Figure 6)
LEAVE 1 /
2
” OF SPACE BETWEEN TOP OF
CANOPY AND GUARD AND AT LEAST 2”
FROM BOTTOM OF MOTOR. MAKE SURE
ALL HARDWARE IS SECURE TO PREVENT
GUARD/CANOPY FROM TOUCHING.
IMPORTANT!
2
