Pro-Tools HB-302 One Shot - Manual (Page 4)

HB-302 BENDER
DIE INSTALLATION
813-986-9000 PAGE 4

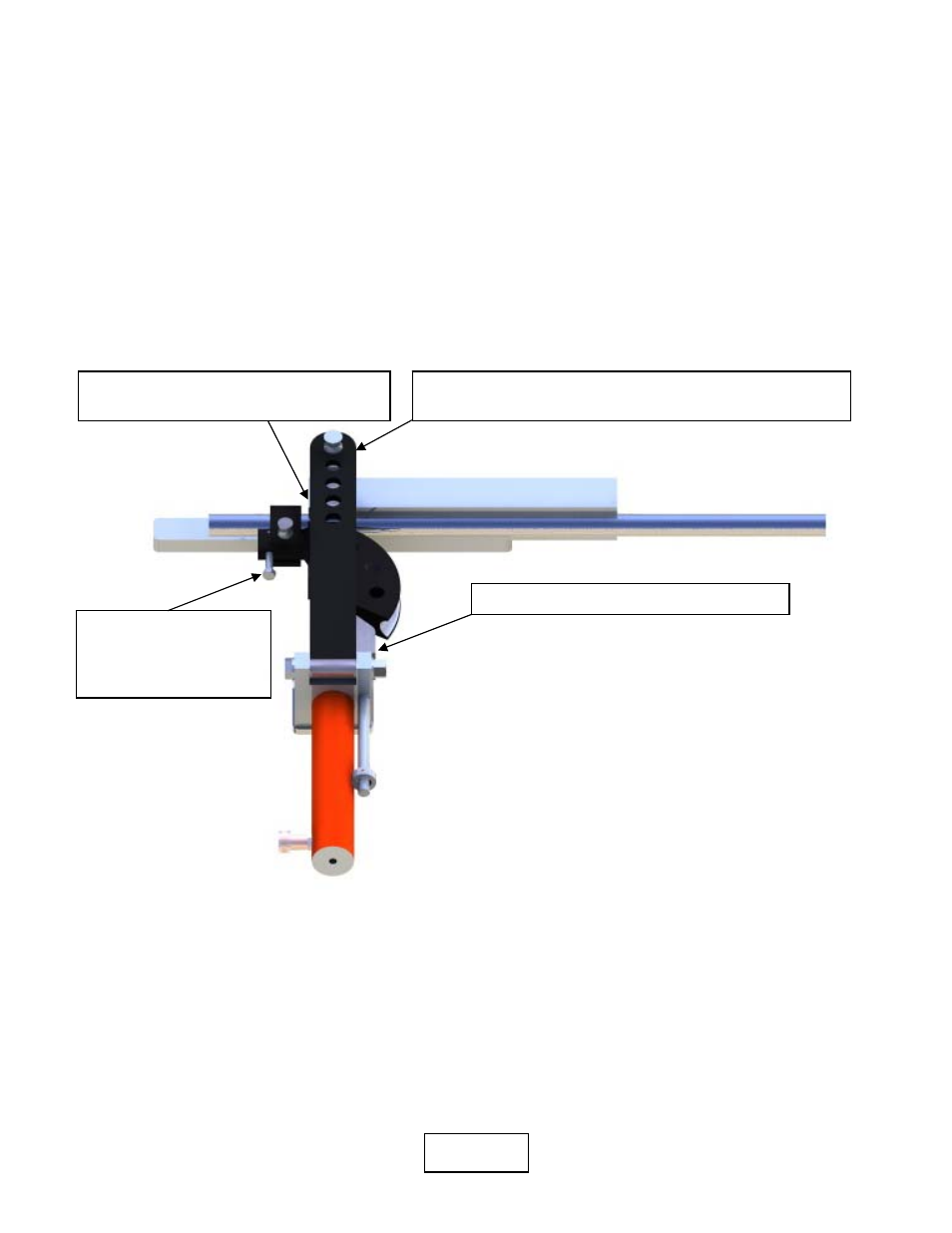

STEP 2
LINE UP BOTH EDGES
OF DIE AND FOLLOW BAR AS SHOWN. INSTALL ROLLER AS CLOSE TO BACK OF FOLLOW BAR
AS POSSIBLE WITH RAM RETRACTED.
SNUG BOLT AGAINST
TUBING (TAKE CARE
NOT TO OVER-TIGHEN
AND DENT TUBING).
FOLLOW BAR
MAKE SURE RAM IS FULLY RETACTED.
STARTING POSITION FOR BENDER
PRO-TOOLS
