HB-302 BENDER
DIE INSTALLATION
813-986-9000 PAGE 3
STEP 1
INSTALL DIE IN COUPLING AND INSERT PIN THOUGH BOTH. (NOTE) THIS IS
THE ONLY PIVOT AND ALL OF THE FORCE IS EXERTED THERE. THIS POINT
MUST BE WELL LUBRICATED AT ALL TIMES. BE SURE TO THOROUGHLY
GREASE PIN & CONNECTION. WE RECOMMEND “ALL PURPOSE WHEEL
BEARING GREASE”.

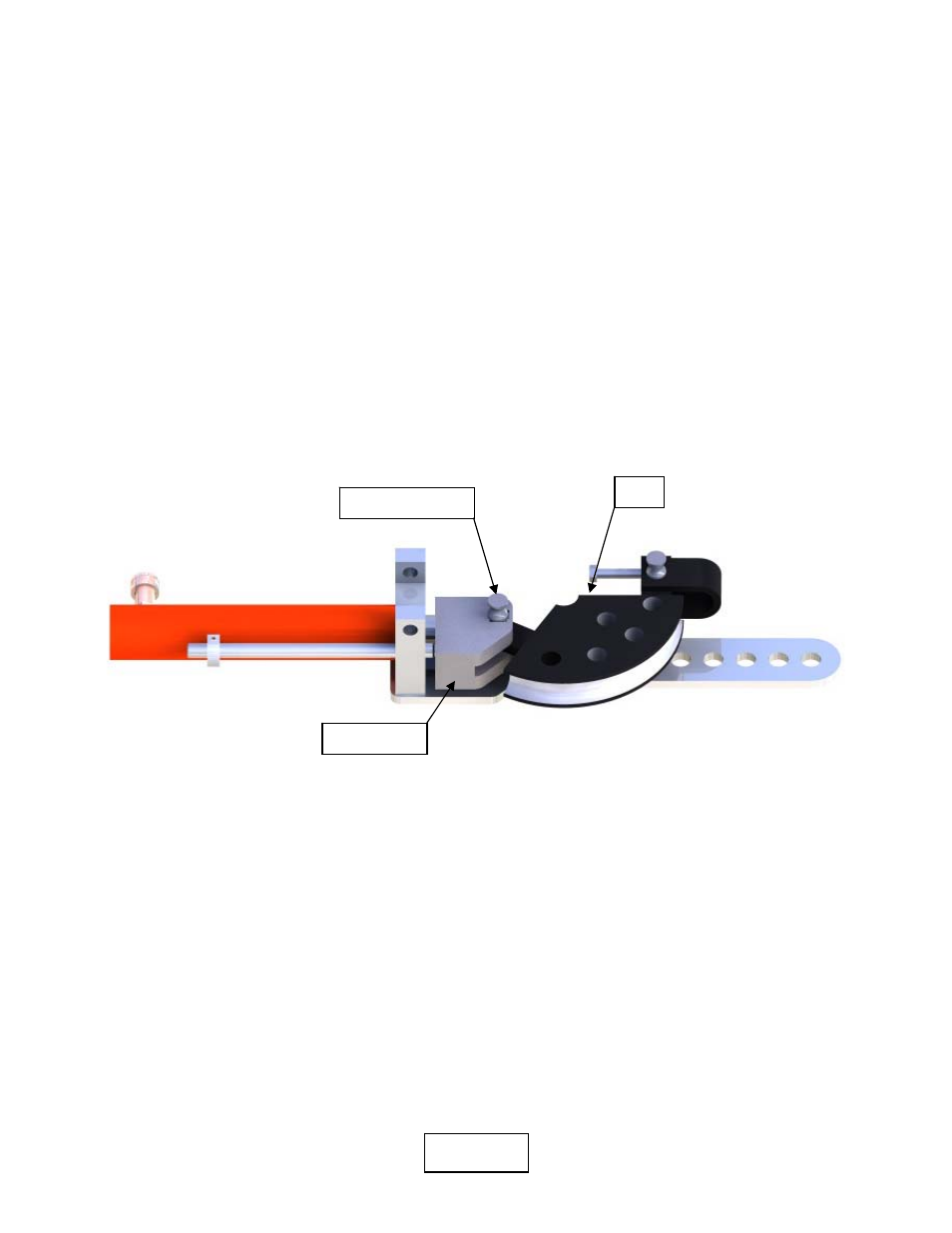

INSTALL DIE AS SHOWN ABOVE
PLEASE NOTE: THIS ILLUSTRATION IS FOR DIRECTION PURPOSES AND MAY NOTE
BE EXACTLY LIKE THE ACTUAL BENDER.
COUPLING
COUPLING PIN
DIE
