English

Owner’

s manual

NOTE
When you detach the power supply connector, please pull it out after release the lock part with a

minus driver etc.

(3) Connecting the Accessories
① Connection to the external amplifier

The external amplifier can be connected unless the MCP (Multiple Channel Processor) is

connected. For detailed information, refer to the instruction manual of the MCP.

② Connection to the CCD camera for vehicle

The CCD camera for vehicle can be connected to the system expansion terminal on the main

unit.

For detailed information, refer to the instruction sheet or manual for the CCD camera.
③ If the specified lead of the cellular phone is connected to the phone mute lead of the source unit,

the audio mute is available when the cellular telephone is used.

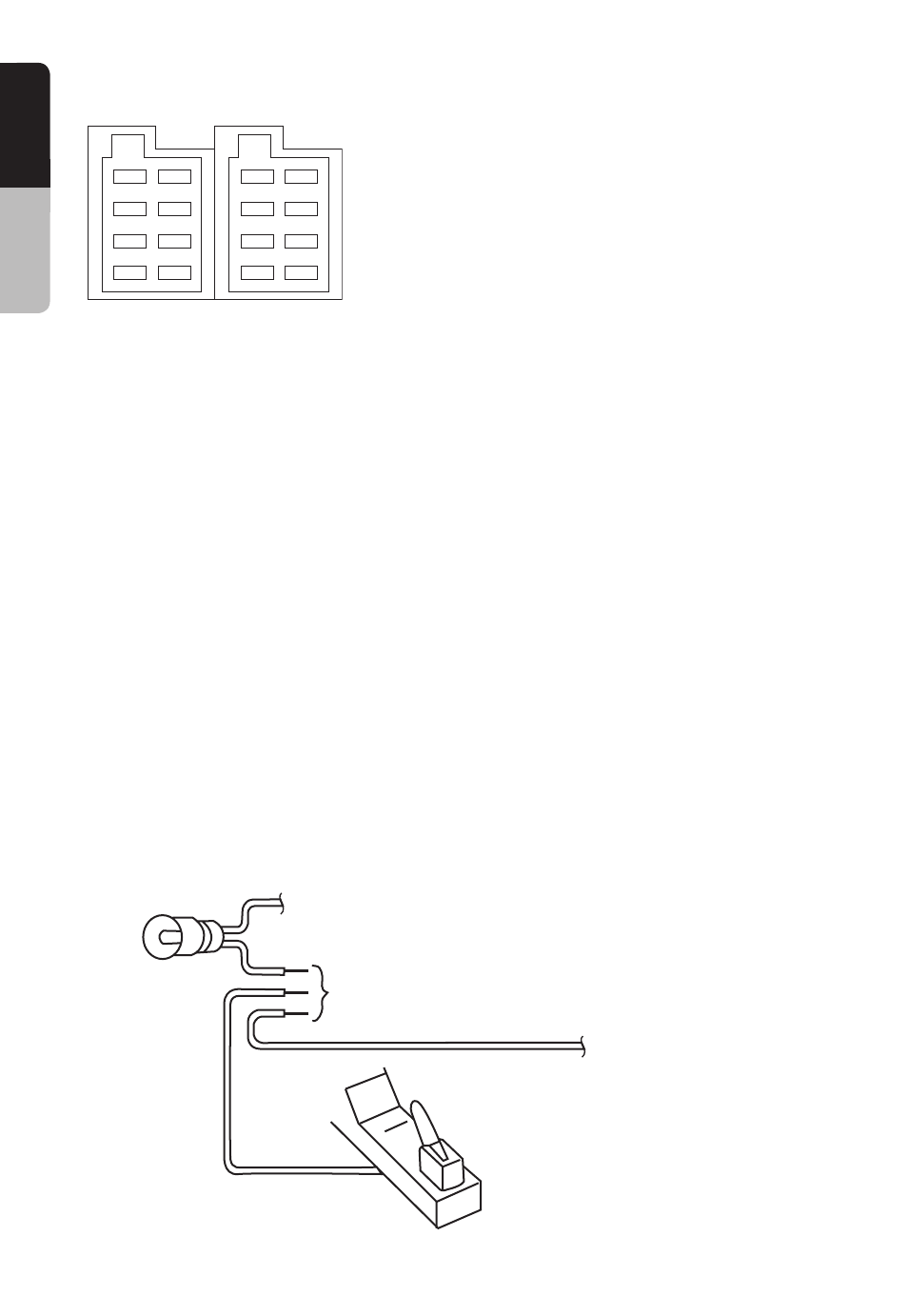

(4) Connecting the parking brake lead

Connect the lead to parking brake lamp earth in the meter panel.

※

Connecting the parking brake lead to lamp earth allows you to watch VTR/DVD video when the

parking brake is engaged.

※

When the parking brake lead is not connected, the monitor will stay off.

Parking brake lamp

(+)Lead to battery

(-)Cord parking

brake signal lead

Connect these three leads

Parking brake lead

(Bright green)

Parking brake
