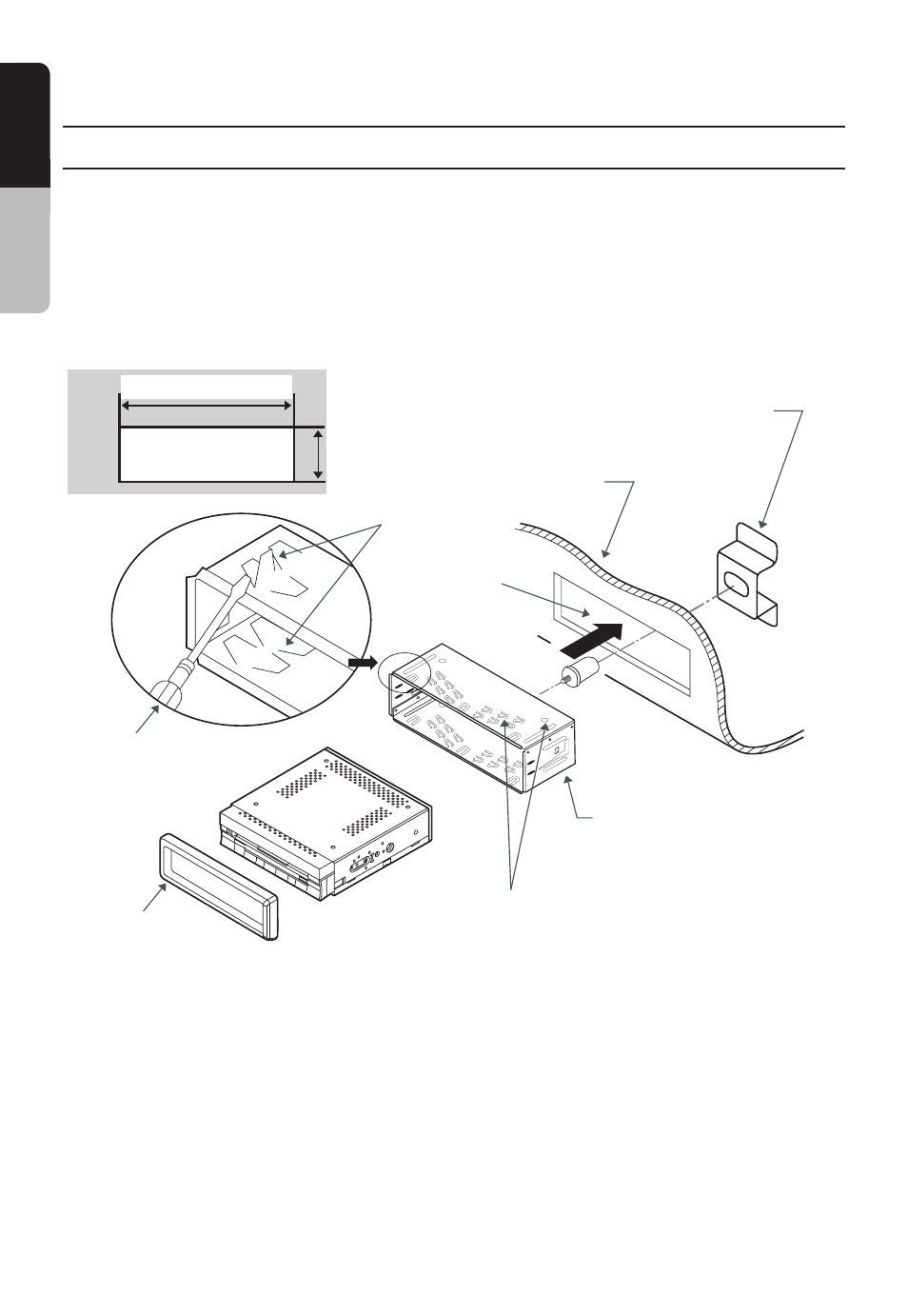

11-2 Main Unit Installation (Universal Mount)
(1) Place the universal mounting bracket into the instrument panel, use a screwdriver to bend each
stopper of the universal mounting bracket inward, then secure the stopper.
(2) Wire as shown in 11-6.
(3) Insert the main unit into the universal mounting bracket until it locks.
(4) Mount the outer escutcheon so that all the hooks are locked.
•
Console opening dinensions
※
Some car models require special mounting kits for proper installation. Consult your Clarion
dealer for details.
※
Fasten the front stopper securely to prevent the main unit from coming loose.
Screw Driver
Hole
Instrument Panel
Rear lastening hole (of vehicle)
Outer escutcheon
Stopper
Unviersal Mounting
Bracket
Stopper
183mm
53mm Hole
