4-Hexagonal screw
(M5 x 8)
Centre Panel
(Note1)
Note 2
Main
Unit
Mounting bracket ★
(1 pair for the left and right sides)

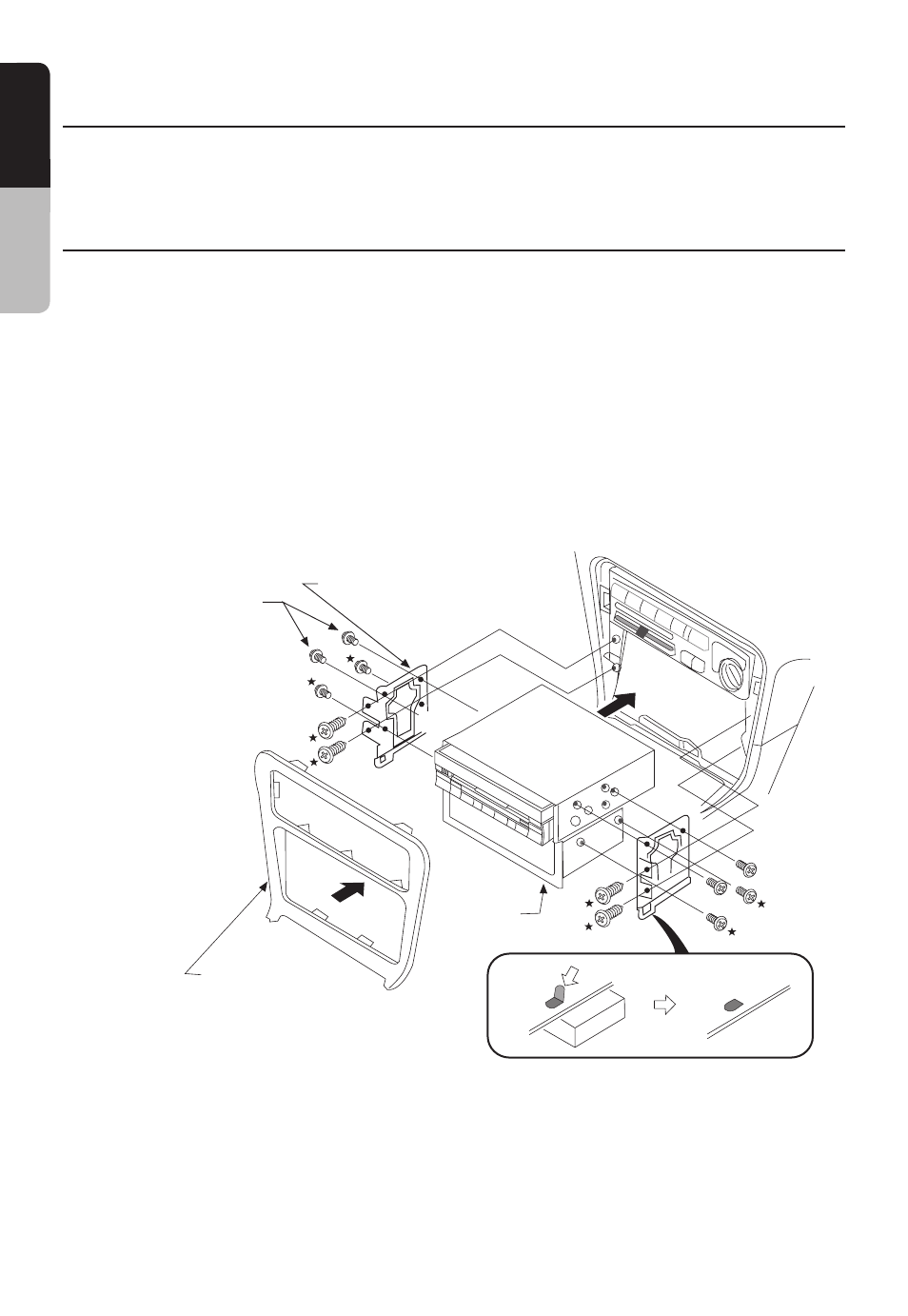

11-4 Main Unit Installation (Fixed Mount)
(TOyOTA, NISSAN and other ISO/DIN
equipped vehicles)
※
: The screws with this mark are enclosed in this set.
★
: The parts and screws with this mark are used to install radio or included in the installation kit.
Note 1 : In some cases, the centre panel may require some modification (trimming, filling, etc.).
Note 2 : If a hook on the installation bracket interferes with the unit, bend and flatten it with a nipper
or a similar tool.
This unit is designed for fixed installation in the dashboard.
If the vehicle is equipped with a factory-installed radio, install the main unit with the parts and
screws marked (*).
If the vehicle is not equipped with a factory-installed radio, obtain an installation kit to install the
main unit in the following procedure.
(1) Bend all of side stoppers with a nipper.
(2) Secure the mounting brackets to the chassis as shown in the follow figure. Holes are pre-tapped
for TOYOTA and NISSAN vehicles; modification, such as drilling new holes, of the mounting
brackets may be required for other models.
(3) Wire as shown in chapter 11-6.
(4) Secure the unit in the dashboard, and then reassemble the dashboard and the centre panel.
