ASSEMBLY INSTRUCTIONS
#4 No.10-24UNC x10 Screw(X2)
#5 ø 5 Lock Washer(X2)
#6 ø 5 Washer(X2)
7
8
L1 L2
G
Front view
L2
L2
L1
L1
M

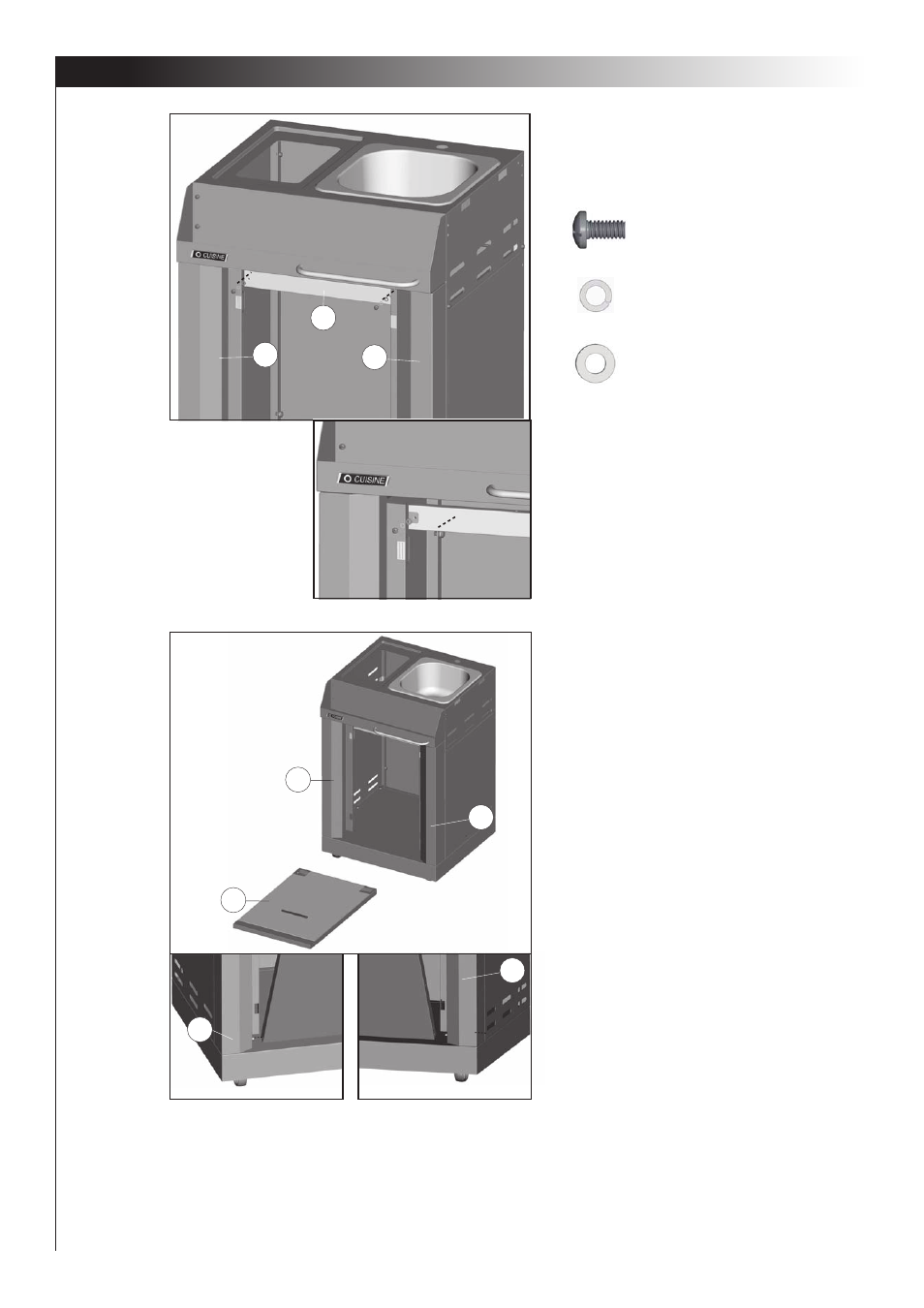

Attach the front brace (G) to the left and right pillars
(L1 & L2).
TIP: One person should align the left side, while the
second person assembles the right side.
a. Locate the door anchor pins on both the left
and right pillars (L1 & L2).
b. Locate the holes on the bottom of the door (M).
Insert the door anchor pins into the door.
Tip: push in on the door anchor pin with
something solid so that the door can slide
into place.
