6
ASSEMBLY INSTRUCTIONS
#4 No.10-24UNC x10 Screw(X6)
#5 ø 5 Lock Washer(X6)
#6 ø 5 Washer(X6)
A3
5
6
E1
E2
Underside of the main cart frame.
I
K
Back view

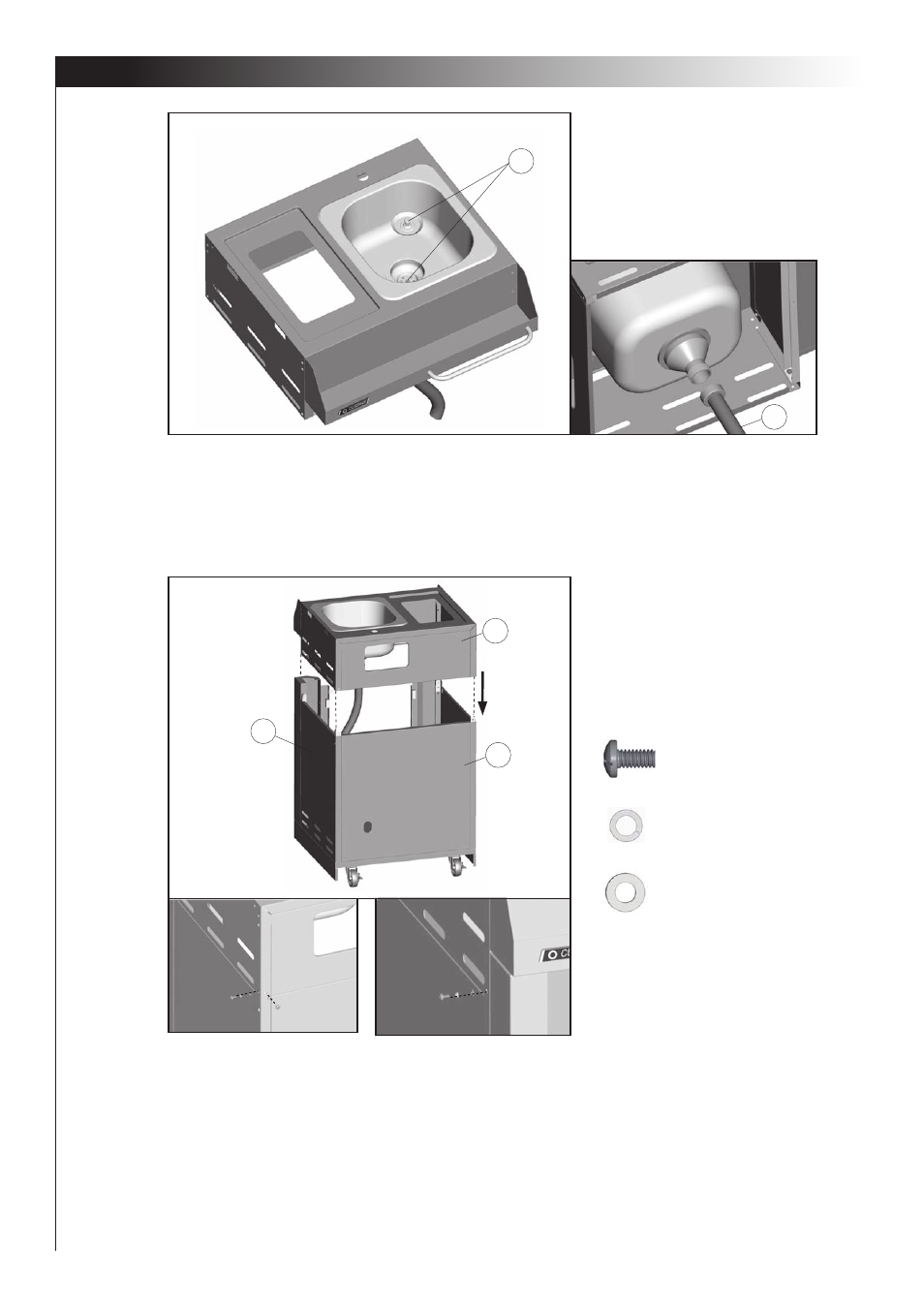

From underneath the sink cart, attach the sink
hose (E2) to the sink assembly (A2).
THIS STEP REQUIRES 2 OR MORE PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY HEAVY!
a. Position the main cart frame (A) onto the cart
assembly, as shown in Figure A.
b. Use the hardware to connect both parts, on the
left and right sides, at the four points indicated
in Figure B.
A.
B. B.
