ASSEMBLY INSTRUCTIONS
L2
L1
A B
#3 ø7 Lock Washer(X4)
#1 1/4"-20UNCx13 Screw(X4)
#2 ø7 Flat Washer(X4)
#4 No.10-24UNC x10 Screw(X6)
#5 ø 5 Lock Washer(X6)
#6 ø 5 Washer(X6)
4
3
I
K
J
Front view
J
K
Back view

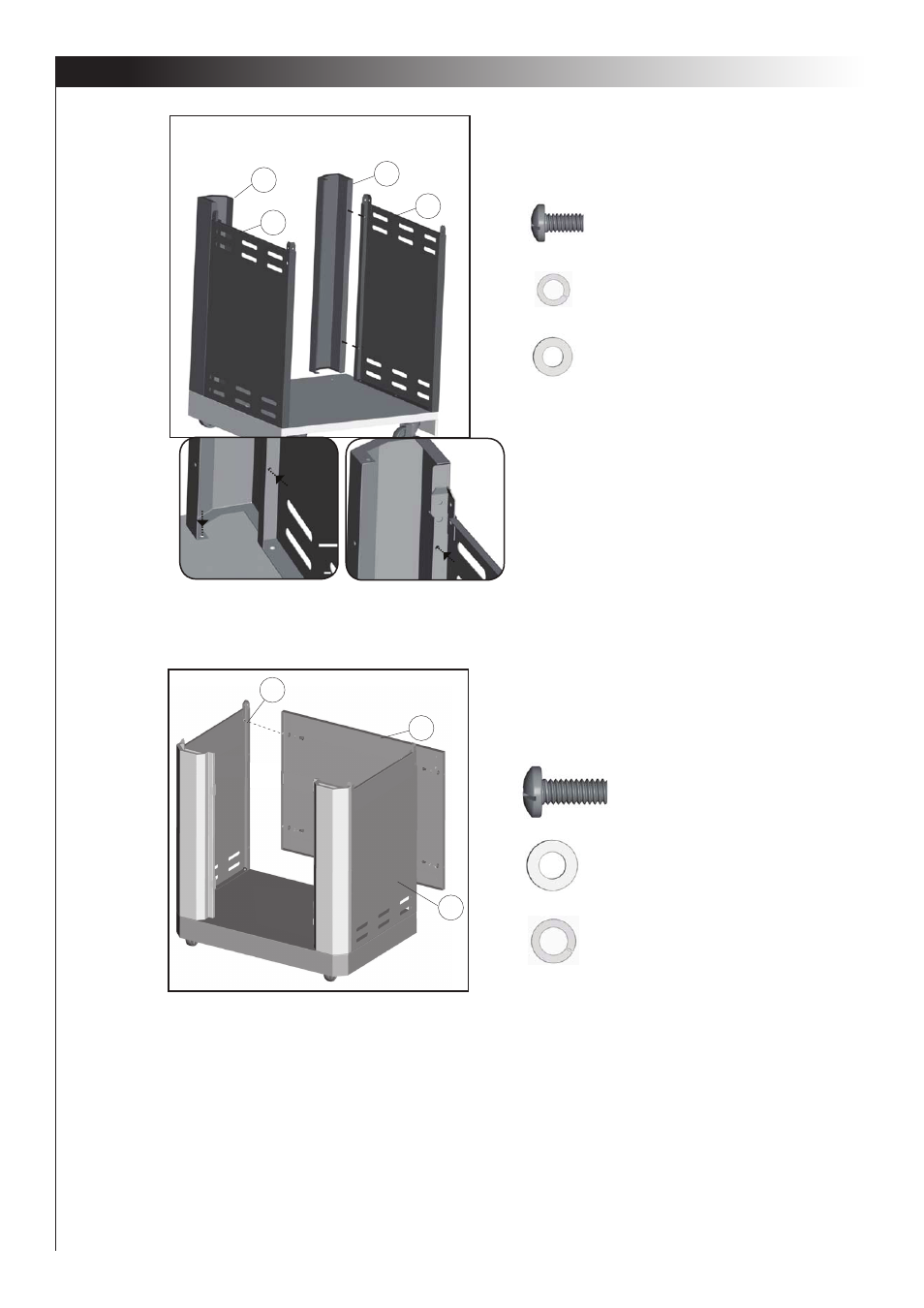

Attach the left pillar (L1) and the right pillar (L2) to the side
panels (J & K) and to the bottom shelf (N), as shown in Figure
A and B.
Attach the back panel (I) to the rear of the left and right cart
side panels (J & K).
