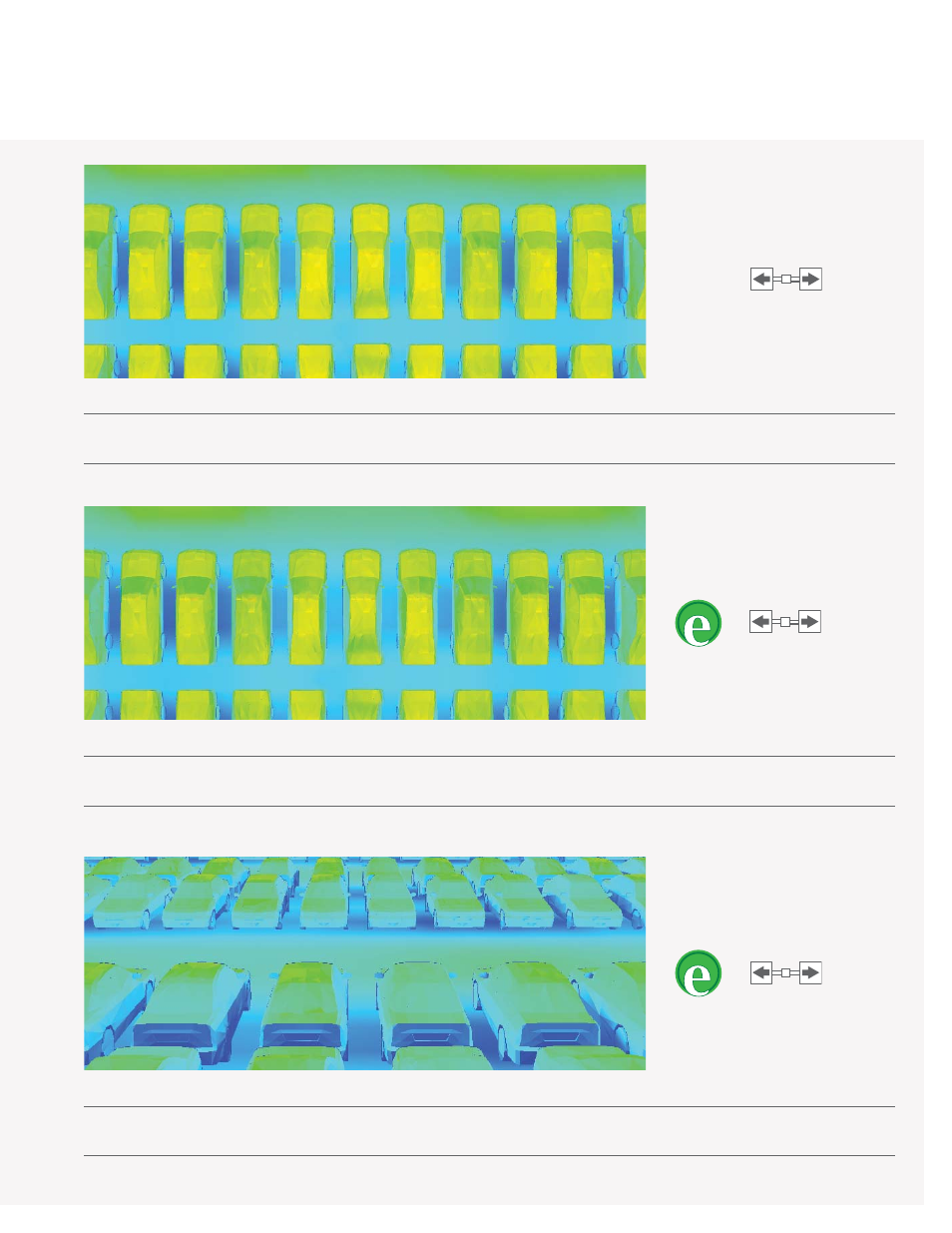

1 0 0 0 W M H F L A T G L A S S
G E N E R A L M E R C H A N D I S E D I S P L A Y
IESNA recommends 20 FC average
illuminance for areas of medium
competition.
Mounting Height [ft.] 27.5
Spacing [ft.] 93
Maintained Average FC 21.9
Uniformity 1.88
P O L E F I X T U R E C O M B I N A T I O N O R D E R I N G L O G I C
Distribution
Fixture Configuration Product Family 1 80 MPH 90 MPH 100 MPH 2
Area Round [AR] 2 @ 180° Talon [TLL] TLL21KMRF25XX 3 TLL21KMRF25XX 3 TLL21KMRF25XX0 4
Galleria Square [GSM] GSM21KMRF25XX 3 GSM21KMRF25XX 3 GSM21KMRF25XX0 4
Galleria Round [GRM] GRM21KMRF25XX 3 GRM21KMRF25XX 3 GRM21KMRF25XX 3
CLM CLM21KMRF25XX 3 CLM21KMRF25XX 3 CLM21KMRF25XX0 4
NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a
heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination
supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].
7 5 0 W M H F L A T G L A S S
G E N E R A L M E R C H A N D I S E D I S P L A Y
IESNA recommends 20 FC average
illuminance for areas of medium
competition.
Mounting Height [ft.] 27.5
Spacing [ft.] 93
Maintained Average FC 18.0
Uniformity 1.82
P O L E F I X T U R E C O M B I N A T I O N O R D E R I N G L O G I C
Distribution
Fixture Configuration Product Family 80 MPH 90 MPH 100 MPH 2
Area Round [AR] 2 @ 180° Talon [TLL] TLL275PRF25XX 3 TLL275PRF25XX 3 TLL275PRF25XX0 4
Galleria Square [GSM] GSM275PRF25XX 3 GSM275PRF25XX 3 GSM275PRF25XX0 4
Galleria Round [GRM] GRM275PRF25XX 3 GRM275PRF25XX 3 GRM275PRF25XX 3
CLM CLM275PRF25XX 3 CLM275PRF25XX 3 CLM275PRF25XX0 4
NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a
heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination
supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].
1 0 0 0 W M H F L A T G L A S S
E N E R G Y S A V I N G D I M M I N G
After hours operation of money and
energy saving Hi-Lo dimming relay
mounted internal to the fixture.
Mounting Height [ft.] 27.5
Spacing [ft.] 93
Maintained Average FC 16.5
Uniformity 2.55
P O L E F I X T U R E C O M B I N A T I O N O R D E R I N G L O G I C
Distribution
Fixture Configuration Product Family 1 80 MPH 90 MPH 100 MPH 2
Area Round [AR] 2 @ 180° Talon [TLL] TLL21KMRF25XXHL 3 TLL21KMRF25XXHL 3 TLL21KMRF25XX0HL 4
Galleria Square [GSM] GSM21KMRF25XXHL 3 GSM21KMRF25XXHL 3 GSM21KMRF25XX0HL 4
Galleria Round [GRM] GRM21KMRF25XXHL 3 GRM21KMRF25XXHL 3 GRM21KMRF25XXHL 3
CLM CLM21KMRF25XXHL 3 CLM21KMRF25XXHL 3 CLM21KMRF25XX0HL 4
NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a
heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination
supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].
