MEDIUM COMPETITION SITE LIGHTING
1 0 0 0 W M H F L A T G L A S S
F R O N T R O W D I S P L A Y
IESNA recommends 50 FC average
illuminance for areas of medium
competition.
Mounting Height [ft.]
25
Spacing [ft.]
60
Maintained Average FC
61.9
Uniformity
2.45
P O L E F I X T U R E C O M B I N A T I O N O R D E R I N G L O G I C
Distribution
Fixture Configuration
Product Family
1
80 MPH
90 MPH
100 MPH
2
Automotive Front Row [AF]
2 @ 180°
Talon [TLL]
TLL21KMFF25XX
3
TLL21KMFF25XX
3
TLL21KMFF25XX0
4
Galleria Square [GSM]
GSM21KMFF25XX
3
GSM21KMFF25XX
3
GSM21KMFF25XX0
4
Galleria Round [GRM]
GRM21KMFF25XX
3
GRM21KMFF25XX
3
GRM21KMFF25XX
3
CLM
CLM21KMFF25XX
3
CLM21KMFF25XX
3
CLM21KMFF25XX0
4
NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a
heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination
supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].
7 5 0 W M H F L A T G L A S S
F R O N T R O W D I S P L A Y
IESNA recommends 50 FC average
illuminance for areas of medium
competition.
Mounting Height [ft.]
25
Spacing [ft.]
50
Maintained Average FC
59.8
Uniformity
1.23
P O L E F I X T U R E C O M B I N A T I O N O R D E R I N G L O G I C
Distribution
Fixture Configuration
Product Family
1
80 MPH
90 MPH
100 MPH
2
Automotive Front Row [AF]
2 @ 180°
Talon [TLL]
TLL275PFF25XX
3
TLL275PFF25XX
3
TLL275PFF25XX0
4
Galleria Square [GSM]
GSM275PFF25XX
3
GSM275PFF25XX
3
GSM275PFF25XX0
4
Galleria Round [GRM]
GRM275PFF25XX
3
GRM275PFF25XX
3
GRM275PFF25XX
3
CLM
CLM275PFF25XX
3
CLM275PFF25XX
3
CLM275PFF25XX0
4
NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a
heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination
supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].
Medium
Horizontal
Maintained
Uniformity
Area to Illuminate
Levels [fc]
[Max.Min.]
Parking and Circulation [Non-Merchandising Area]
7
10:1
General Merchandise [Main Automotive Display Lot] 30
5:1
Featured Displays [Front Row and Display Stands]
50
3:1

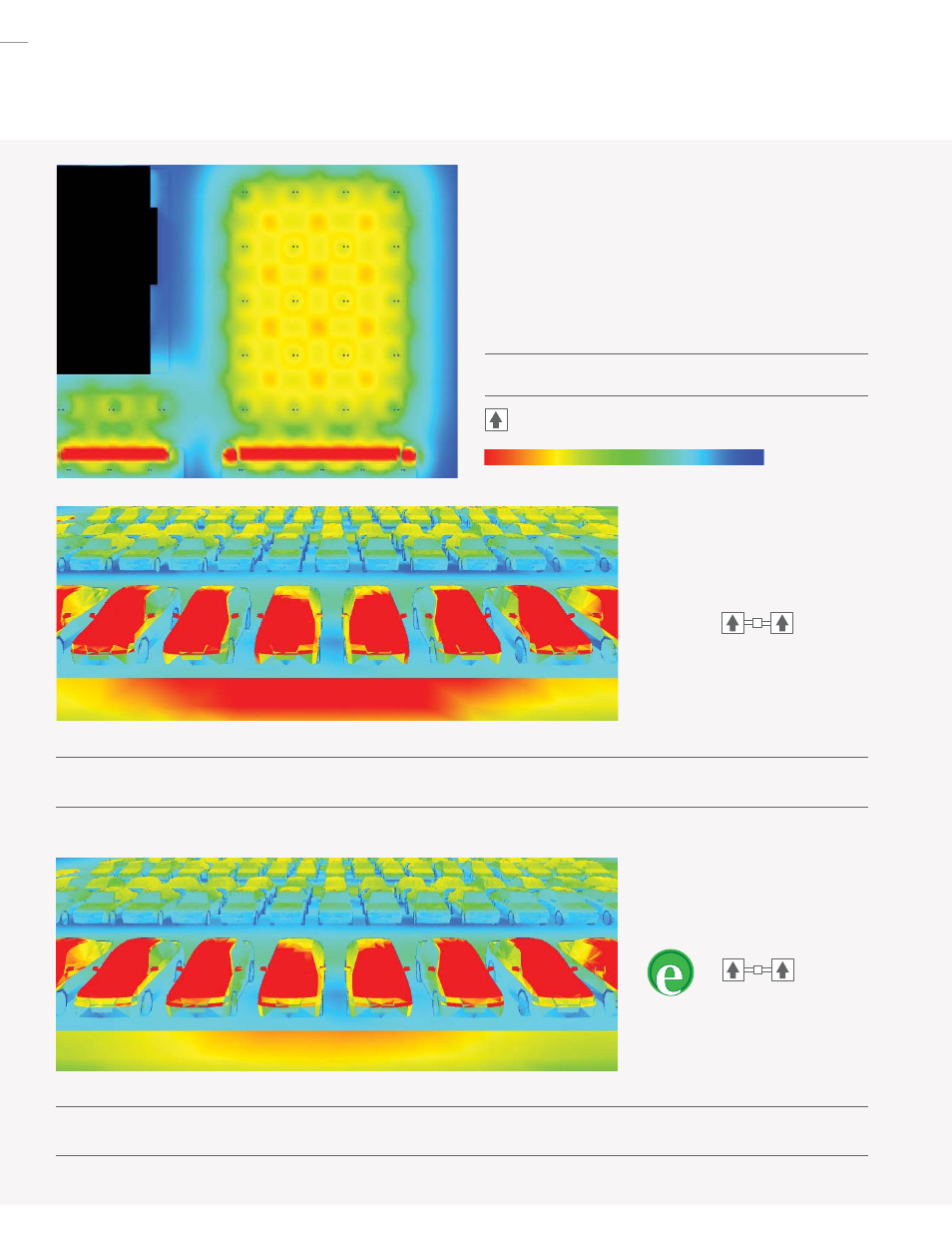

M E D I U M C O M P E T I T I O N D I S P L A Y
When your automotive dealership lot is neighbored by service stations
or large national retailers medium competition lighting levels are
recommended. Create a front row feature display along the roadway
with primary traffic flow. To prevent obstructing the view of displayed
vehicles, mount poles at grade [25' pole/fixture mounting height].
The remaining areas of the dealership displaying vehicles are
considered general merchandise areas. To protect merchandise,
mount poles on a 2.5' concrete base [25' pole, 27 1/2' fixture
mounting height].
70
46
30
19
12
8
5
3
General Merchandise
Front Row
Arrow denotes optical orientation.
Footcandles [fc]
