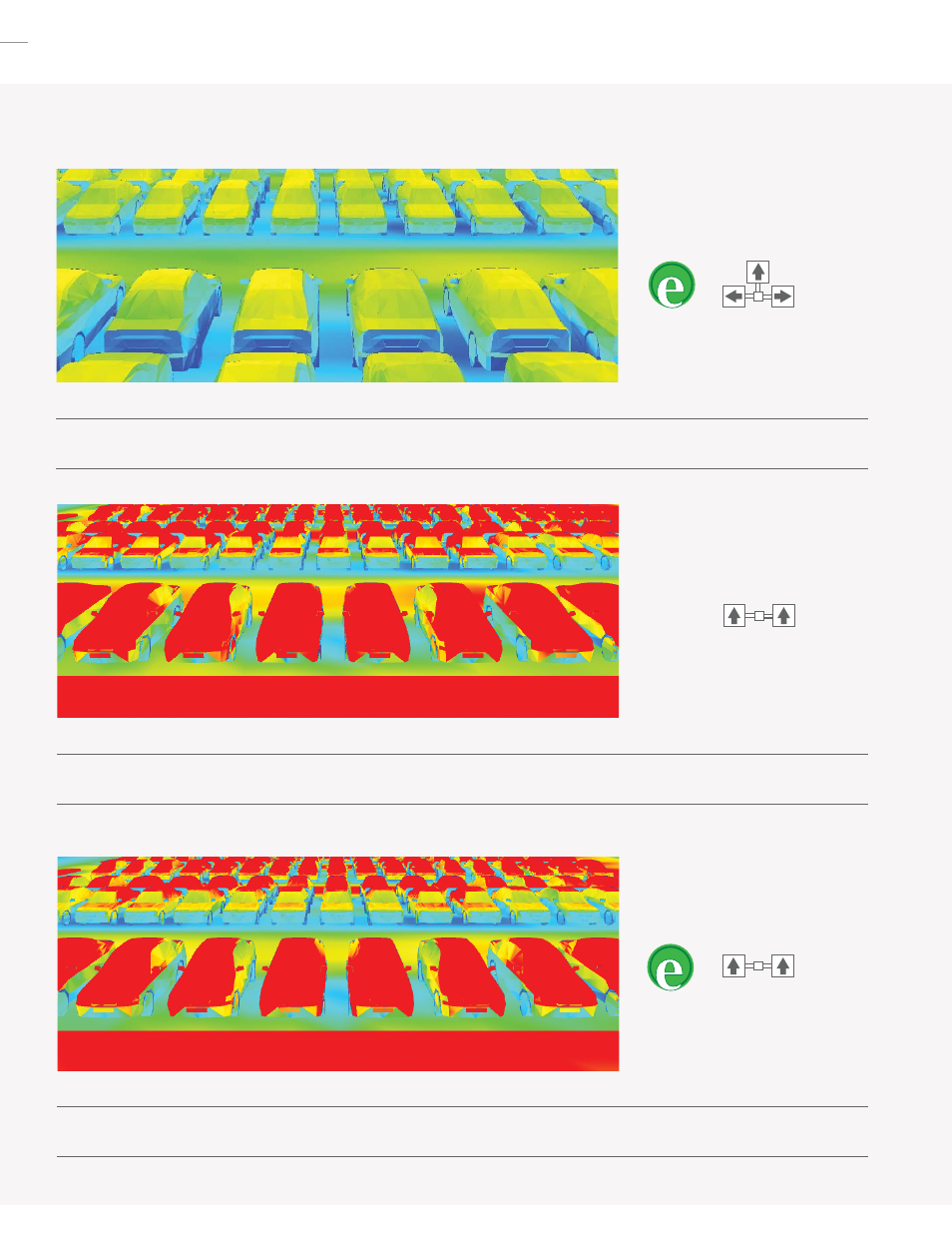

E N H A N C E D 1 0 0 0 W M H F L A T G L A S S
E N E R G Y S A V I N G D I M M I N G
After hours operation of money and energy
saving Hi-Lo dimming relay mounted
internal to the fixture.
Mounting Height [ft.] 27.5
Spacing [ft.] 55
Maintained Average FC 32.1
Uniformity 1.15
P O L E F I X T U R E C O M B I N A T I O N O R D E R I N G L O G I C
Distribution
Fixture Configuration Product Family 1 80 MPH 90 MPH 100 MPH
Area Round [AR] 3 @ 90° Talon [TLL] TLL31KMRF25XXHL 2 TLL31KMRF25XXHL 2 TLL31KMRF25XXHL 2
Galleria Square [GSM] GSM31KMRF25XXHL 2 GSM31KMRF25XXHL 2 GSM31KMRF25XXHL 2
Galleria Round [GRM] GRM31KMRF25XXHL 2 GRM31KMRF25XXHL 2 GRM31KMRF25XXHL 2
CLM CLM31KMRF25XXHL 2 CLM31KMRF25XXHL 2 CLM31KMRF25XXHL 2
NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 Combination supplied with SSS5M25S
square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].
1 0 0 0 W M H F L A T G L A S S
F R O N T R O W D I S P L A Y
IESNA recommends 75 FC average
illuminance for areas of high competition.
Mounting Height [ft.] 25
Spacing [ft.] 50
Maintained Average FC 75.2
Uniformity 1.23
P O L E F I X T U R E C O M B I N A T I O N O R D E R I N G L O G I C
Distribution
Fixture Configuration Product Family 1 80 MPH 90 MPH 100 MPH 2
Automotive Front Row [AF] 2 @ 180° Talon [TLL] TLL21KMFF25XX 3 TLL21KMFF25XX 3 TLL21KMFF25XX0 4
Galleria Square [GSM] GSM21KMFF25XX 3 GSM21KMFF25XX 3 GSM21KMFF25XX0 4
Galleria Round [GRM] GRM21KMFF25XX 3 GRM21KMFF25XX 3 GRM21KMFF25XX 3
CLM CLM21KMFF25XX 3 CLM21KMFF25XX 3 CLM21KMFF25XX0 4
NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a
heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination
supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].
7 5 0 W M H F L A T G L A S S
F R O N T R O W D I S P L A Y
IESNA recommends 75 FC average
illuminance for areas of high competition.
Mounting Height [ft.] 25
Spacing [ft.] 40
Maintained Average FC 75.1
Uniformity 1.22
P O L E F I X T U R E C O M B I N A T I O N O R D E R I N G L O G I C
Distribution
Fixture Configuration Product Family 1 80 MPH 90 MPH 100 MPH 2
Automotive Front Row [AF] 2 @ 180° Talon [TLL] TLL275PFF25XX 3 TLL275PFF25XX 3 TLL275PFF25XX0 4
Galleria Square [GSM] GSM275PFF25XX 3 GSM275PFF25XX 3 GSM275PFF25XX0 4
Galleria Round [GRM] GRM275PFF25XX 3 GRM275PFF25XX 3 GRM275PFF25XX 3
CLM CLM275PFF25XX 3 CLM275PFF25XX 3 CLM275PFF25XX0 4
NOTES: 1 Pole fixture combination includes pole, fixtures, lamp, and mounting hardware. Fixture supplied with 5-Tap [120/208/240/277/480V] ballast wired 480V. 2 0 noted where needed to designate a
heavier gauge pole. 3 Combination supplied with SSS5A25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4]. 4 Combination
supplied with SSS5M25S square straight steel shaft, anchor bolts [AB1], template [TMP1] and base cover. Replace XX with color designation [page 4].
