ASSEMBLY
8
FIRST, GET A HELPER! This unit is heavy and requires a second person for lifting and moving. NEXT, pick a suitable
location to work. Open the carton and slit the corners so that the carton lays flat. This will give you a protective surface
during assembly. Remove the carton packing material and the parts from inside the firebox and smoke chamber.

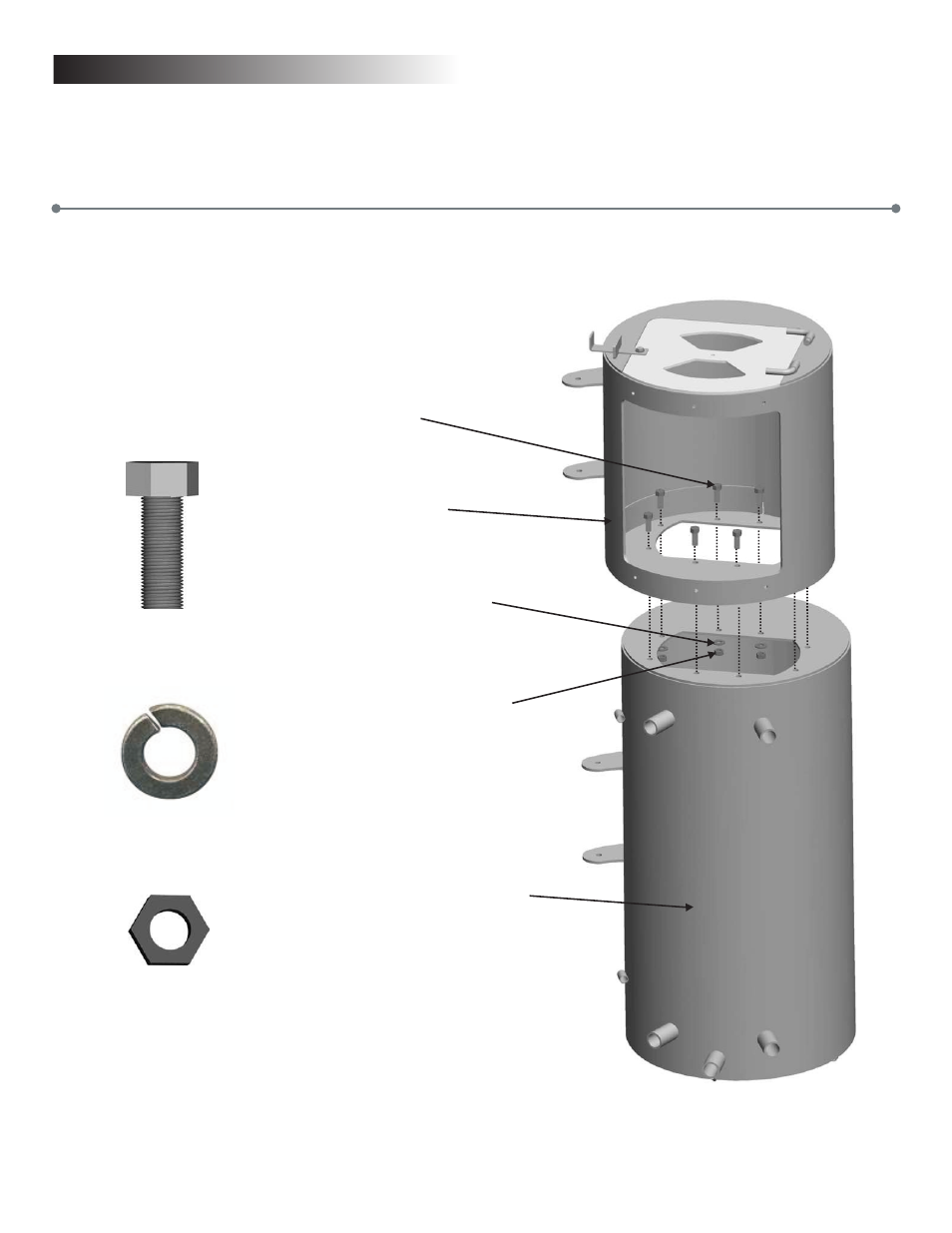

Turn the smoke chamber on end so that the heat passage
opening is facing up. Match the heat passage opening on
the firebox with the opening on the smoke chamber. Secure
the two sections together using eight 3/8-16X1" hex-head
bolts, 3/8" lock washers and 3/8-16 hex nuts.
NOTE: Opening in Firebox shown for clarity
3/8-16x1”
hex-head bolt
Qty. 8
3/8”
lock washer
Qty. 8
3/8-16
hex nut
Qty. 8
3/8-16x1" hex head
bolt
Firebox
3/8" washer
Smoke Chamber
3/8-16 hex nut
