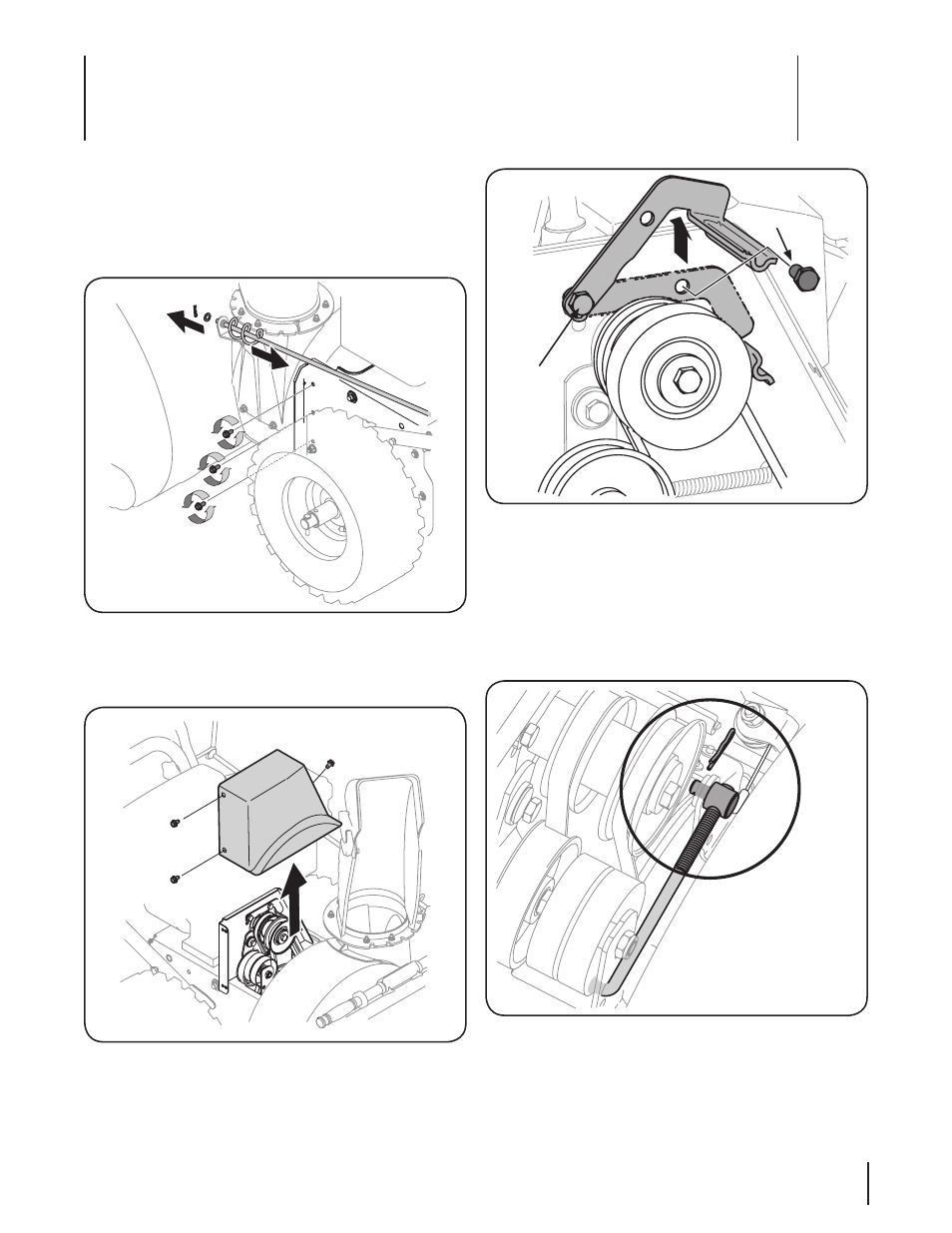

Belt Replacement

Belt Removal Preparation

Disconnect the chute crank assembly at the discharge

1.

chute end by removing the hairpin clip and the flat

washer. Refer to Figure 7-1.

Remove the plastic belt cover on the front of the

2.

engine by removing the three self-tapping screws. See

Figure 7-2.

Loosen the bolt shown in Figure 7-3 securing the belt

3.

keeper bracket and remove the other bolt. Push the

belt keeper bracket up off the engine pulley. Refer to

Figure 7-3.

Auger Belt Replacement

To remove and replace your snow thrower’s auger belt,

proceed as follows:

Remove the hairpin clip and flat washer from the

1.

ferrule in order to disconnect the auger idler rod from

the brake bracket assembly. See Figure 7-4.

NOTE: Make sure to maintain the location of the ferrule on

the idler rod.

Slip the auger control belt (the front belt) off of the engine

2.

pulley.
Pull the

3.

brake bracket assembly towards the cable guide

roller and unhook the “Z” fitting. Refer to Fig. 7-5.

Figure 7-4

Figure 7-1

Figure 7-2

Figure 7-3

Loosen

Remove

Service

7

19
