a) base cover
b) battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the Secondary Memory
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) battery
b) keyboard trim
c) keyboard

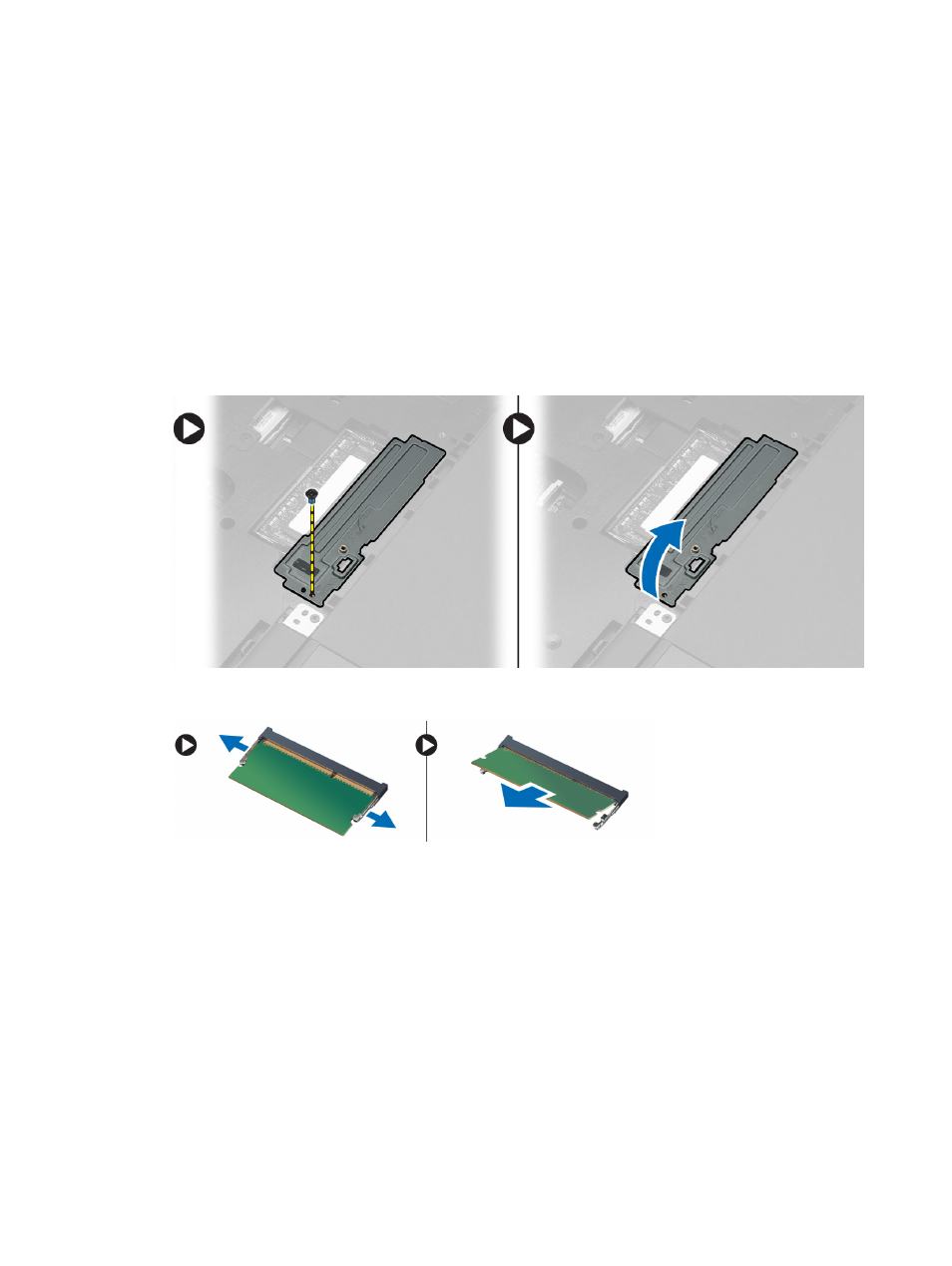

3. Remove the screw that secures the memory shield to the computer. Lift up and remove the memory shield from the
computer.
4. Pry the retention clips away from the memory module until it pops up. Lift up the memory module and remove it from
the computer.
Installing the Secondary Memory
1. Insert the secondary memory into the memory socket.
2. Press the clips to secure the memory module to the system board.
3. Place the memory shield in its original position on the computer and tighten the screw to secure it to the computer.
4. Install the:
a) keyboard
b) keyboard trim
c) battery
5. Follow the procedures in After Working Inside Your Computer .
