Back-Panel Features and Indicators

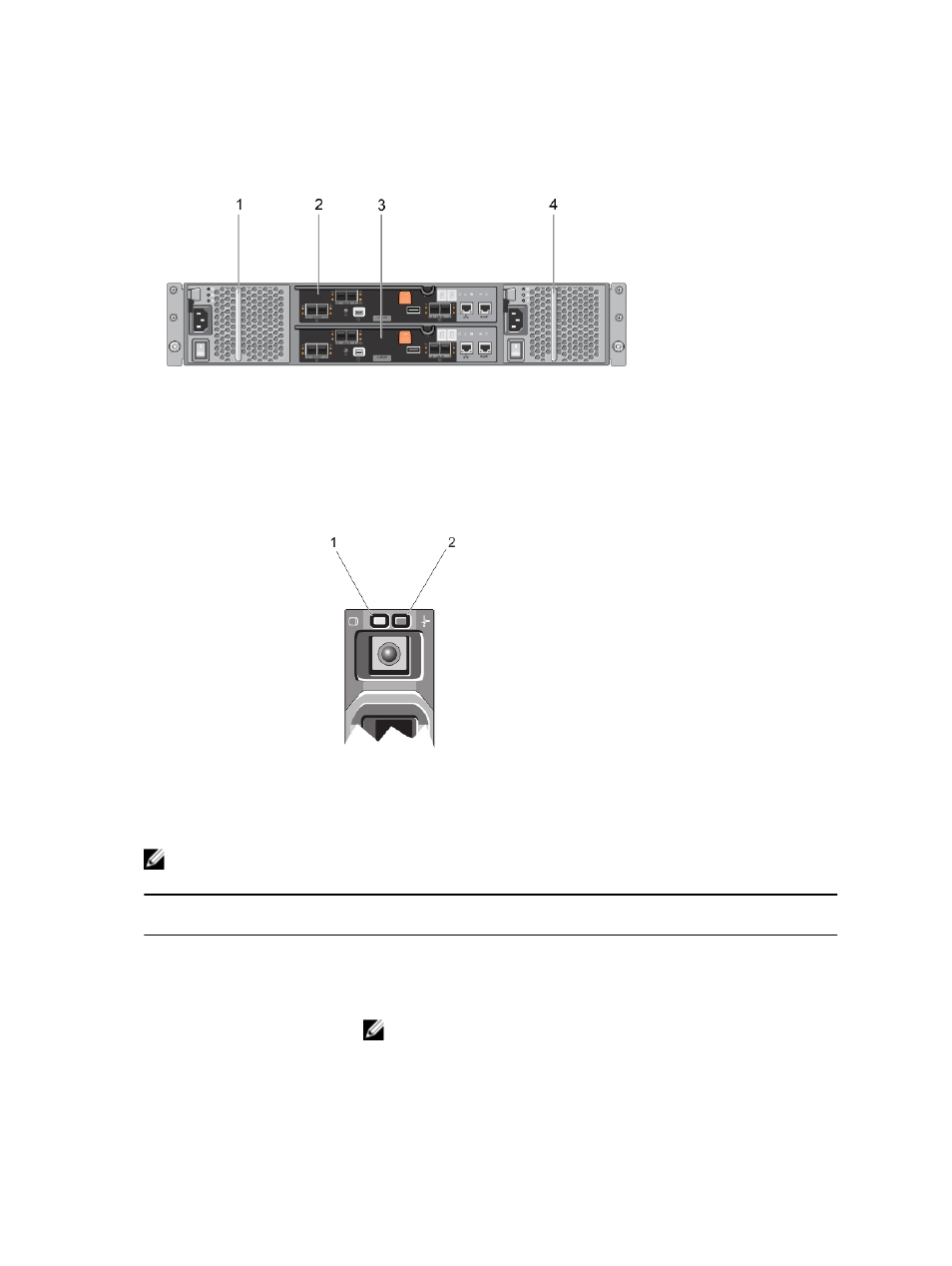

Figure 4. Back-Panel Features and Indicators—Dell PowerVault MD3400 and MD3420 Series
1. 600 W power supply/cooling fan 2. RAID Controller Module 0
3. RAID Controller Module 1 4. 600 W power supply/cooling fan
Physical-Drive Indicator Patterns
Figure 5. Physical-Drive Indicators
1. physical-drive activity indicator (green) 2. physical-drive status indicator (green and
amber)
NOTE: If the physical drive is in Advanced Host Controller Interface (AHCI) mode, the status
indicator (on the right side) does not function and remains off.
Drive-Status Indicator Pattern
(RAID Only)
Condition
Blinks green two times per
second Identifying drive or preparing for removal
Off Drive ready for insertion or removal
NOTE: The drive status indicator remains off until all physical
drives are initialized after the system is turned on. Drives are not
ready for insertion or removal during this time.
