Display Assembly | 43
5 Turn the display panel over and place it on a clean surface.
6 Remove the screws that secure the display-panel brackets to the display panel.
7 Remove the display-panel brackets off the display panel.
Replacing the Display Panel
Procedure
1 Align the screw holes on the display-panel bracket with the screw holes on the
display panel and replace the screws that secure the display-panel bracket to the
display panel.
2 Turn the display panel over.
3 Adhere the display cable to the back of the display panel.
4 Connect the display cable to the display-board connector and secure it with the
tape.
5 Align the screw holes on the display panel with the screw holes on the display cover
and replace the screws that secure the display panel to the display cover.

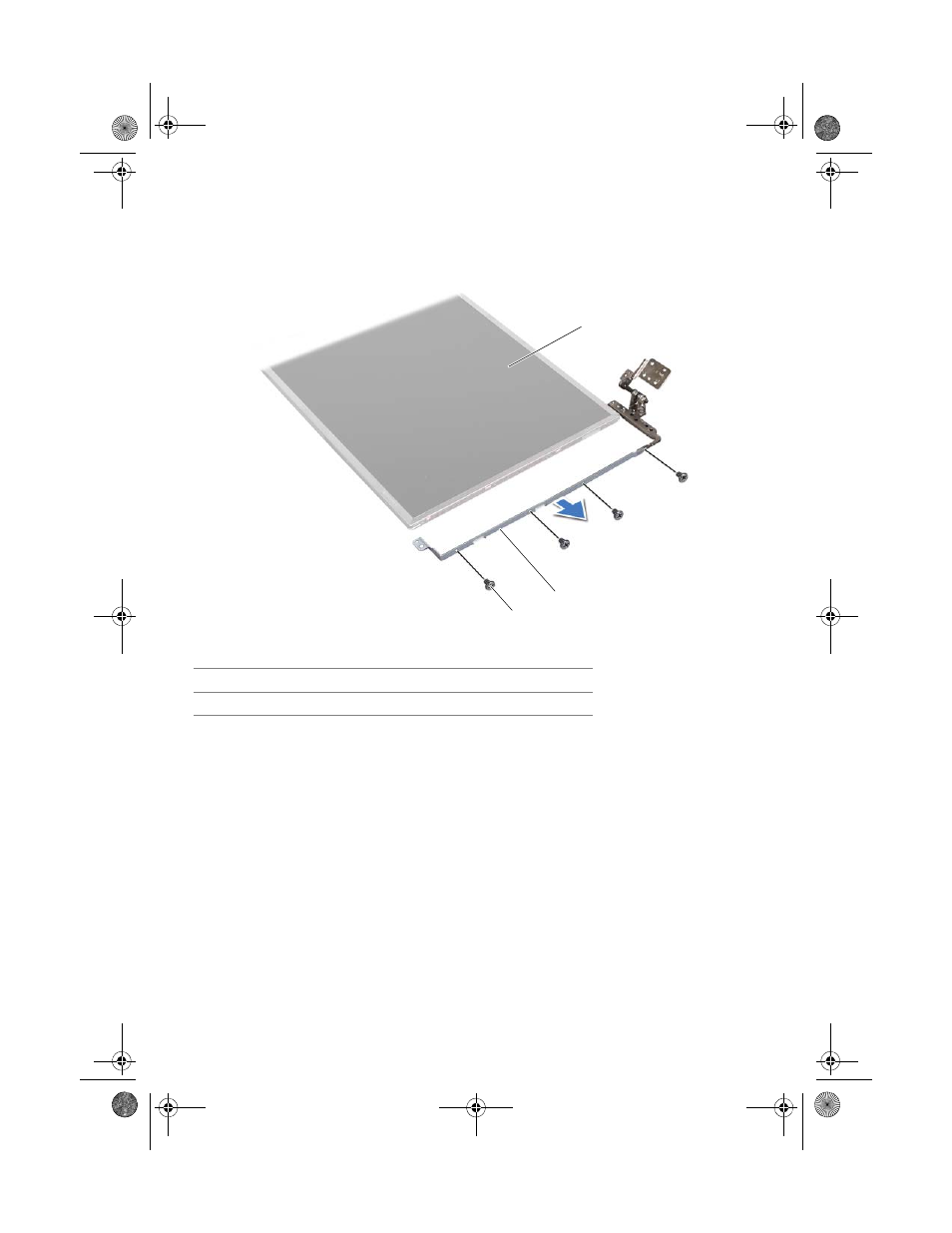

1 screws (8) 2 display-panel brackets (2)
3 display panel
1
2
3
