36 | Display Assembly
Procedure
1 Disconnect the antenna cables from the connectors on the Mini-Card.
2 Peel the tape that secures the display cable to the system board and then
disconnect the display cable from the connector on the system board.
3 Make a note of the display cable routing and remove the cable from the routing
guides.
4 Remove the screws that secure the display assembly to the computer base.
5 Lift the display assembly off the computer base.

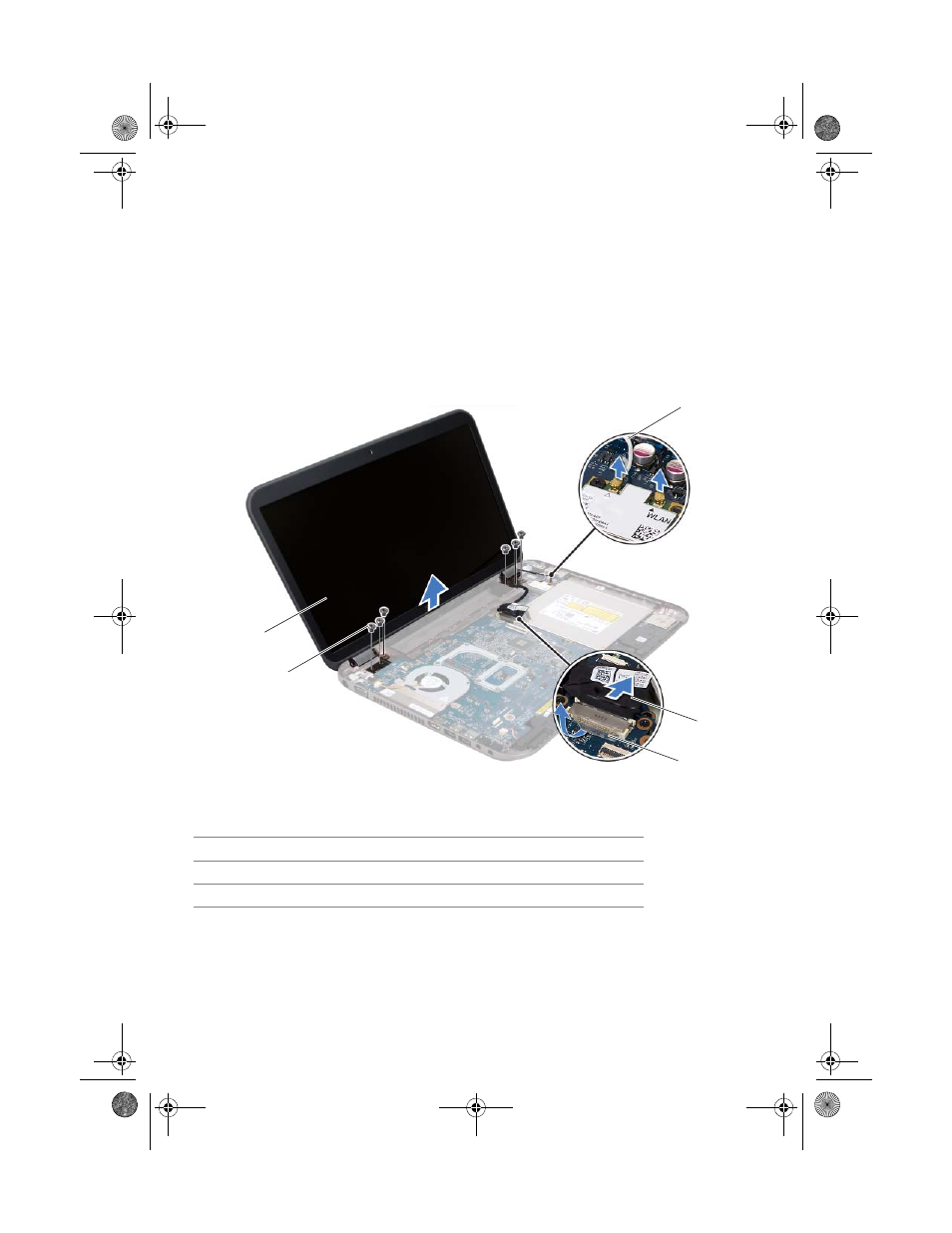

1 display assembly 2 screws (6)
3 tape 4 display cable
5 antenna cables (2)
