Never operate a SteamChef without the KleanShield
™ properly installed.
The properly installed KleanShield™ helps protect the operator from scalding water
splashing out of the reservoir, and helps prevent drain blockage.
Operating a SteamChef without the KleanShield™ properly installed can cause injury,
equipment damage, and reduce performance.

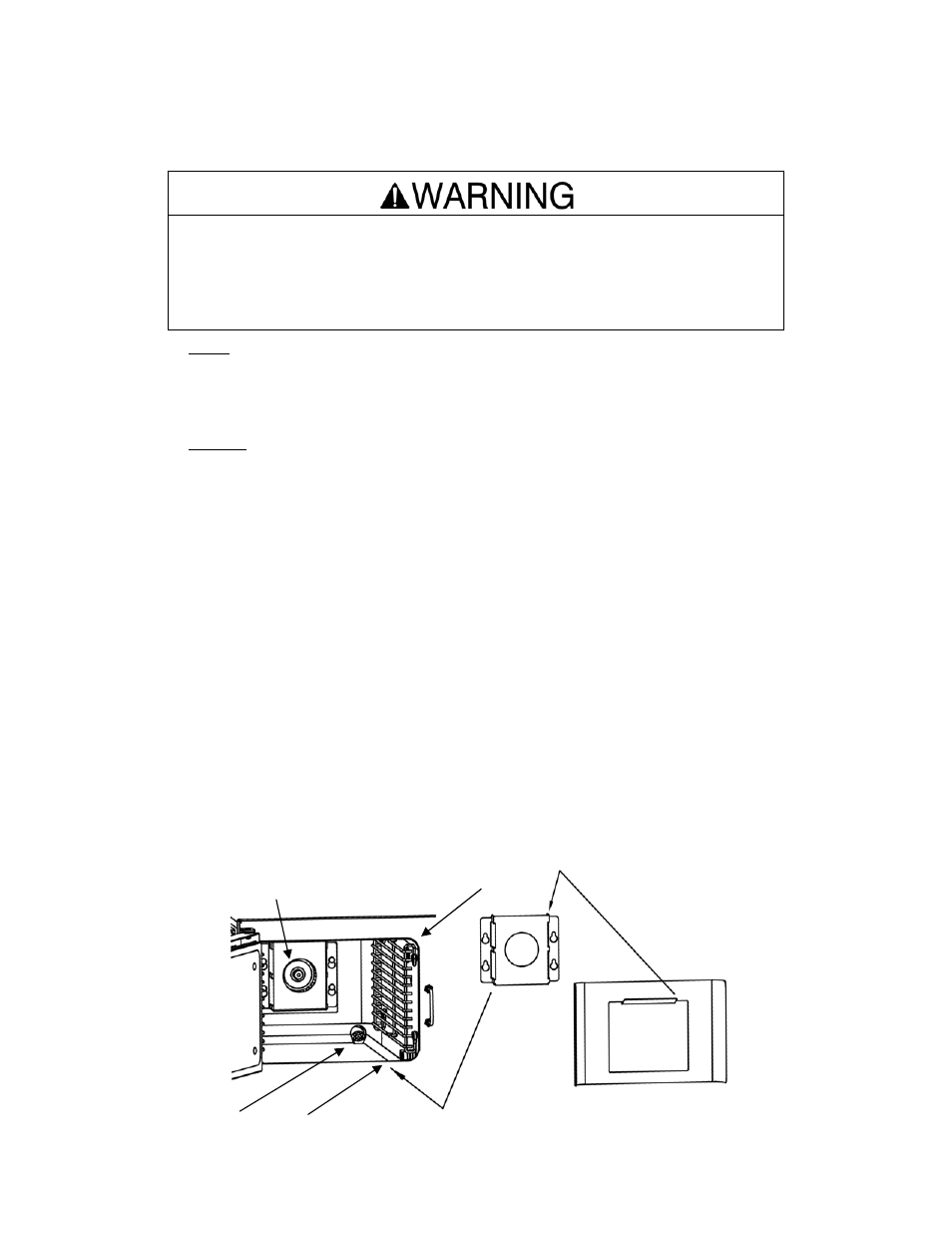

Figure 3-2
Cooking Compartment
Air Diverter
Fan
Fan
Guard
D. To Install/Remove the KleanShield
™
Note: The KleanShield™ is dishwasher safe.
1. To Install the KleanShield
™.
a. Place the KleanShield
™ into the SteamChef so the drain trough slips into the KleanShield™
drain at the rear of the cooking compartment.
b. Carefully lower the front of the KleanShield™ so the Water Level Sensor Guard is behind the
probes and the front legs rest on the bottom of the cooking compartment.
2. To Remove the KleanShield
™, wait for the SteamChef to cool, carefully lift the front of the
KleanShield
™ and remove the KleanShield™ from the cooking compartment.
E. To Install/Remove the Slide Racks (Pan Racks)
1. See Figure 3-2. Each rack has four loops: two at the top and two at the bottom. Hold the slide
rack so the ends of the hanger loops are towards the cooking compartment wall.
a. Slide a rack into the compartment with the hanger loops on the cooking compartment wall side.
b. Hook the loops over the top and bottom pins.
c. Repeat steps a and b for the other rack.
2. To REMOVE the slide racks, unhook the loops over the top and bottom pins and remove the racks.
F. To Inspect the Cooking Compartment
1. Before turning ON the power switch/lever to the SteamChef, the inside of the SteamChef must be
clean. See Chapter 6.
2. Inspect the door gasket assembly, water level sensors, KleanShield
™, drain screen, fan guard, air
diverter, and slide racks for proper installation and cleanliness. See Figure 3-2.
3. Make sure that the KleanShield
™ drain is clear. If the drain is blocked or slow, do NOT start the
SteamChef until it has been cleaned. See Chapters 6 and 7 for Cleaning and Troubleshooting
procedures. To check the drain:
a. Pour about a quart of water through the KleanShield
™ drain.
b. Check that the water flows out the drain and drainpipe.
KleanShield™ to
Drain Fit-up
Slide Rack
on Hangers
Water Probes
Door
