Subwoofer
Dell™ Studio XPS™ 1640 Service Manual
Removing the Subwoofer
1.
Follow the instructions in
Before You Begin
.
2.
Remove the palm rest (see
Removing the Palm Rest
).
3.
Disconnect the subwoofer cable from the system board connector.
4.
Lift the subwoofer out of the computer base.
Replacing the Subwoofer
1.
Place subwoofer in the computer base.
2.
Connect the subwoofer cable to the system board connector.
3.
Replace the palm rest (see
Replacing the Palm Rest
).
Back to Contents Page
CAUTION:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not
covered by your warranty.
NOTICE:
To help prevent damage to the system board, remove the main battery (see
Before Working Inside Your Computer
) before working inside the
computer.

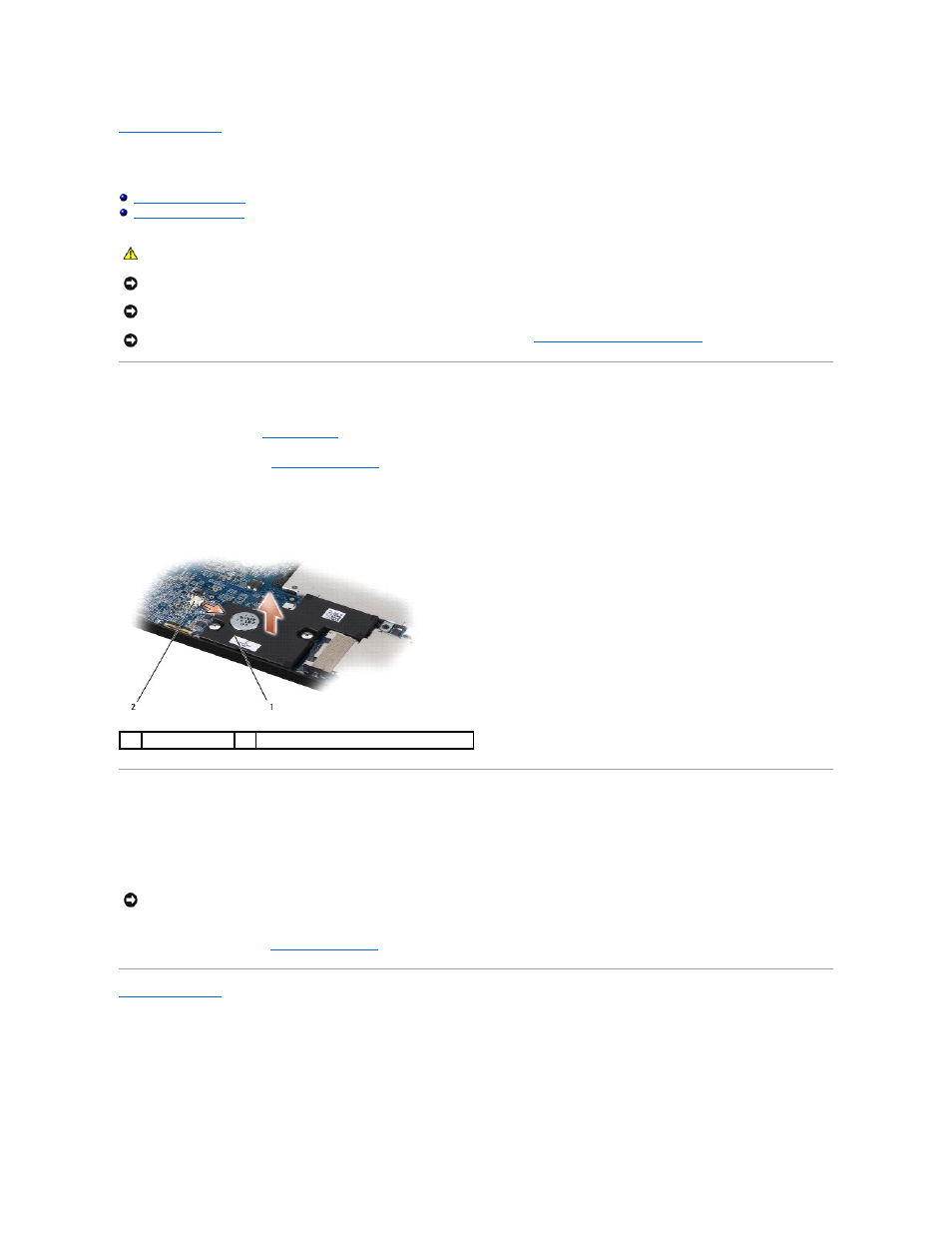

1
subwoofer
2
subwoofer cable connector
NOTICE:
Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in
damage to the computer.
