35 | Removing the Hard Drive
Procedure
1 Pull the pull-tab to disconnect the hard-drive cable from the
system-board connector.
2 Remove the screws that secure the hard-drive assembly to the computer base.
3 Make a note of the hard-drive cable routing and remove the cable from
the routing guides.
4 Lift the hard-drive assembly along with its cable away from the computer base.

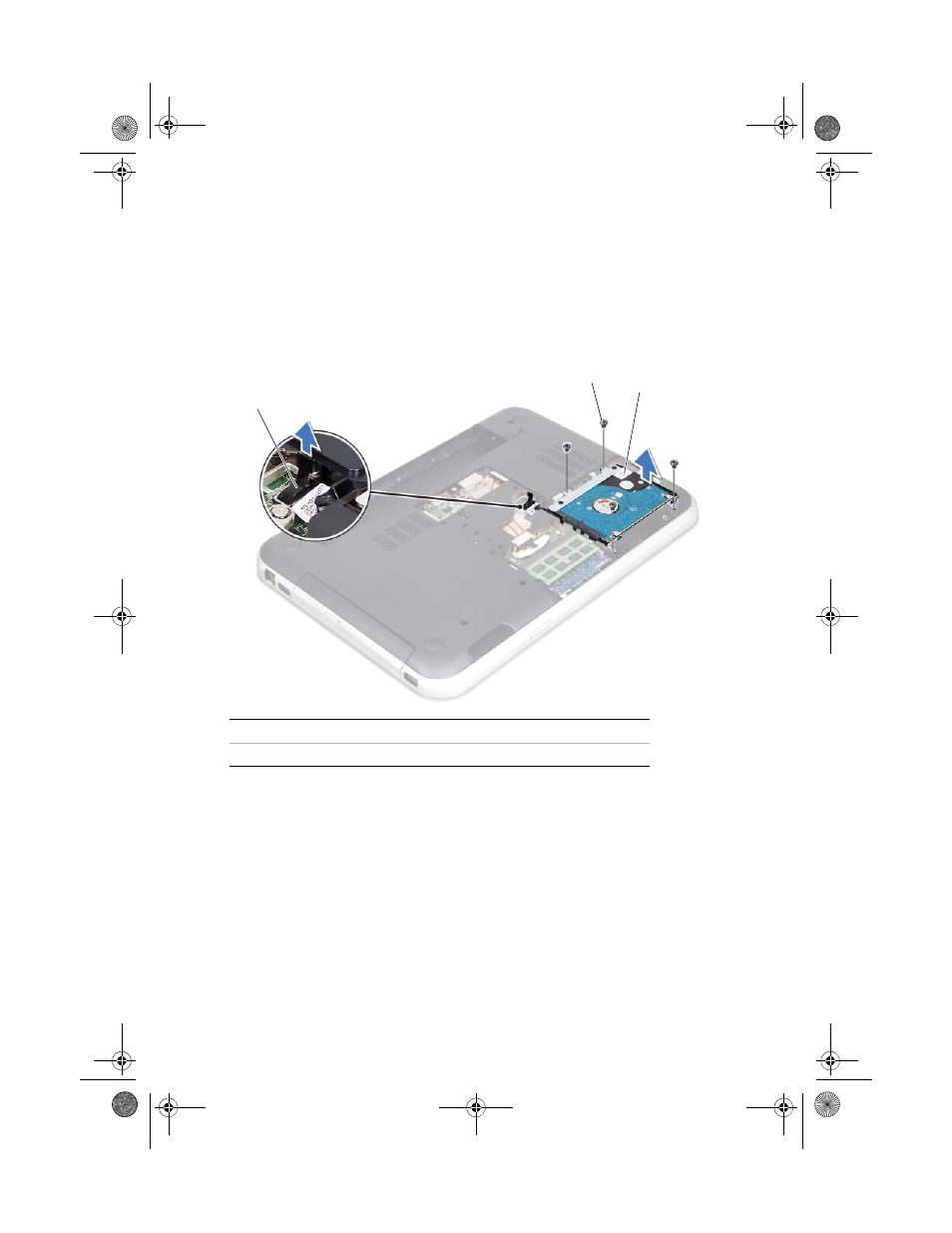

1 hard-drive cable connector 2 screws (4)
3 hard-drive assembly
1
3
2
