Product Overview | 12

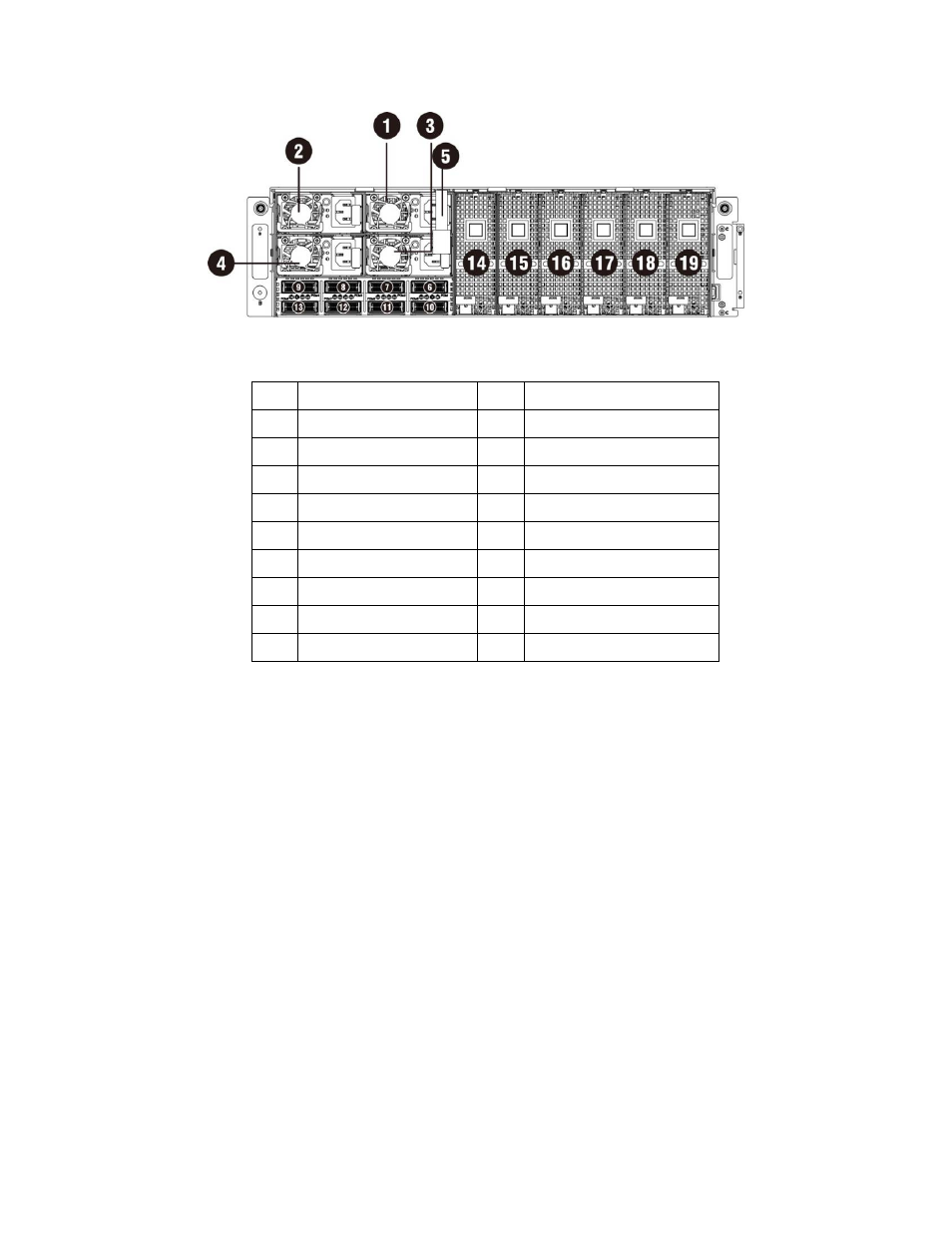

Figure 2 – Back View
1 Power Module 1 11 iPass connector 6
2 Power Module 2 12 iPass connector 7
3 Power Module 3 13 iPass connector 8
4 Power Module 4 14 PCI Cage 11
5 BMC LAN Cable 15 PCI Cage 12
6 iPass connector 1 16 PCI Cage 13
7 iPass connector 2 17 PCI Cage 14
8 iPass connector 3 18 PCI Cage 15
9 iPass connector 4 19 PCI Cage 16
10 iPass connector 5
