Coin-Cell Battery
Dell Inspiron 1122 Service Manual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery
Removing the Coin-Cell Battery
1.
Follow the instructions in
Before You Begin
.
2.
Remove the battery (see
Removing the Battery
).
3.
Remove the keyboard (see
Removing the Keyboard
).
4.
Follow the instructions from
step 4
to
step 6
in
Removing the Hard Drive
.
5.
Remove the palm rest (see
Removing the Palm Rest
).
6.
Use a plastic scribe and gently pry the coin-cell out of the battery socket on the system board.
7.
Lift the coin-cell battery out of the battery socket.
Replacing the Coin-Cell Battery
1.
Follow the instructions in
Before You Begin
.
2.
With the positive side up, snap the coin-cell battery into the battery socket on the system board.
3.
Replace the palm rest (see
Replacing the Palm Rest
).
4.
Follow the instructions from
step 5
to
step 7
in
Replacing the Hard Drive
.
5.
Replace the keyboard (see
Replacing the Keyboard
).
6.
Replace the battery (see
Replacing the Battery
).
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at dell.com/regulatory_compliance.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery
) before working inside the
computer.

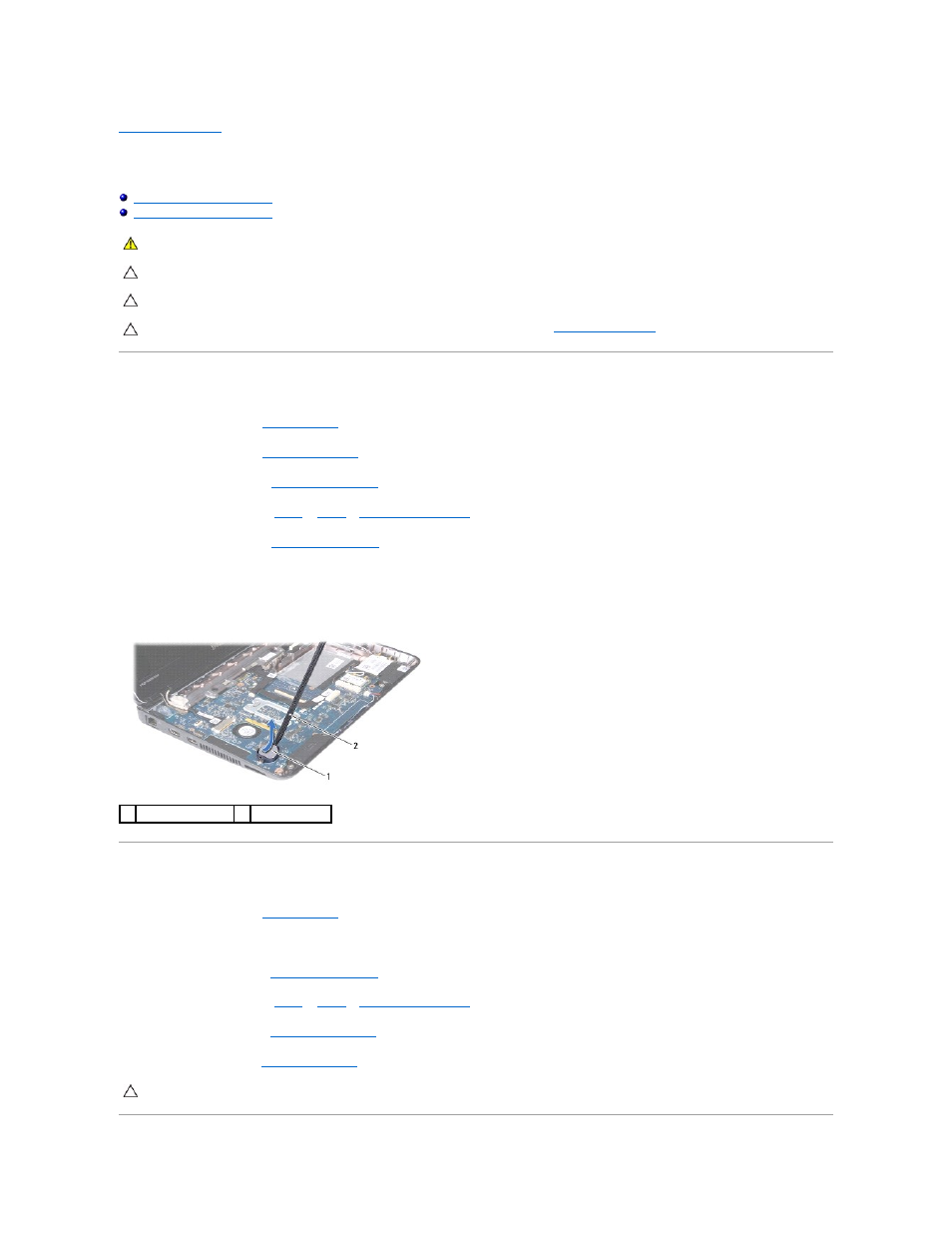

1 coin-cell battery
2 plastic scribe
CAUTION:
Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
