Dell ™ Latitude™ E6400 XFR Setup and Features Information
Page 7

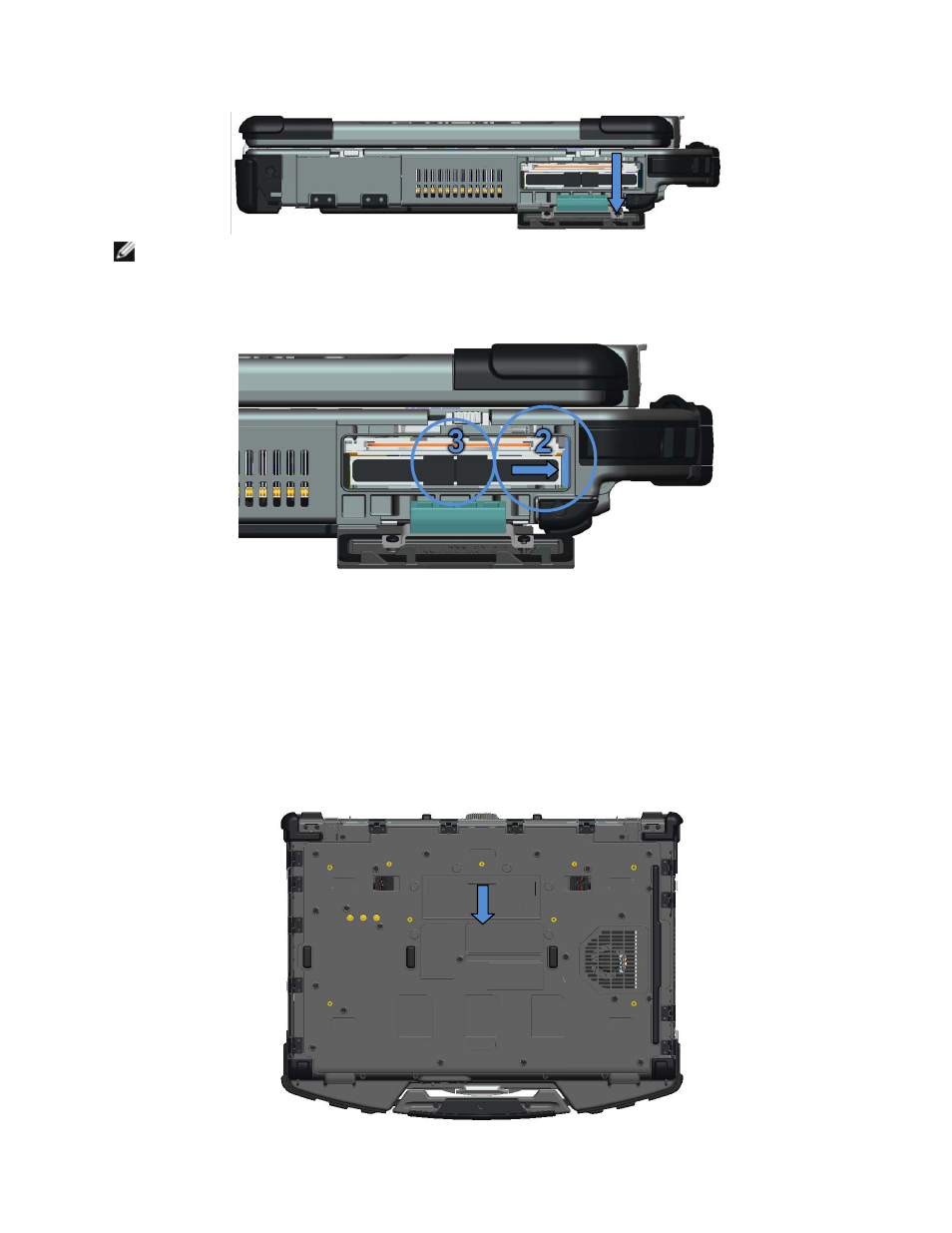

NOTE: See hard drive removal instructions adhered to the edge of the hard drive.
2. Press in the blue locking button on the right side of the compartment .
3. While pressing in the blue locking button, use the tab on the edge of the hard drive to pull the
hard drive from the compartment.
Hard Drive Installation
1. Insert hard drive until you hear a click and a mechanical stop.
2. Rotate the door into place and press until it clicks into its closed position.
Operation of the PrimoSeal™ Doors
Docking Device Connector Door
The docking device connector door is opened by sliding the door towards the front of the computer to
its fully open position. Reverse this procedure to close the door.
