Internal Card With Bluetooth® Wireless Technology
Dell Studio™ 1557/1558 Service Manual
If you ordered a card with Bluetooth wireless technology with your computer, it is already installed.
Removing the Bluetooth Card
1.
Follow the instructions in
Before You Begin
.
2.
Remove the palm rest (see
Removing the Palm Rest
).
3.
Remove the screw that secures the Bluetooth card to the system board.
4.
Lift the Bluetooth card to disconnect it from the system board connector.
Replacing the Bluetooth Card
1.
Follow the instructions in
Before You Begin
.
2.
Align the connector on the Bluetooth card with the connector on the system board and press the Bluetooth card until it is fully seated.
3.
Replace the screw that secures the Bluetooth card to the system board.
4.
Replace the palm rest (see
Replacing the Palm Rest
).
Back to Contents Page
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Before Working Inside Your Computer
) before working
inside the computer.

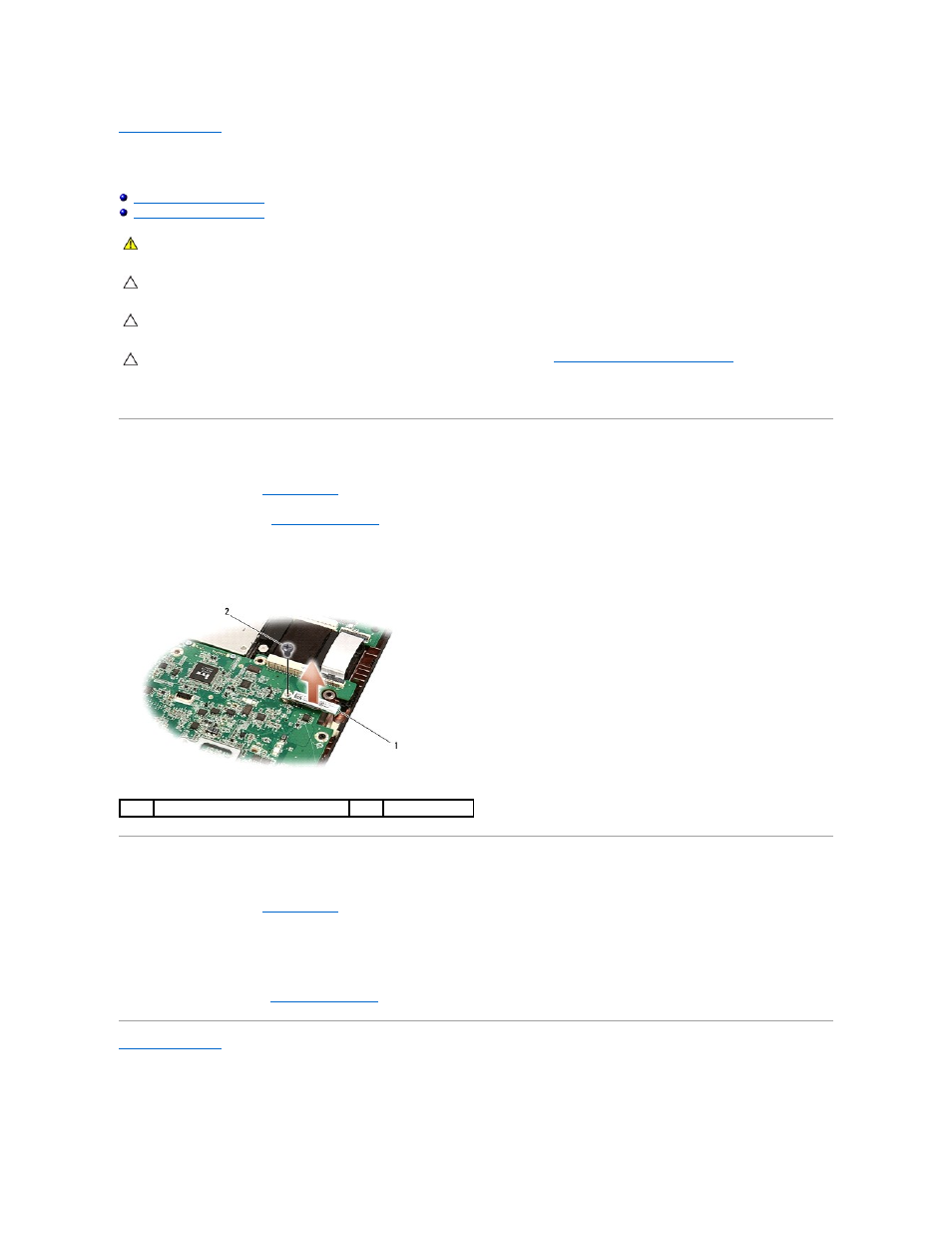

1
Bluetooth card
2
screw
