Dell U2711 Monitor User Manual

Page 32

Text mode
Original mode

See

Solving Problems

for more information.

Activate the computer and wake up the monitor to gain access to the

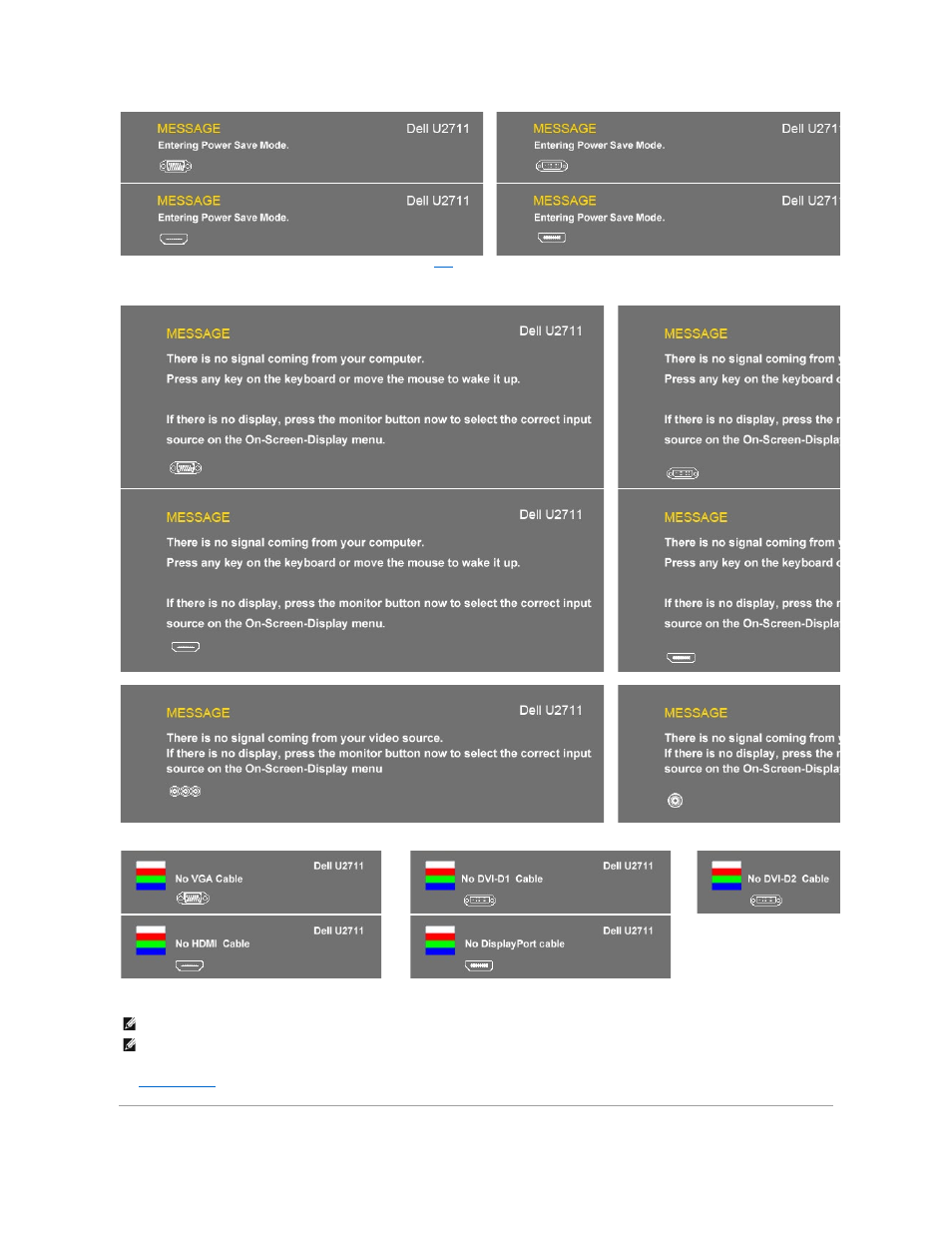

If you touch any button other than the power button one of the following messages will appear depending on the selected input:

VGA/DVI-D/HDMI/DisplayPort input

Video Input

If either VGA, DVI-D, HDMI or DisplayPort input is selected and all VGA, DVI-D, HDMI and DisplayPort cables are not connected, a floating dialog box as shown below appears.

NOTE:

When the cable is connected back to the input of the monitor, any active PBP window will disappear. Please enter PBP submenu to bring back the PBP

NOTE:

The PBP functions can bring up a picture from a second image source. Thus you can watch images from 1 PC source (D-Sub, DVI, or DisplayPort) and 1 Video Source

(Composite, Component or HDMI).
