When you replace the processor during reassembly, be sure to attach it to the connector.
LCD Removal
NOTICE: Only a certified service technician should perform repairs on your
computer. Damage or inoperability due to servicing not authorized by Dell is
not covered by your warranty.

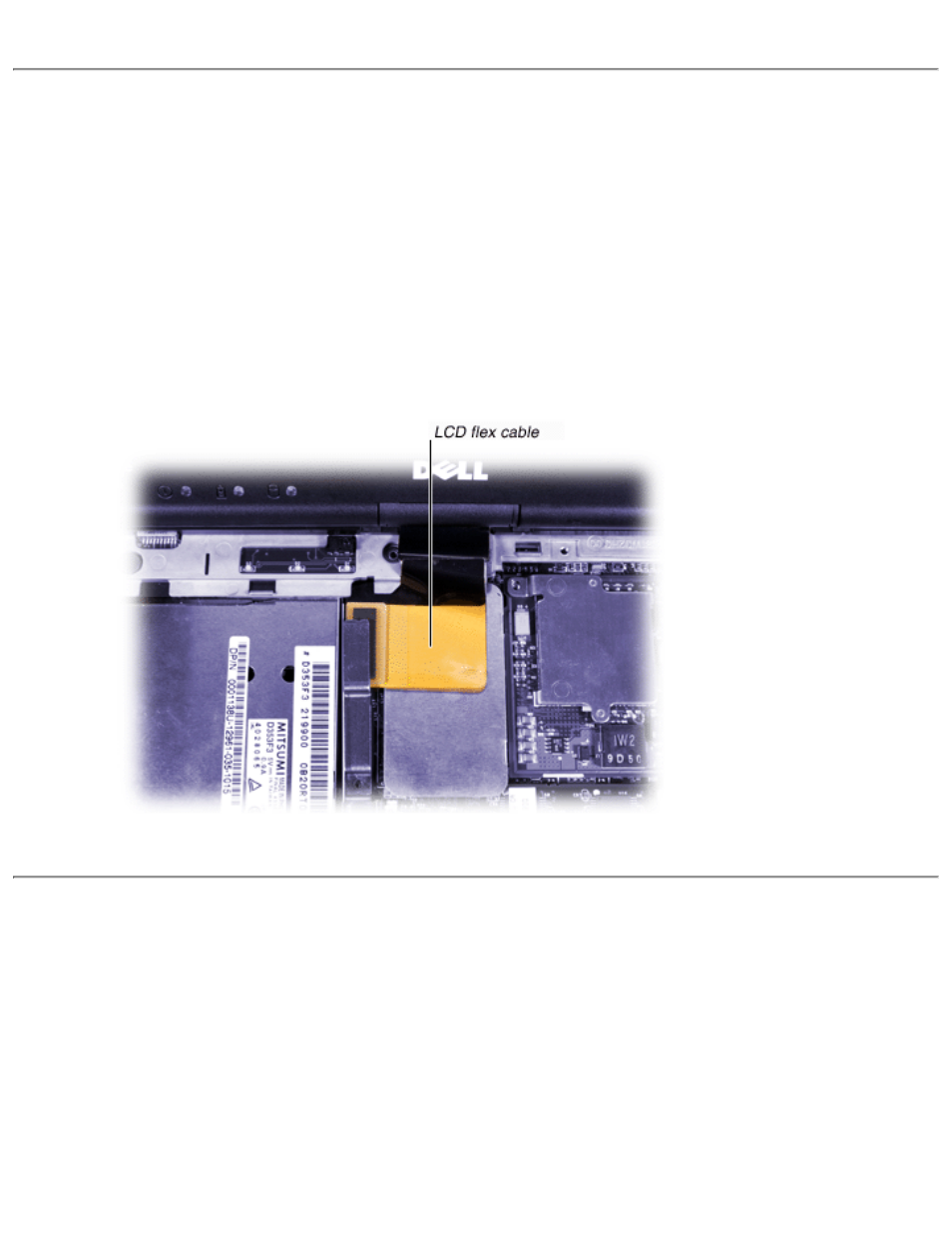

Open the display and disconnect the LCD flex cable. 1.
Close the display and remove the four LCD hinge screws. 2.
NOTICE: Route the cable under the cable clip on computers that have
extended cable clips so that the LCD flex cable will stay connected to the
system board.
Video Board Removal
NOTICE: Only a certified service technician should perform repairs on your
computer. Damage or inoperability due to servicing not authorized by Dell is
not covered by your warranty.
Remove the screw. 1.
Disconnect the touch pad cable. 2.
