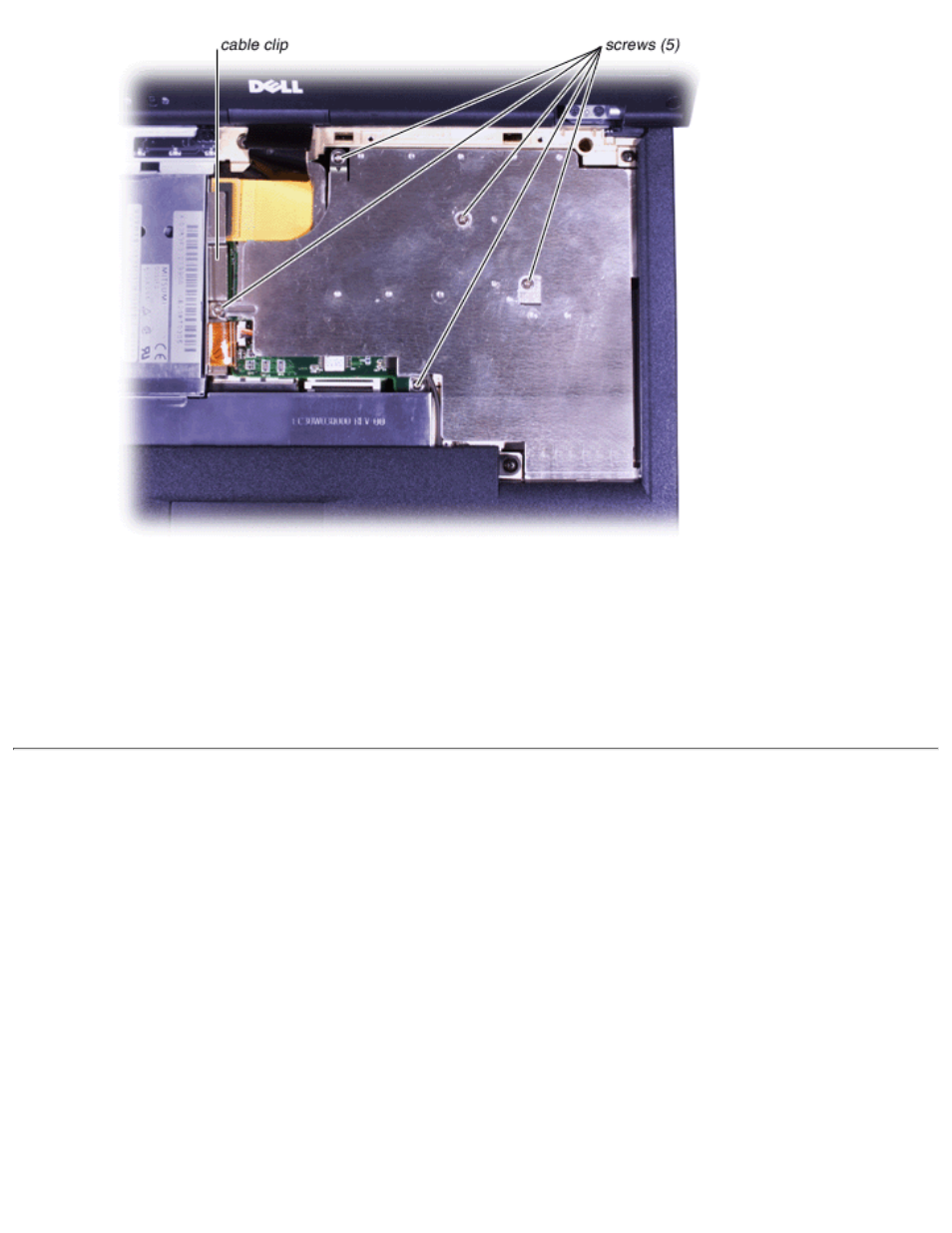

Remove the diskette-drive cable clip (held in place by the leftmost thermal shield screw). 2.
Lift off the thermal shield. 3.
NOTICE: Be sure to replace the diskette-drive cable clip (held in place by
the leftmost thermal shield screw) when you replace the thermal shield.
Failure to do so may cause the connector to become disengaged as a result of
shock or vibration to the computer.
Processor Module Removal
NOTICE: Only a certified service technician should perform repairs on your
computer. Damage or inoperability due to servicing not authorized by Dell is
not covered by your warranty.
Remove the processor module screws. Inspiron 5000 computers have 3 screws (first photo), and Inspiron 5000e
computers have 2 screws (second photo). 1.
