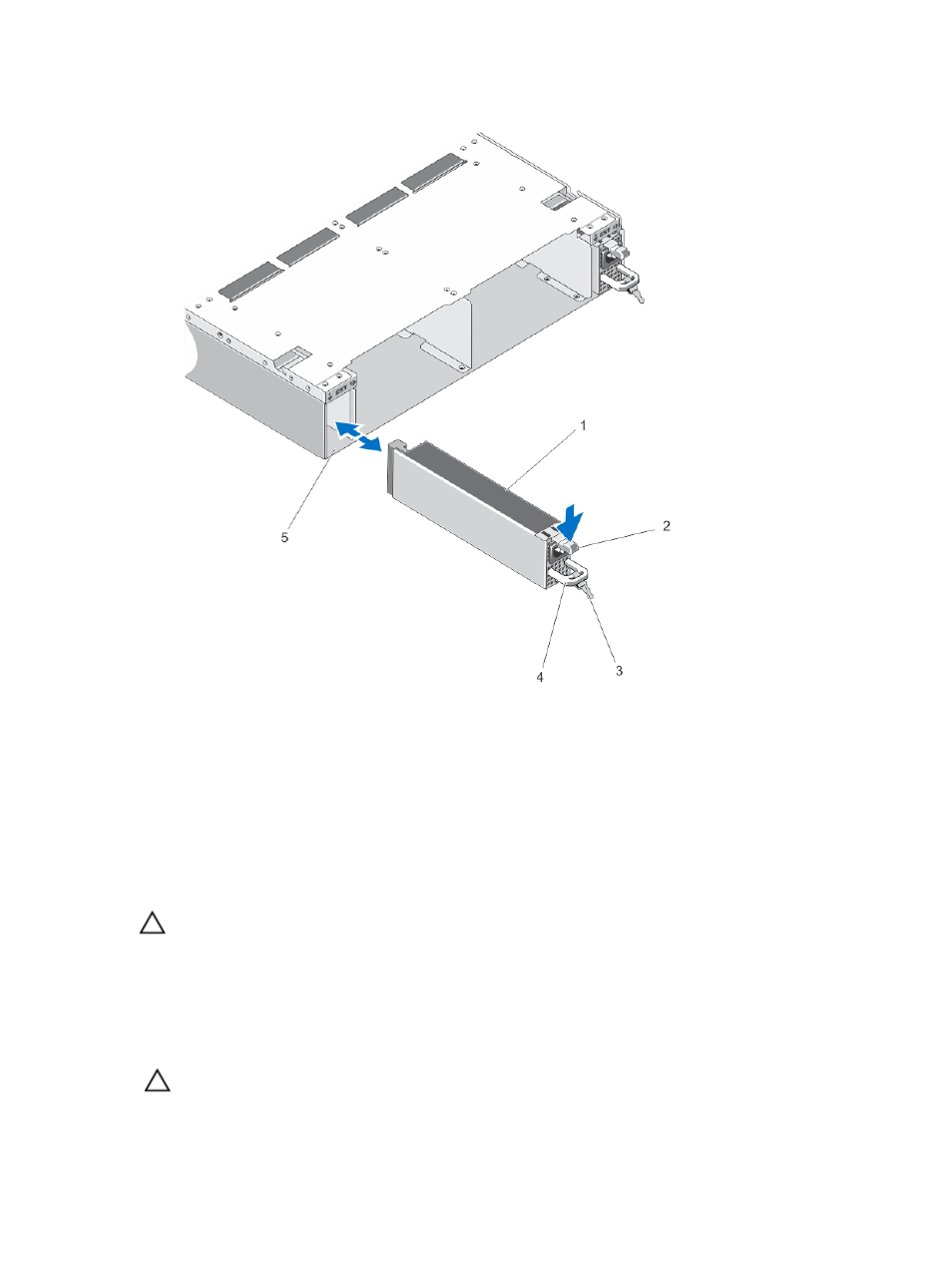

Figure 11. Removing and Installing an AC Power Supply
1. power supply
2. release latch
3. cable securing strap
4. power supply handle
5. power supply unit slot in NAS appliance chassis
Installing A Power Supply
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your
warranty. Read and follow the safety instructions that came with the product.
1. Slide the new power supply into the chassis until the power supply is fully seated and the release latch snaps into
place.
2. Connect the power cable to the power supply and plug the cable into a power outlet.
CAUTION: When connecting the power cable, secure the cable with the strap.
