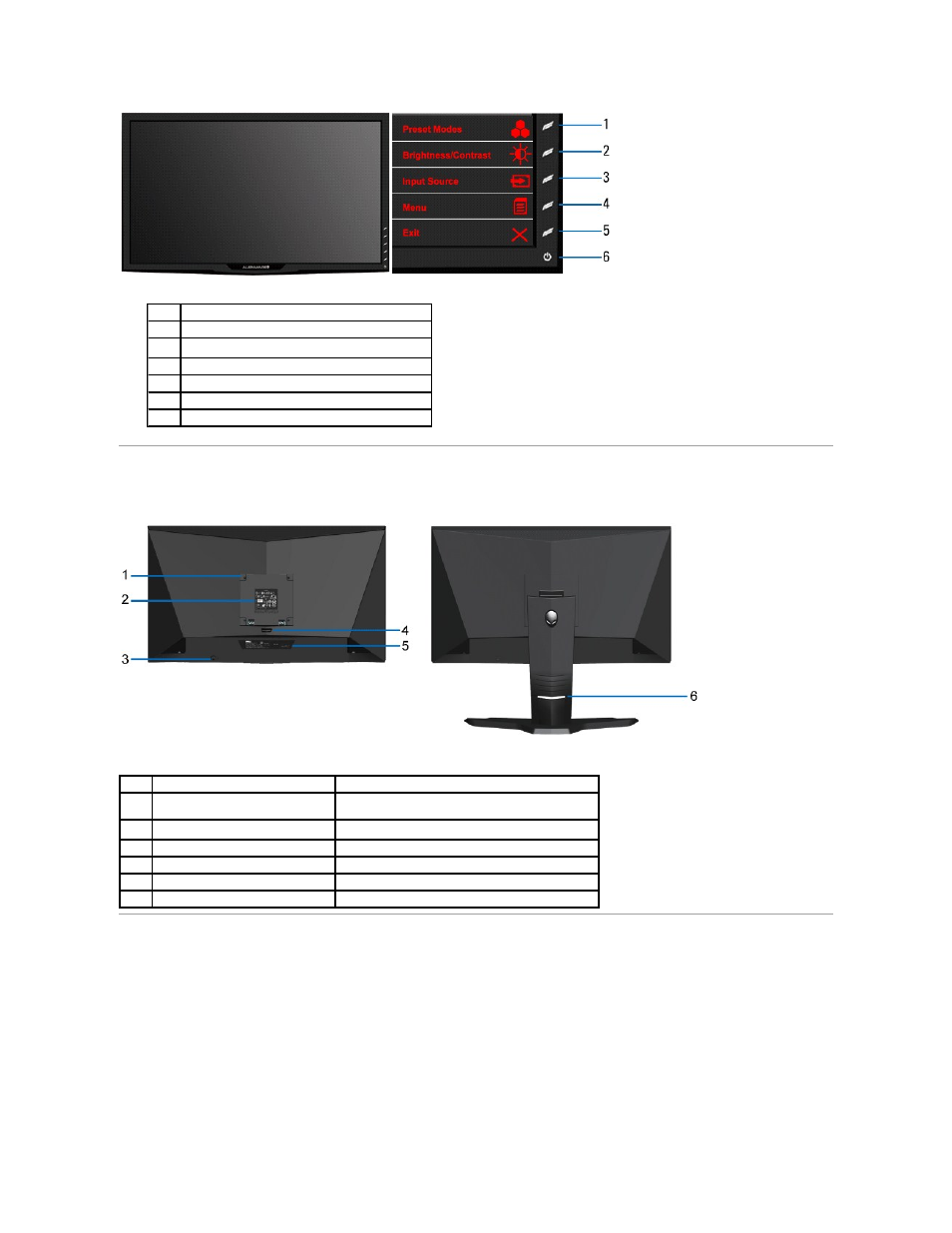

Back View





Side View



Front View

Front Panel Controls

Label Description

1

Shortcut key 1 (Preset Modes)

2

Shortcut key 2 (Brightness/Contrast)

3

Shortcut key 3 (Input Source)

4

Menu

5

Exit

6

Power On/Off

Back View

Back View with Monitor Stand

Label Description

Use

1

VESA mounting holes (100 mm)
(behind attached base plate)

To mount the monitor.


2

Regulatory rating label

Lists the regulatory approvals.

3

Security lock slot

To help secure your monitor.

4

Stand release button

To release the stand from the monitor.

5

Barcode serial number label

To contact Dell for technical support.

6

Cable management slot

To organize cables by placing them through the slot.
