(Screw dimension: M4 x 10mm).
See the instructions that came with the VESA compatible base mounting kit.
1. Place the monitor panel on a soft cloth or cushion on a stable flat table.
2. Remove the stand.

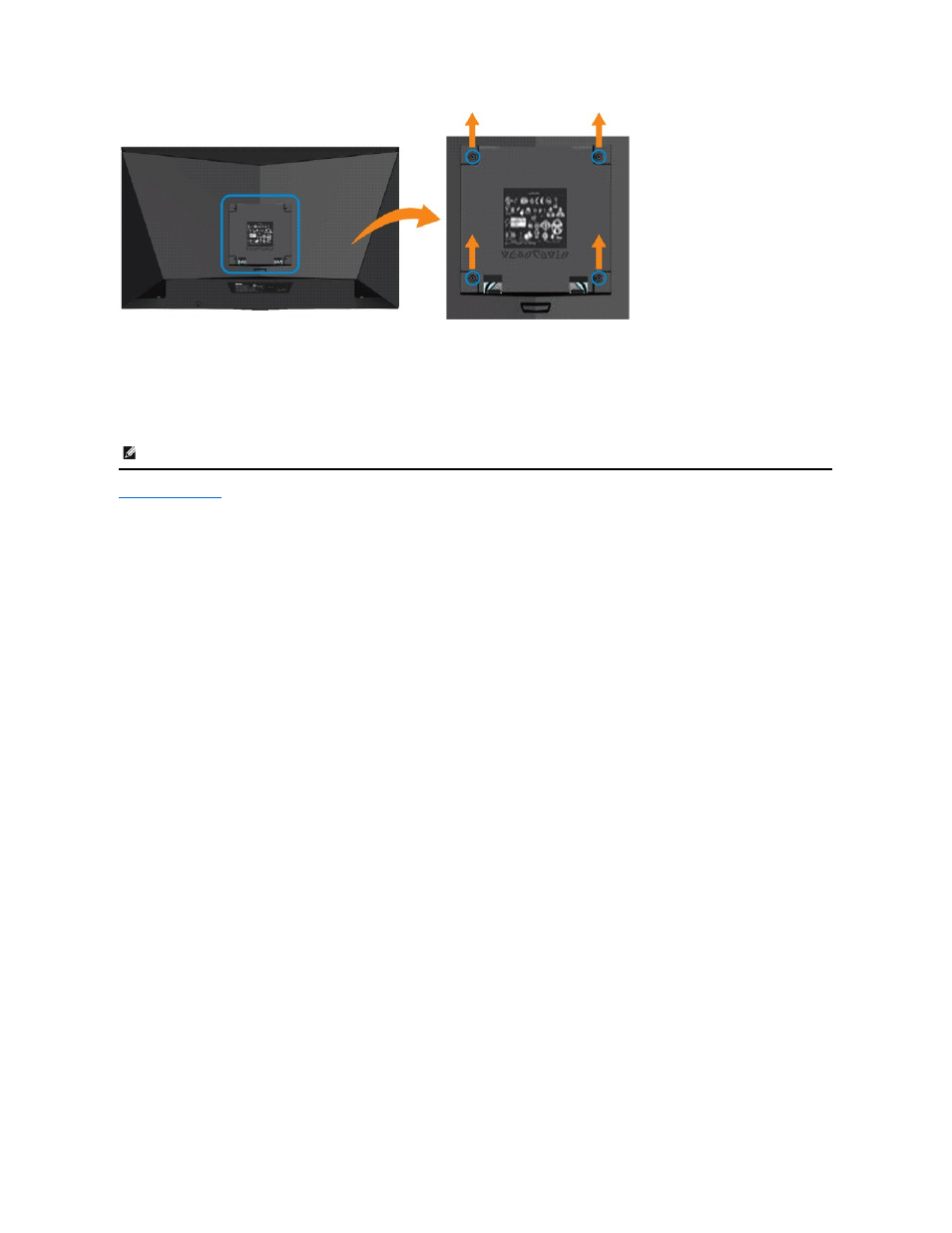

3. Remove the four screws securing the plastic cover using a screwdriver.
4. Attach the mounting bracket from the wall mounting kit to the monitor.
5. Mount the monitor on the wall by following the instructions that came with the base mounting kit.
Back to Contents Page
NOTE: Wall mounting should be done only with UL Listed Wall Mount Bracket with minimum weight/load bearing capacity of 5.21 kg.
