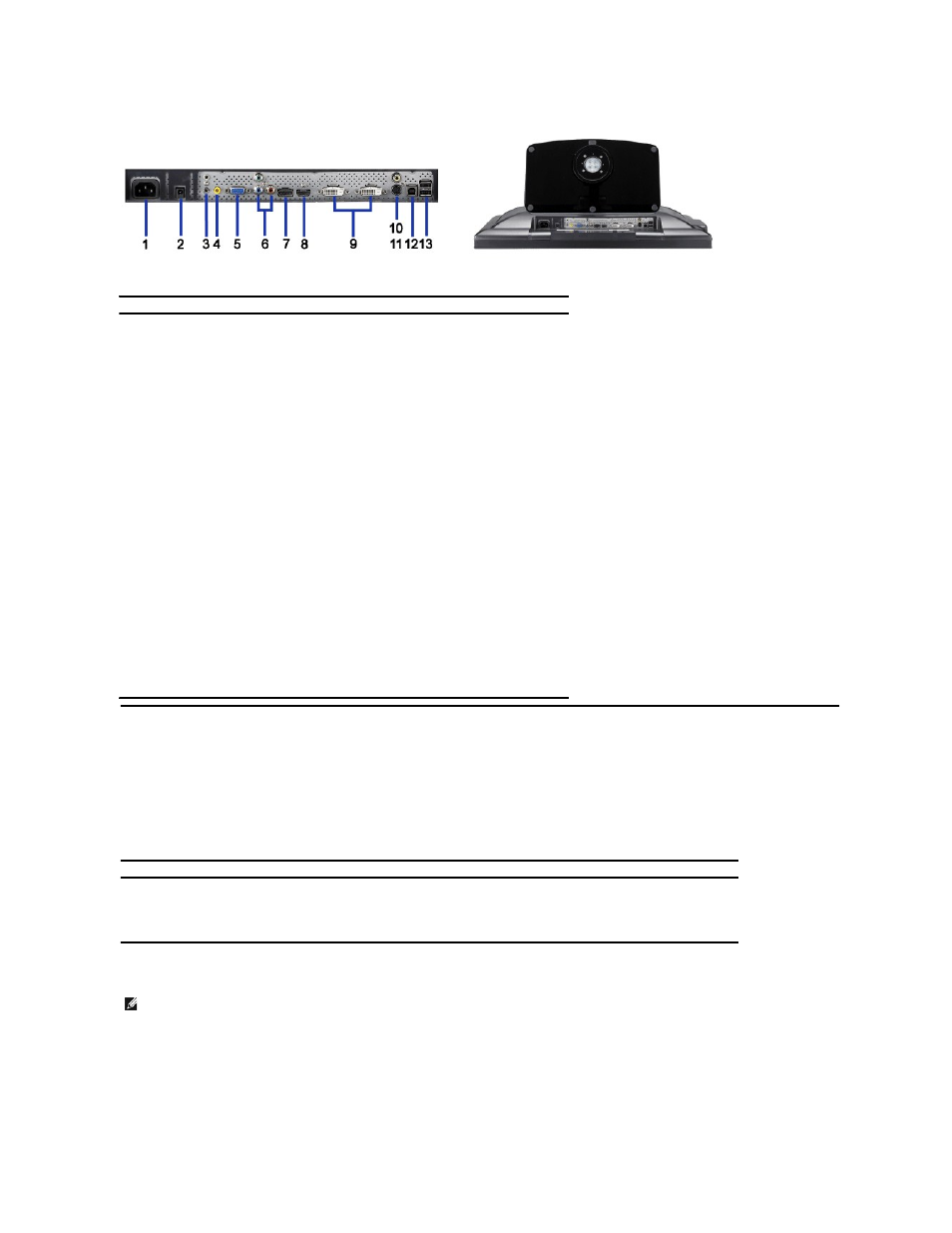

Bottom View
Bottom view Bottom view with monitor stand
Label Description Use
1 AC power cord connector Connect the power cord to wall outlet.
2
DC power connector for Dell
Soundbar
Connect the power cord for the Soundbar (optional).
3 Audio connectors
Connect the HDMI 2.0 channel or 5.1 channel audio
output devices.
Connect the front left/right channel output to the green
connector. Use this connector for 2.0/2.1 channel audio
connection.
Connect the rear left/right channel output to the black
connector. Use this connector for 5.1 channel audio
connection.
4 Audio connector
Connect the center/subwoofer channel output to the
yellow connector. Use this connector for 5.1 channel
audio connection.
5 VGA connector
Connect the VGA cable from your computer to the
monitor.
6 Component video connectors
Connect devices such as a DVD player, set-top box, or
cable TV box.
7 DisplayPort connector
Connect the DisplayPort cable from your computer to
the monitor.
8 HDMI connector Connect devices such as a DVD player or set-top box.
9 DVI connectors
Connect the DVI cable from your computer to the
monitor.
10 Composite video connector Use this to connect devices such as VCR or DVD player.
11 S-Video connector
Use this to connect devices such as a video game
system, a digital camera, or a DVD player.
12 USB upstream port
Connect the USB cable that came with your monitor to
the monitor and the computer. Once this cable is
connected you can use the USB connectors on the side
and bottom of the monitor.
13 USB downstream ports Connect your USB devices.
Monitor Specifications
The following sections give you information about the various power management modes and pin assignments for various connectors for your monitor.
Power Management Modes
If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as
Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling
of this automatic power saving feature:
The OSD will only function in the normal operation mode. When the menu or plus buttons are pressed in Active-off mode, one of the following messages will be displayed:
Analog Input In Power Save Mode. Press Computer Power Button or Any Key on Keyboard or Move Mouse
OR
Digital Input In Power Save Mode. Press Computer Power Button or Any Key on Keyboard or Move Mouse
Activate the computer and the monitor to gain access to the OSD.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal operation (with Dell Soundbar and USB active) Active Active Active Blue 250 W (maximum)
Normal operation Active Active Active Blue 163 W (typical)
Active-off mode Inactive Inactive Blanked Amber Less than 2 W
Switch off - - - Off Less than 1 W
NOTE: While using the DisplayPort connector at 230v/50Hz, the DisplayPort consumes approximately 0.25W more than the VGA or DVI-D while in sleep mode.
