59 UPS Maintenance |
3 Remove the UPS front cover (see Figure 23).

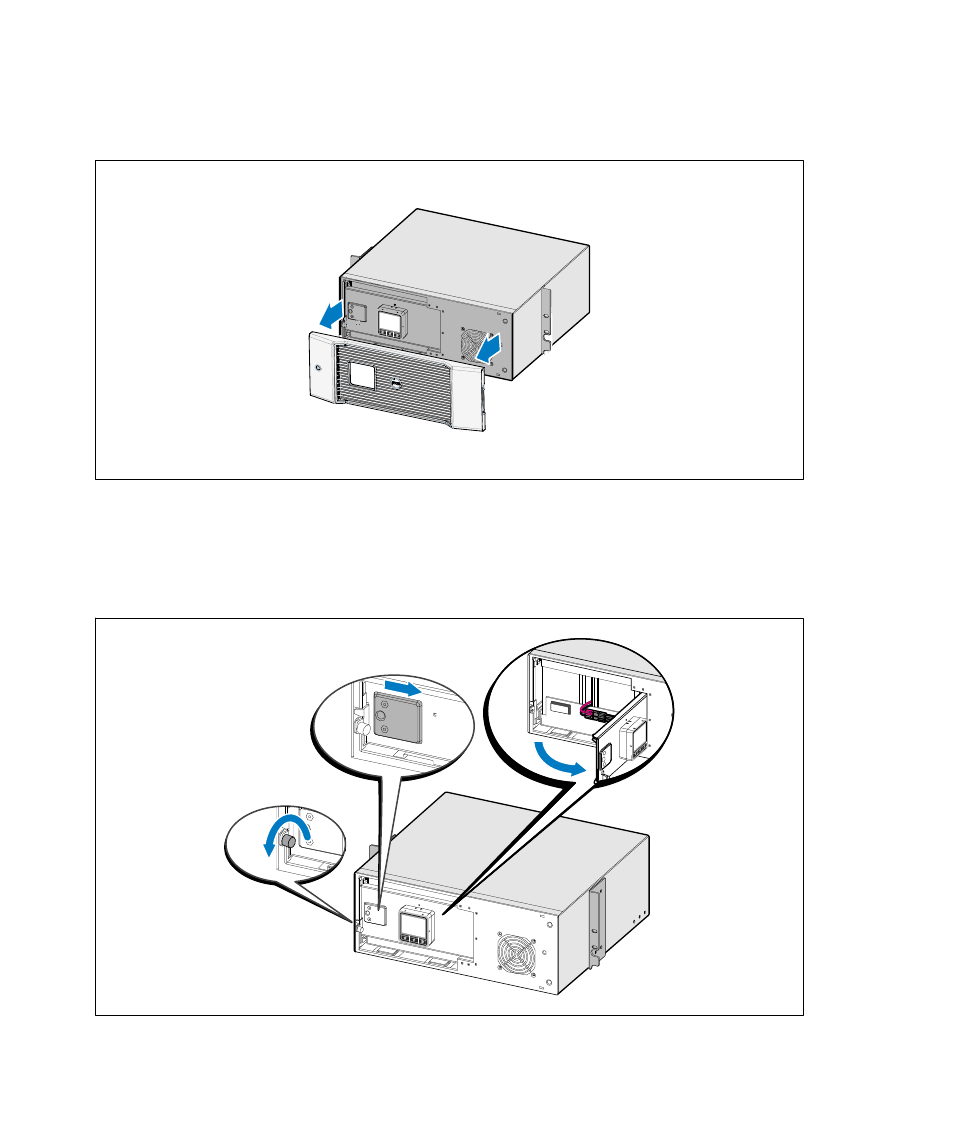

Figure 23. Removing the UPS Front Cover
4 Open the metal battery cover.
Loosen the thumbscrew on the metal battery cover, slide the cover to the right, and open (see
Figure 24).
Figure 24. Opening the Metal Battery Cover
