Dell UPS 2700R User Manual
Page 25
25
Installation
|
2
Install the battery connector cover under the EBM cable to provide strain relief (see Figure 16).
Rotate the battery connector cover on its side and position under the EBM cable.

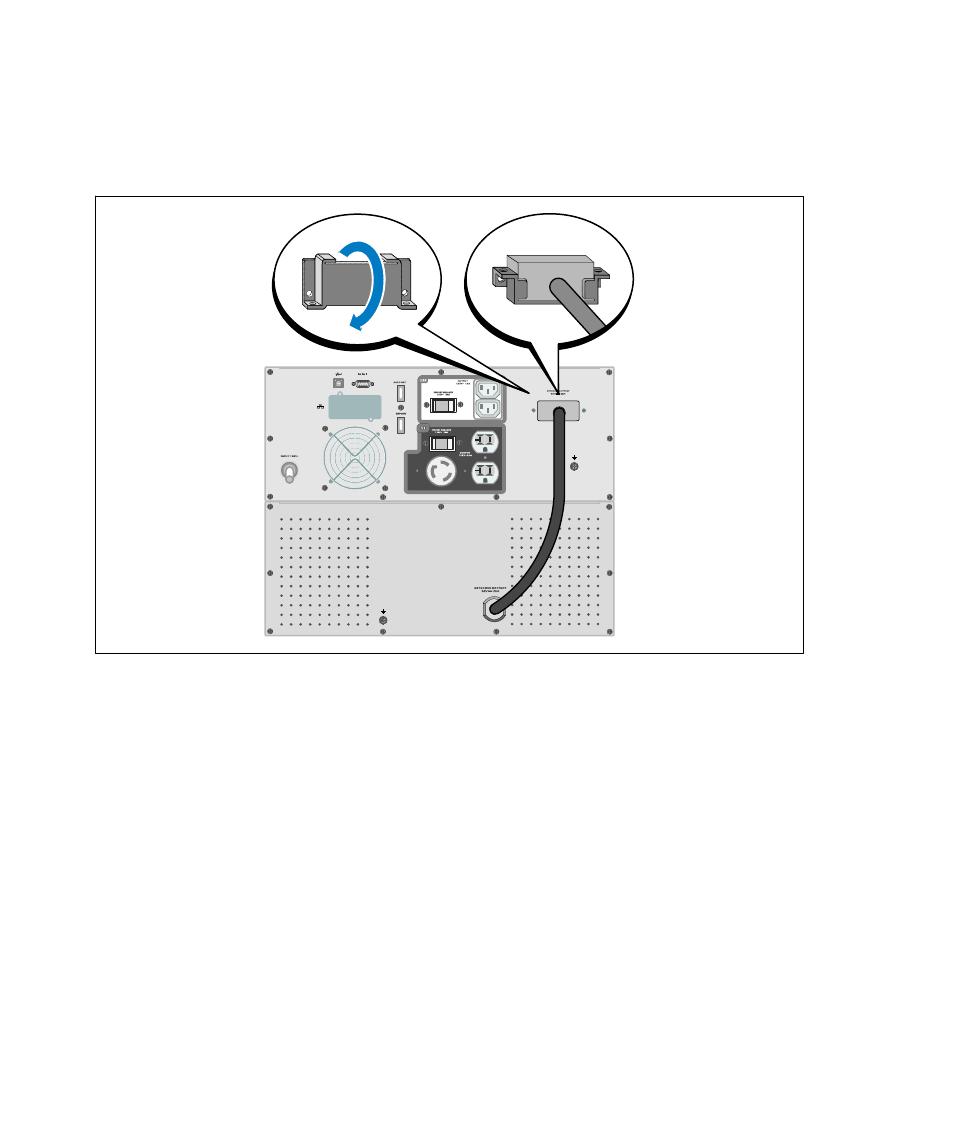

Figure 16. Installing the Strain Relief Bracket
