6
Power Supply Upgrade Installation Guide
www
.dell.com | support.dell.com
Installing the Power Distribution Board
1 Position the PDB so that the four slots on the underside of the PDB are aligned with the
corresponding retention pins on the chassis, and the right edge of the PDB is aligned with
with the two guides on the chassis. See Figure 1-3.

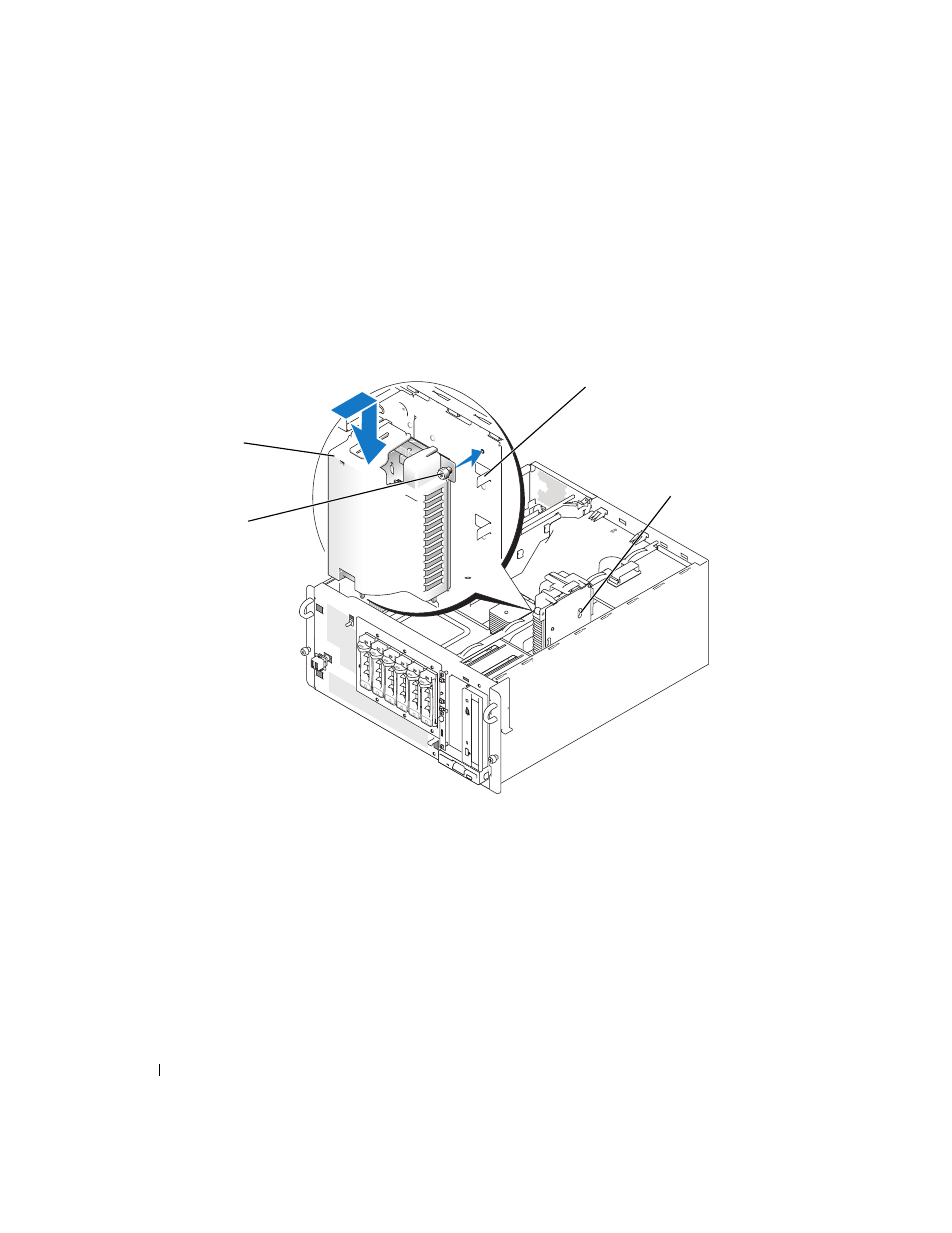

Figure 1-3. Installing the Power Distribution Board
2 When the PDB is correctly aligned, place the PDB over the retention pins on the chassis and
slide the PDB downwards slightly. See Figure 1-3.
3 Tighten the captive screw to secure the PDB. See Figure 1-3.
4 Connect the following cables to the system board. See Figure 1-4.
– Connect the 24-pin connector to connector P1.
– Connect the 8-pin connector to connector P2.
– Connect the ribbon cable to connector PDB.
captive
screw
power
distribution
board
guides (2)
slots (4)
