Installing the Redundant Power Supplies

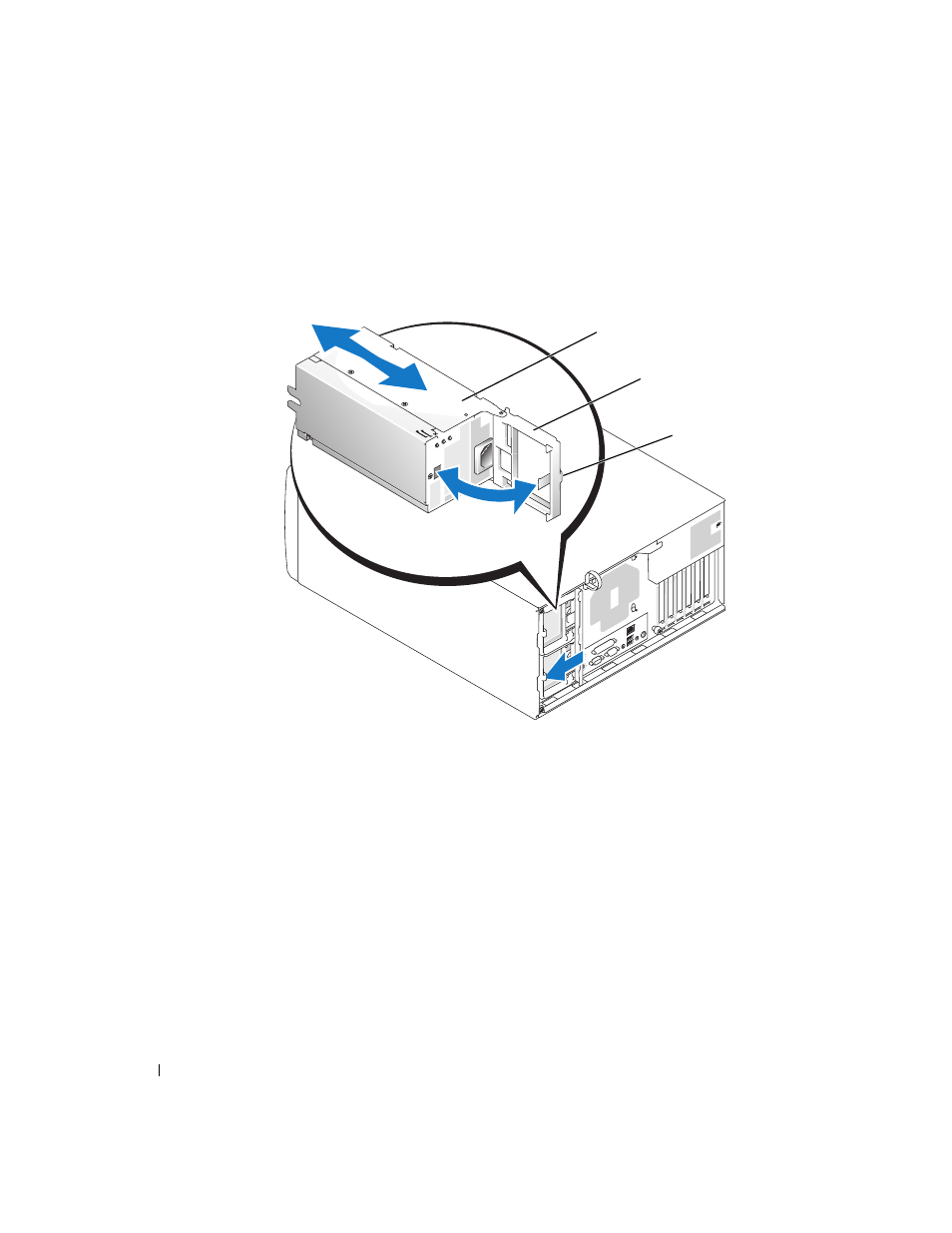

Figure 1-5. Installing a Redundant Power Supply
10 Slide the first power supply into the chassis. See Figure 1-5.
11 When the power supply is fully inserted, rotate the power supply handle inward to lock the
power supply in place. See Figure 1-5.
The power supply does not function until the handle is fully closed.
12 Repeat step 10 and step 11 to install the second power supply.
13 Plug the power cables into the power supplies, ensuring that each cable passes through the
power cable strain relief loop.
14 Connect each power cable to a power source, and turn on the system, including any attached
peripherals.
power supply
power supply handle
spring tab
