Dell POWERVAULT MD1000 User Manual
Page 10
10

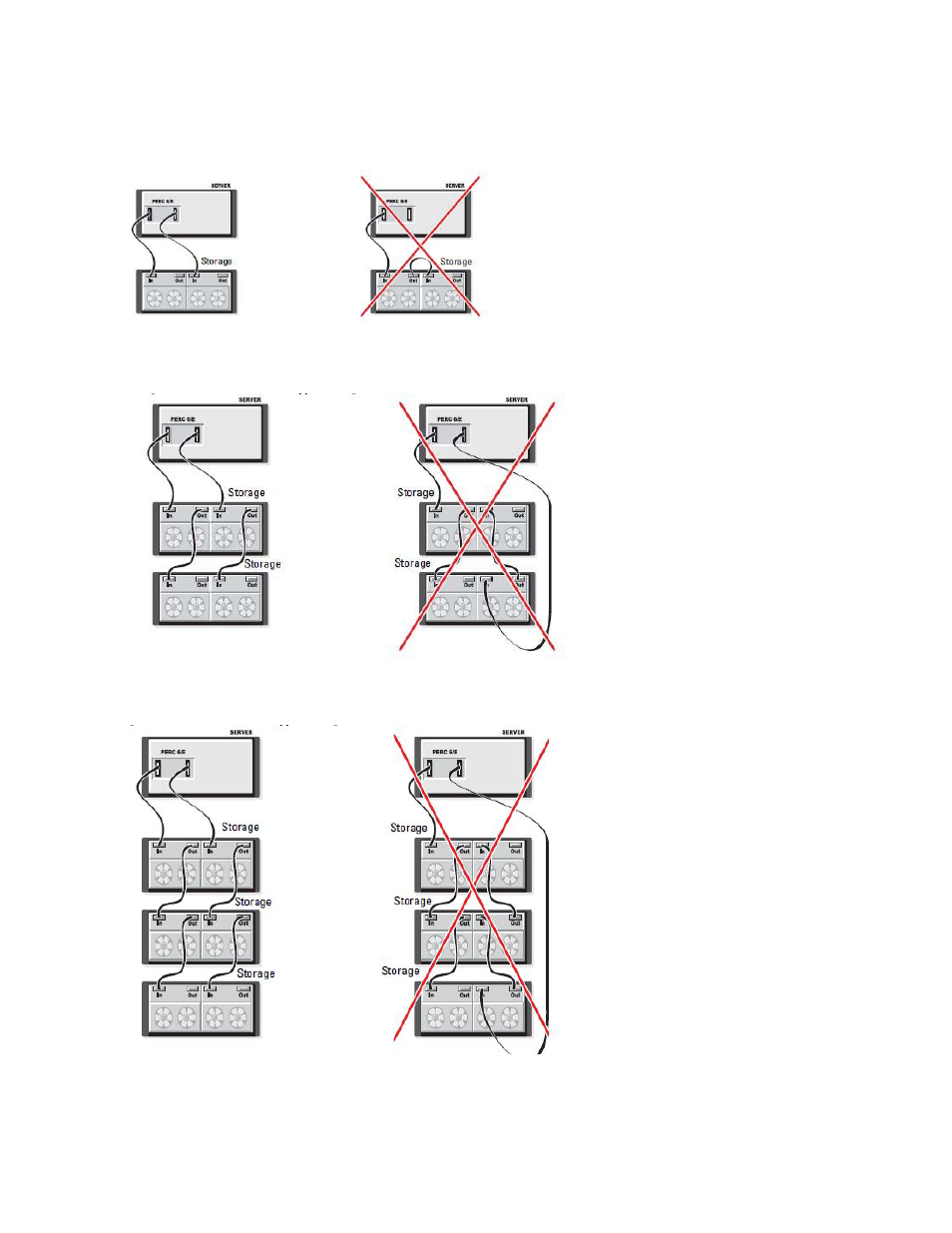

Figure 3. Redundant Path with 1 Enclosure
Supported Configuration/Setup Unsupported Configuration/Setup
Figure 4. Redundant Path with 2 Enclosures
Supported Configuration/Setup
Unsupported Configuration/Setup
Figure 5. Redundant Path with 3 Enclosures
Supported Configuration/Setup
Unsupported Configuration/Setup
