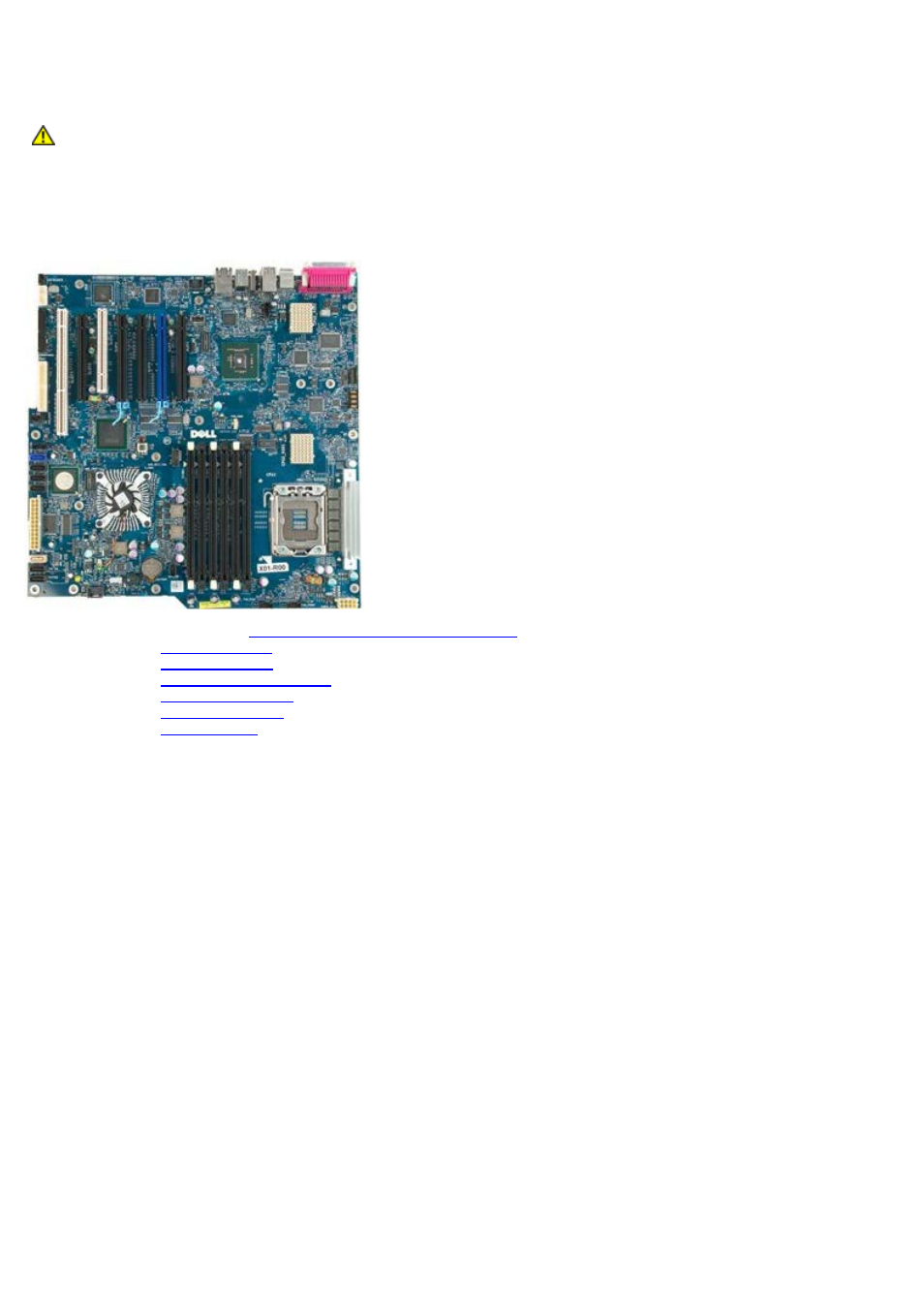

System Board
Dell Precision™ T7500 Service Manual
WARNING: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage
at www.dell.com/regulatory_compliance.
Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the computer cover .
3. Remove the memory shroud .
4. Remove the heat sink and processor .
5. Remove the front fan assembly .
6. Remove the memory modules .
7. Remove the processor fan .
