AGP Card Brace

Dell™ OptiPlex™ GX400 Service Manual

Removing the AGP Card Brace

Removing the AGP Card Brace

To access some components on the board, you may need to remove the AGP card brace.

1. Turn off the computer and devices, disconnect them from their electrical outlets, wait at least 5 seconds, and then

remove the computer cover

2. Remove the screw that secures the AGP card brace to the chassis.

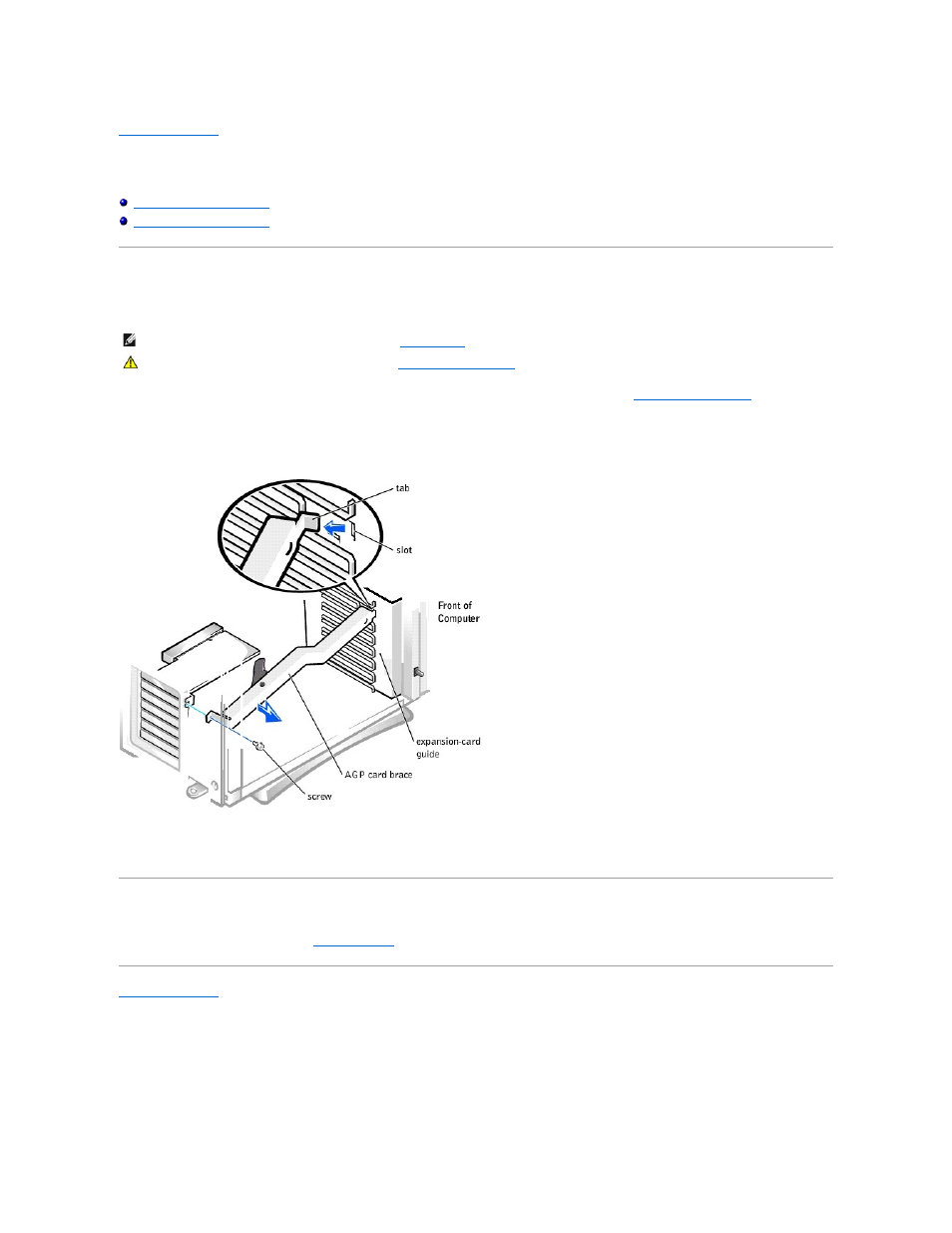

Removing the AGP Card Brace

3. Rotate the brace up until the tab disengages from the card guide at the front of the chassis. Then lift the brace away from the chassis.

Replacing the AGP Card Brace

To replace the AGP card brace, perform the

in reverse.

Back to Contents Page

NOTE:

Your computer has either an AGP card brace or an

AGP card clip

CAUTION:

Before you perform this procedure, see "

Precautionary Measures
