2 Dell Inspiron 3700 System Advanced Port Replicator User’s Guide

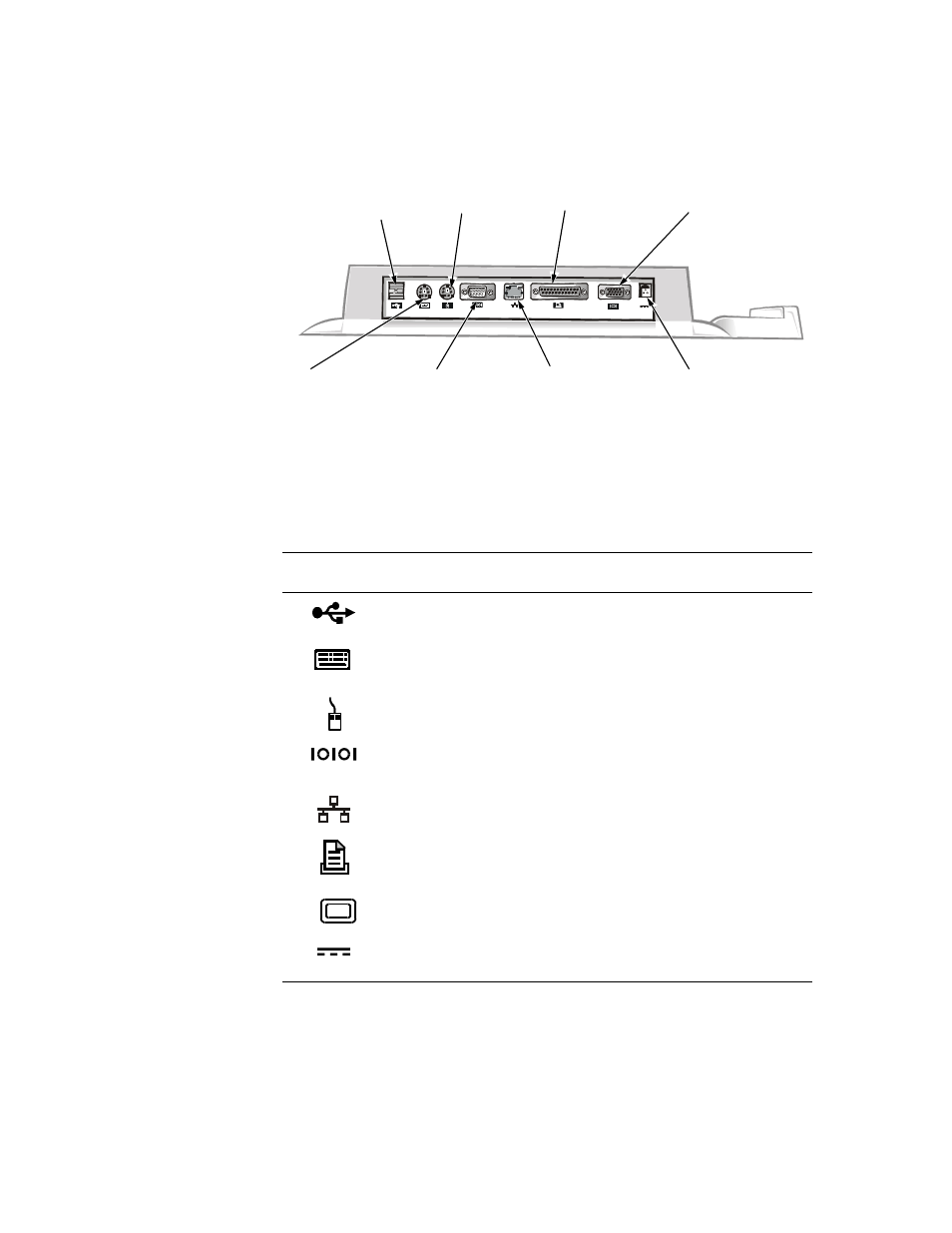

Table 1 shows the icons for each of the connectors on the back of the APR and indi-
cates the type of external device(s) that you can attach to each connector.
One or two USB devices, such as a USB mouse, connect to the
dual USB connector.
An external PS/2-style keyboard or external numeric keypad con-
nects to the PS/2 keyboard connector.
An external PS/2-compatible mouse connects to the PS/2 mouse
connector.
A serial device, such as a serial mouse or external modem, con-
nects to the serial port connector.
A network interface cable connects to the NIC connector.
A parallel device, such as a printer, connects to the parallel port
connector.
An external monitor connects to the video connector.
The AC adapter that came with the APR connects to the AC adapter
connector.
NOTE: For the full name of an abbreviation or acronym used in this table, see the Glossary in the
system Help.
keyboard
connector
serial port
connector
USB
connectors (2)
parallel port
connector
NIC connector
video
connector mouse
connector
AC adapter
connector
