Display bezel – Dell Precision M90 User Manual
Page 22
2.
Align the display assembly over the screw holes in the base of the computer.
3.
Replace the four M2.5 x 5-mm screws.
4.
Connect the display cable to the system board.
5.
Reroute the display cable into the cable channel.
6.
Replace the hinge cover (see
Replacing the Hinge Cover
).
7.
If a Mini-Card is installed, connect the antenna cables to the card (see
Mini-Card
). If one is not installed, tuck the antenna cables into their secured
location.
8.
Replace the Mini-Card cover.
Display Bezel

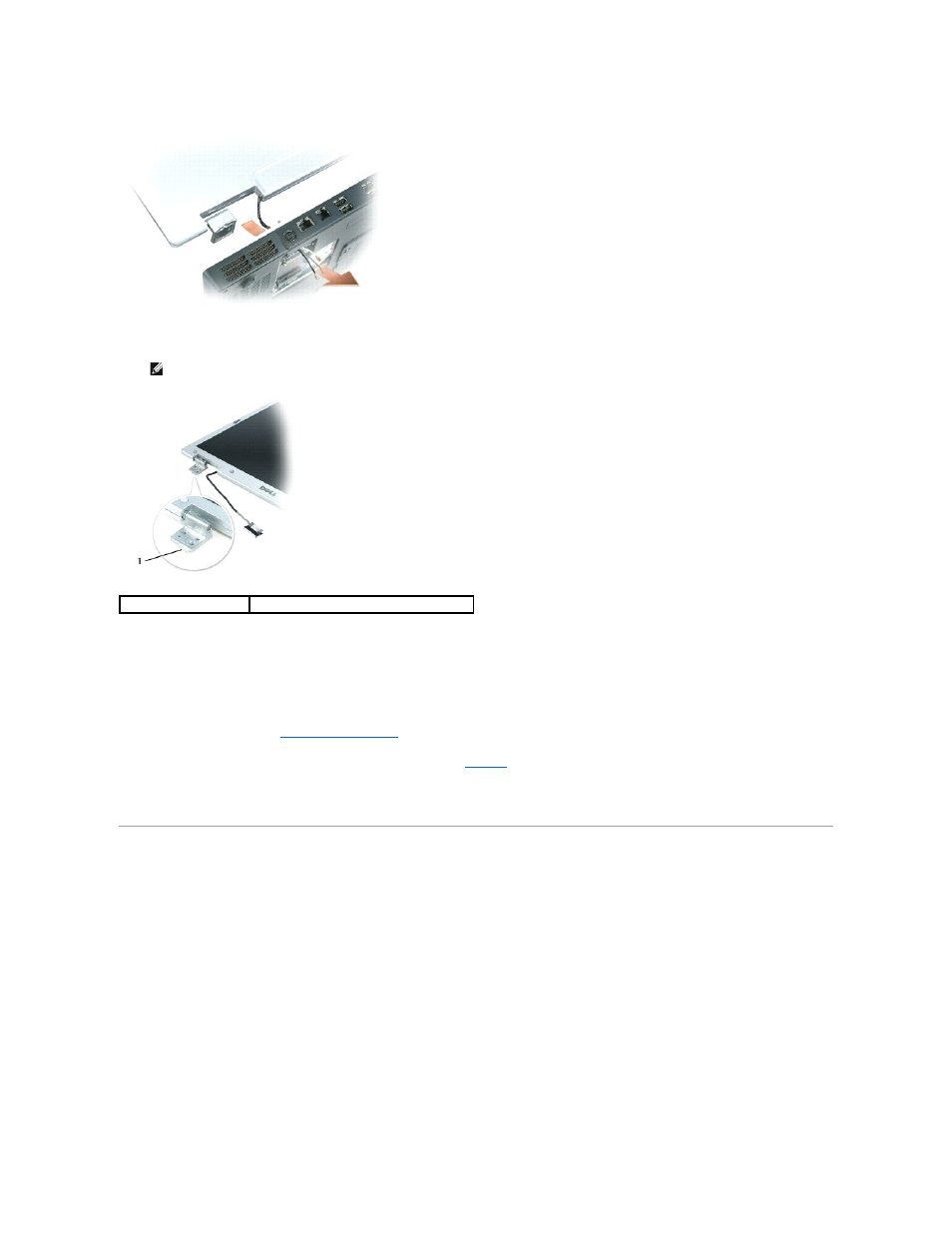

NOTE:
The left hinge assembly has a small tab that you must first insert underneath the edge of the palm rest.
1
tab
