Installing the system badge flap – Dell Precision M3800 (Late 2013) User Manual
Page 12

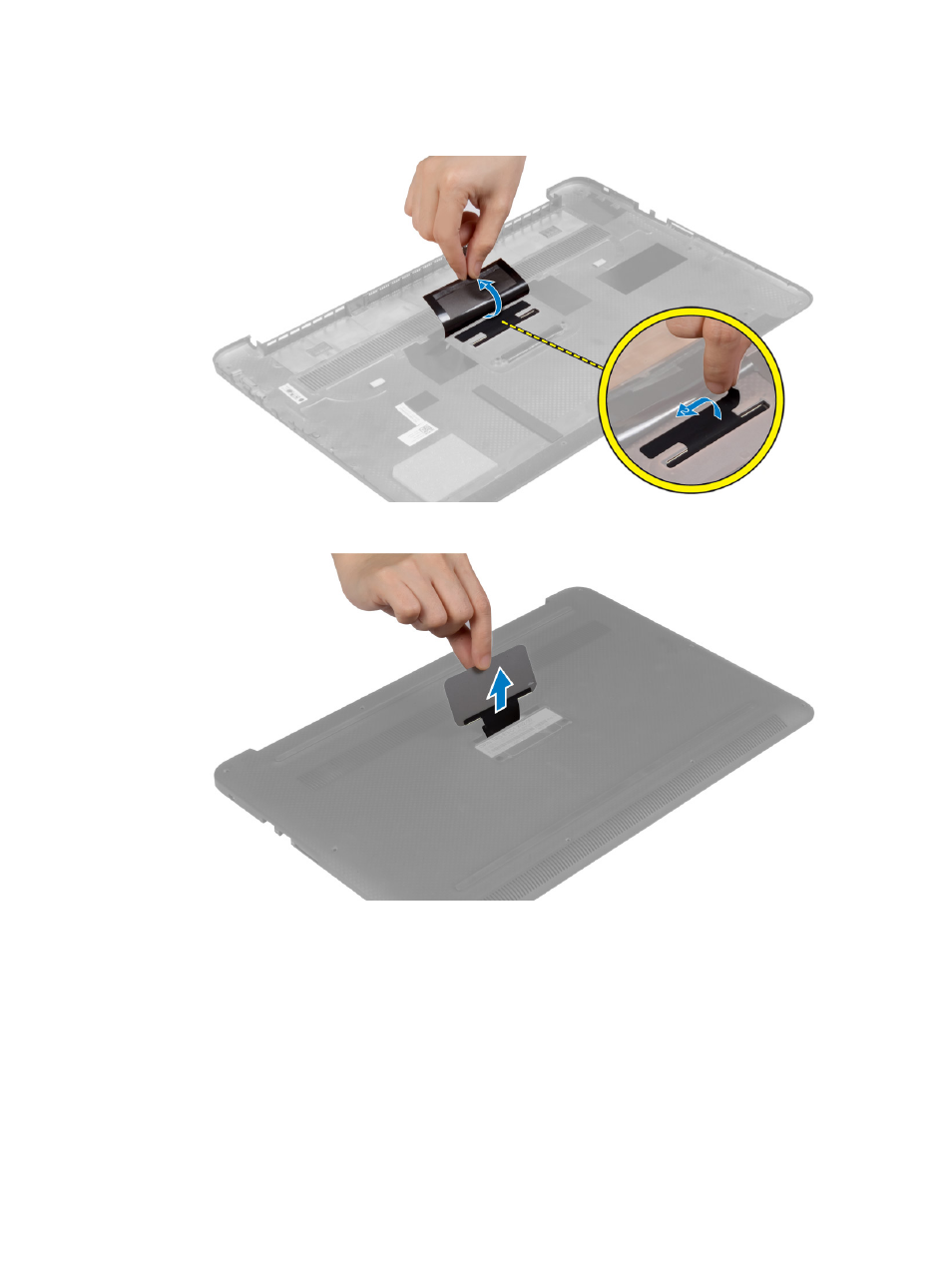

3. Turn over the base cover and peel the Mylar tape that secures the system badge flap to the base
cover.
4. Flip the base cover and release the tab on the system badge flap from the slot on the base cover. Lift
the system badge flap off the base cover.
Installing the System Badge Flap
1.
Slide the tab on the system badge flap into the slot on the base cover and snap the system badge
flap into place.
2. Turn the base cover over and affix the Mylar tape that secures the system badge flap to the base
cover.
3. Follow the procedures in After Working Inside Your Computer.
12
