Replacing the mini-card – Dell Inspiron 13z (N311z, Mid 2011) User Manual
Page 36
36
Wireless Mini-Card

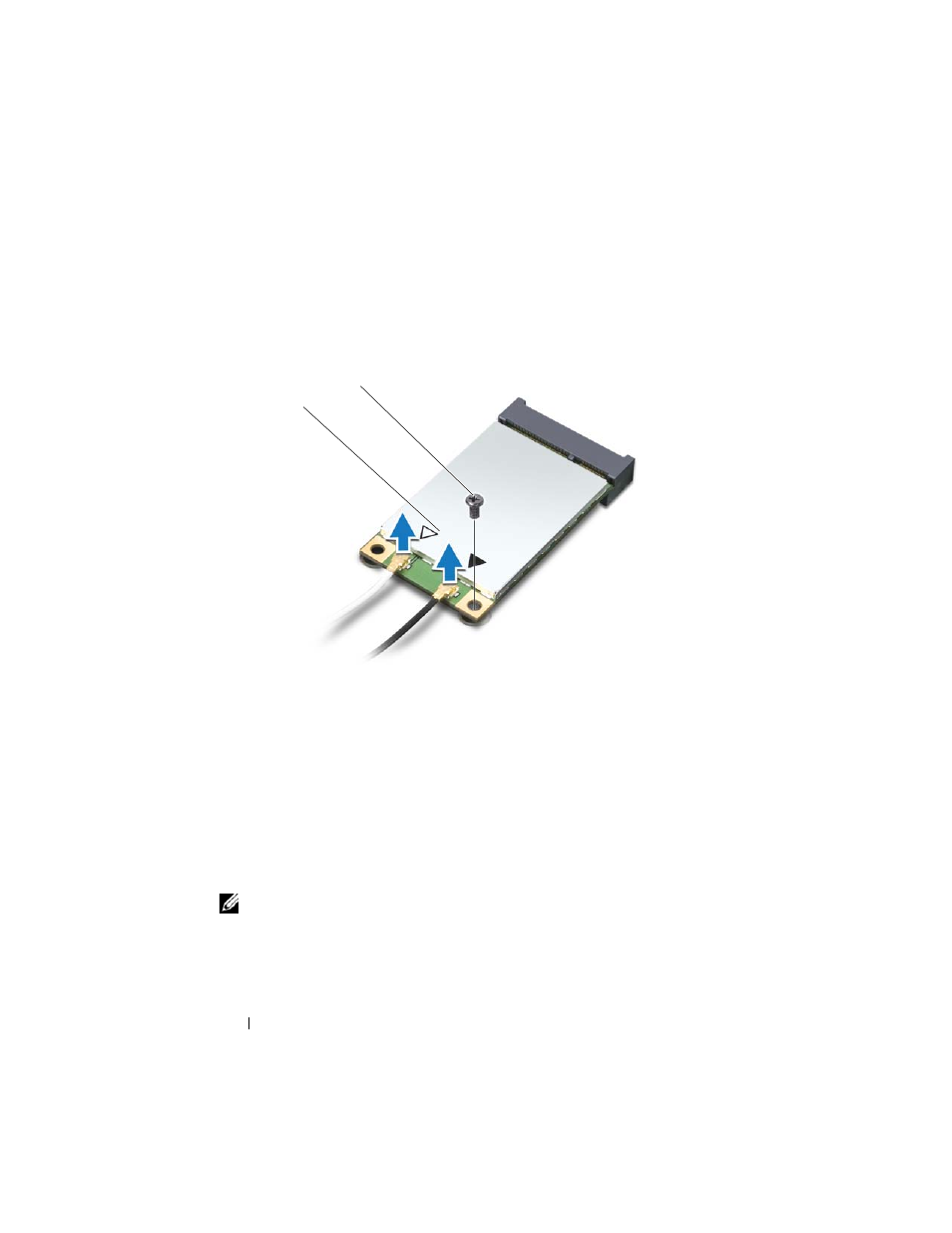

6 Disconnect the wireless antenna cables from the wireless antenna
connectors on the Mini-Card.
7 Remove the screw that secures the half Mini-Card to the system board
connector.
8 Lift the Mini-Card out of the system board connector.
Replacing the Mini-Card
1 Follow the instructions in "Before You Begin" on page 9.
NOTE:
Your computer can support either one WLAN Mini-Card or one
WLAN/Bluetooth combo card at a time.
2 Remove the Mini-Card from its packaging.
1
half Mini-Card
2
screw
2
1
