Align the right air baffle with the screw holes on the front of the sled cover.
7
Secure the right air baffle to the sled cover using the two M3 screws. Tighten the screws to
5.21 in-lbs.

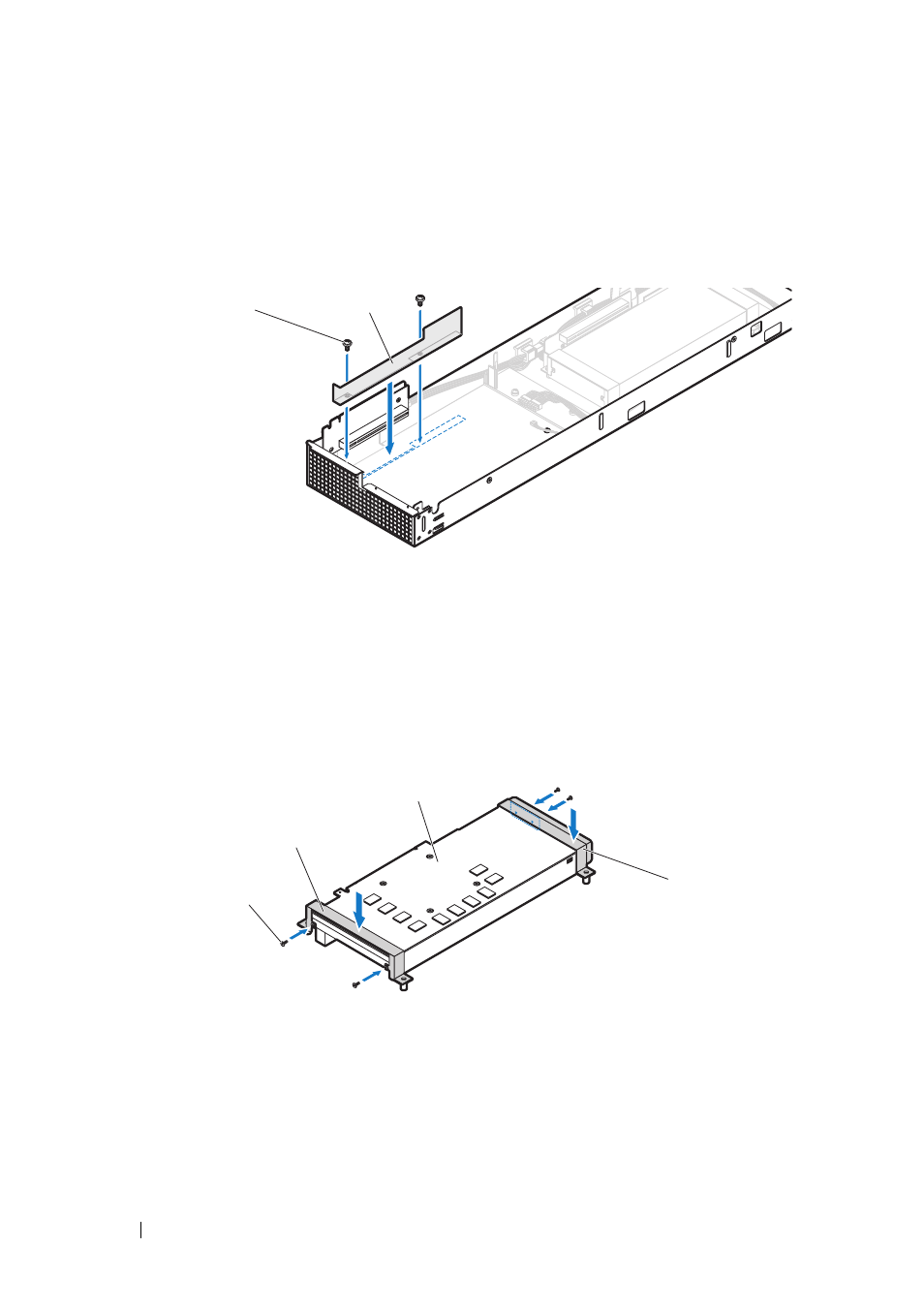

Figure 1-4. Installing the Right Air Baffle
8
Align the front mounting bracket with the screw holes on the left of the GPGPU card and
secure with two M3 screws. Tighten the screws to 5.21 in-lbs.
9
Align the back mounting bracket with the screw holes on the right of the GPGPU card and
secure with two M3 screws. Tighten the screws to 5.21 in-lbs.
Figure 1-5. Installing the Mounting Brackets
1 M3 screws (2) 2 right air baffle
1 M3 screws (4) 2 front mounting bracket
3 Tesla K20 GPGPU card 4 back mounting bracket
1 2
1
2
3
4
