13
11
Connect the power cables to the GPGPU card. Ensure the cables are properly attached.
12
Connect the emergency throttling cable to the GPGPU card.

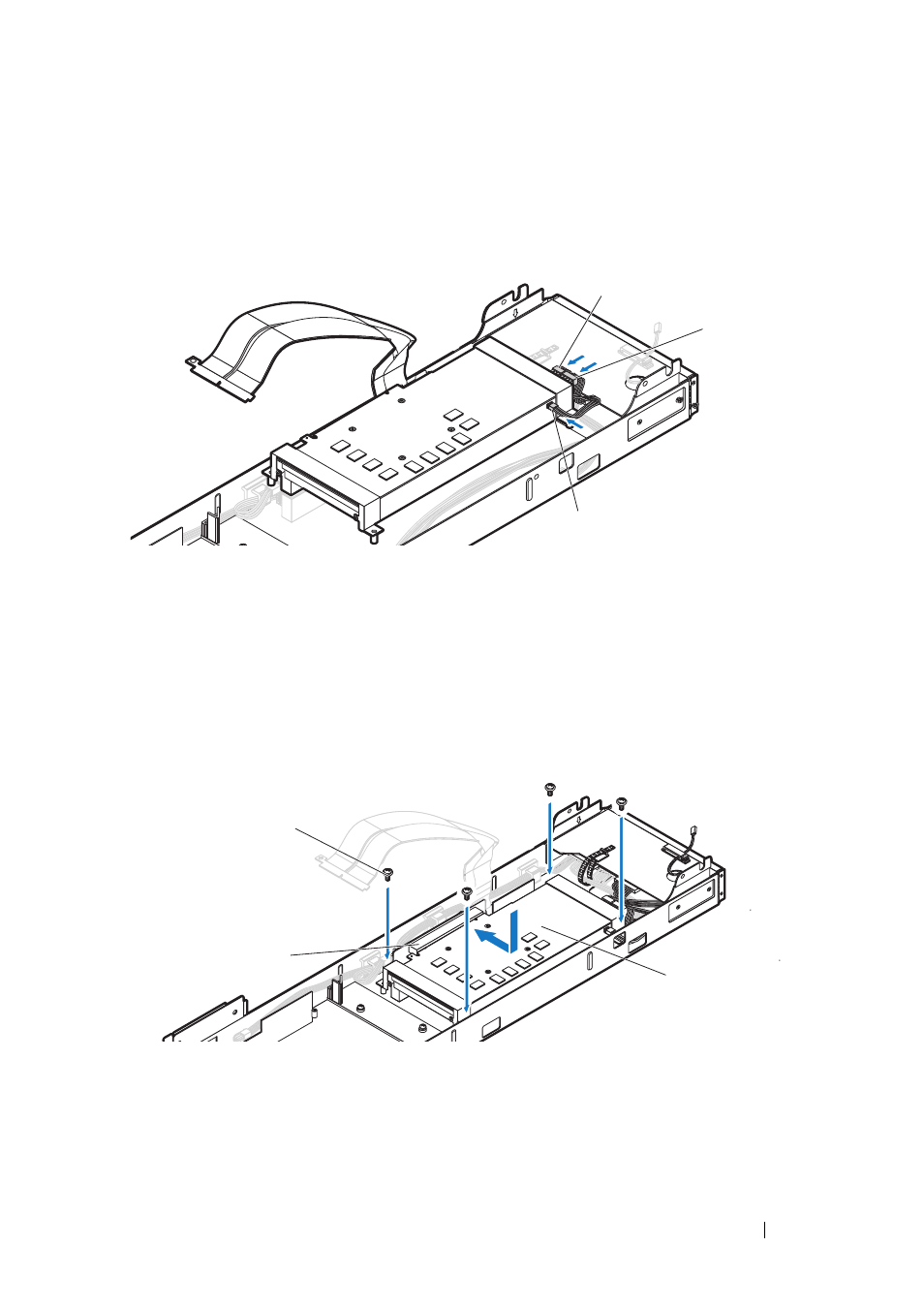

Figure 1-14. Connecting the Power and Emergency Throttling Cables
13
Align and insert the GPGPU card assembly into the back GPGPU card riser connector until
the card is fully seated.
14
Secure the GPGPU card to the back of the sled cover using the four M3 screws, working in a
clockwise sequence. Tighten the screws to 5.21 in-lb.
Figure 1-15. Installing the Back GPGPU Card Assembly
1, 2 power cables 3 emergency throttling cable
1 M3 screws (4) 2 Tesla K20 GPGPU card assembly
3 back GPGPU card riser
1
2
3
1
2
3
