Installing a SATA Optical Drive
4 Remove the cooling shroud. See "Removing the Cooling Shroud" in your
Hardware Owner’s Manual.
5 Remove the cable retention bracket from the right interior wall of the
chassis by pushing the blue release latch and sliding the bracket toward the
front of the system until the bracket detaches from the chassis slots.
6 Route the SATA cable in the cable channel in the right wall of the chassis
and replace the cable retention bracket over the cable. See Figure 1-4.
7 Route the SATA cable along the top of the cable retention bracket to the
central riser.
8 Bend the cable behind the central riser and connect the cable to the
SATA_B connector on the system board.

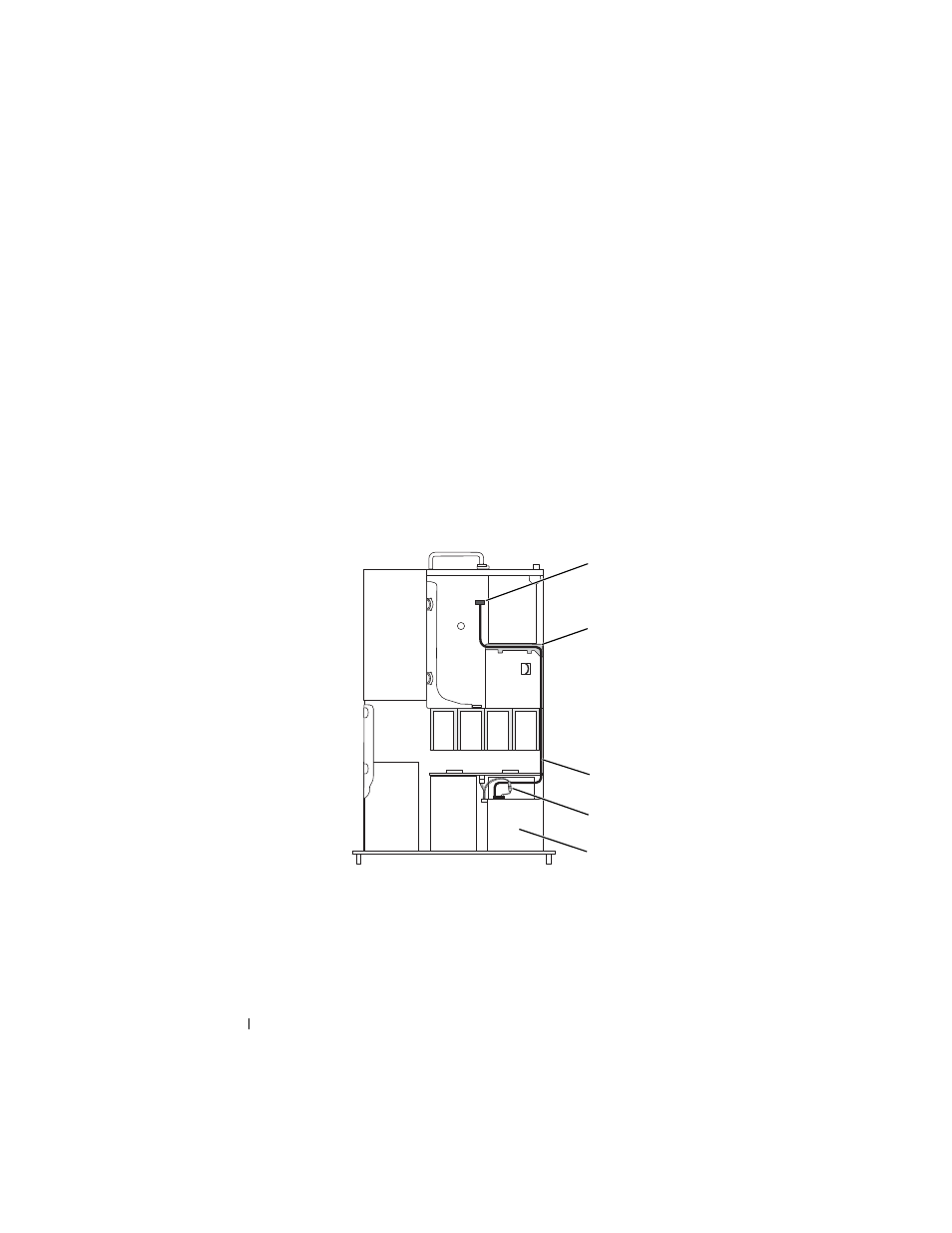

Figure 1-4. SATA Cable Routing in the PowerEdge 2950 and 2970
1 SATA_B connector on system board 2 cable retention bracket
3 SATA data cable 4 SATA power cable
5 optical drive
